21
GigaX2008EX L2 Managed Switch User Manual
4.5.5 Static Addresses
You can add a MAC address into the switch address table. The MAC address
added by this way will not age out from the address table. We call it static
address.
MAC Address: enter the MAC address
VLAN ID: enter the VLAN ID that the MAC belongs
Port Selection: select the port which the MAC belongs
Click on Add when you create a new static MAC address by the above
information. Then you will see the new added entry shows in the address
window. In one page, 15 entries can be displayed in the address window. When
you create more than 15 entries, the new added entries will display in the next
page. You can click on First, Previous, Next, or Last to go through the pages of
static MAC address, or input the page number and then click on Go. You can
remove the existed address by selecting the entry with the mouse, then clicking
on Remove. The Modify button updates the existed MAC address entries. You
can look up a static MAC addresses by input the MAC address and VLAN ID,
then click on Query. The address window will mark the result of the query. Click
OK to save effective. Click Reload to refresh the settings to current value. To
make the configuration effective, please go to save configuration page, then
click Save.

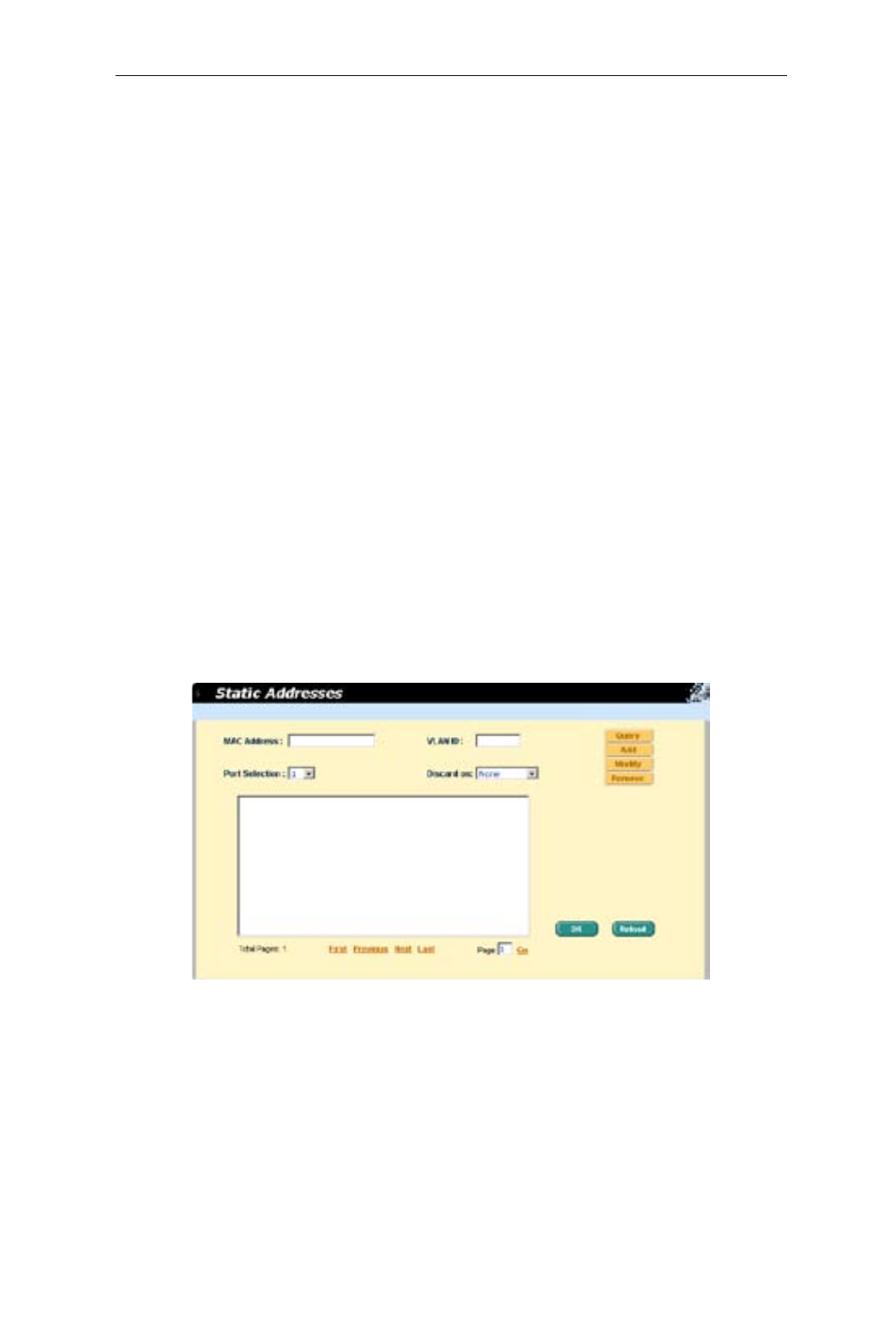

Figure 22. Static address
