Panel positions and labeling – GE Industrial Solutions BDCBB H569-445 User Manual
Page 17
Secondary DC Power Distribution Bay H569-445
Issue 3 June 2012
17
Panel Positions and Labeling
The cabinet is configured for either top or bottom cable entry. The following figures
show the default labeling orientation used for top and bottom fed BDFB’s. Load Bus
designations (A, B, C, D, etc.) are stamped on the labels and the VIM1C meter is
programmed to reflect the Load Bus designations.
Some customers require a different labeling scheme so an extra set of 850018546 labels
is included to relabel the BDFB per local customer requirements. If the Load Bus
designations change, the VIM1C meter must identify the new location.
Menu
►Load Parameters ►First Load
locates Load Bus A as upper-left, upper-
right, lower-left or lower-right. .
Menu
►Load Parameters ►Number of Loads
identifies the number of load shunts
in the BDFB.

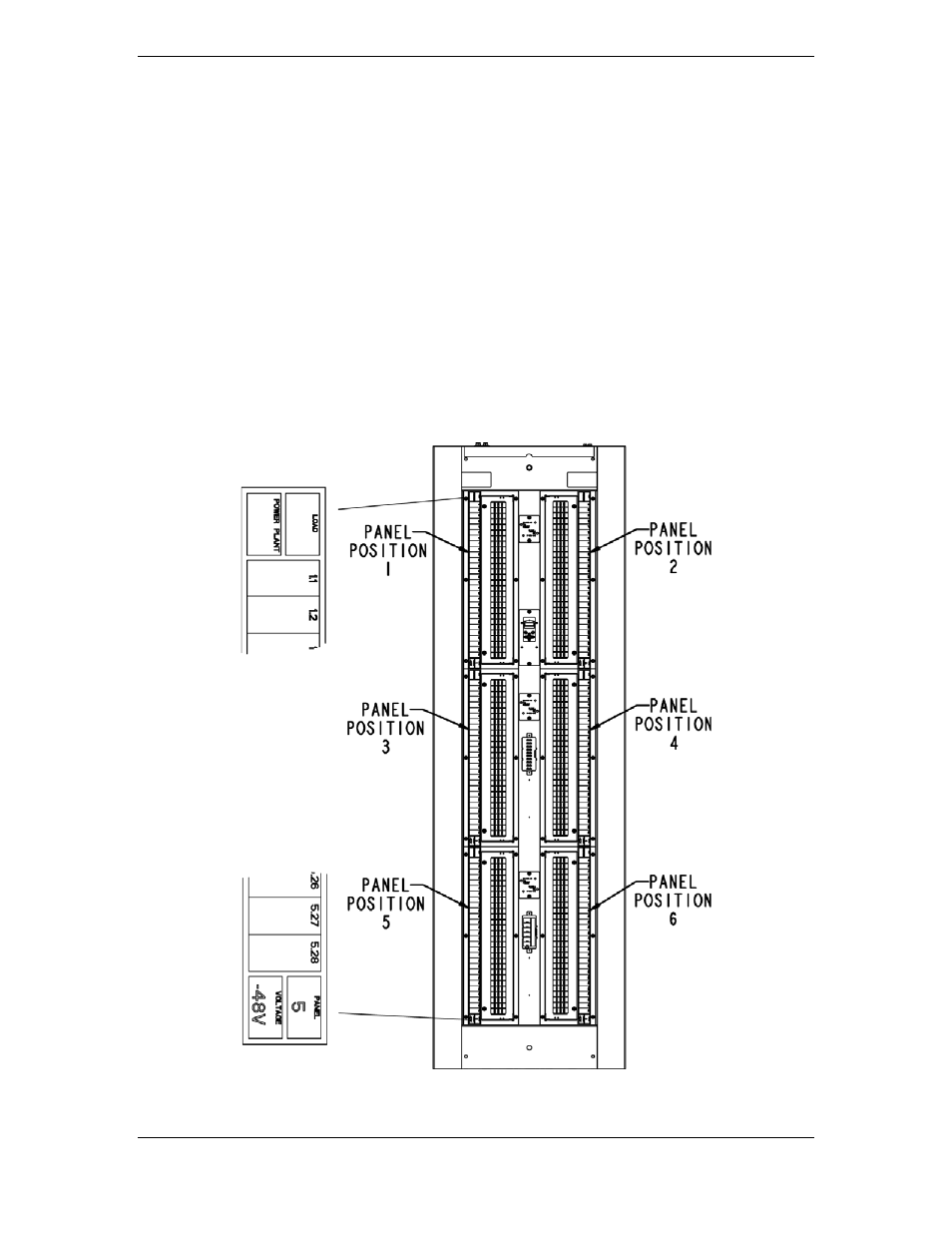

Figure 8 Top Feed BDFB
