Page 10
Secondary DC Power Distribution Bay H569-445
Issue 3 June 2012
10
Unpacking BDFB
BDFB’s ship on a 42 by 42 inch skid as shown below. A 15/16 inch wrench or socket is
required to remove 5/8 inch diameter shipping bolts from skid. Before opening the
packaging, carefully inspect the outside in the presence of shipping personnel for signs
of damage. Carefully open the packaging to verify that the contents are complete and
undamaged. If damaged, follow the shipping carrier’s procedure for filing a damage
claim. If the equipment must be returned, repack in the original shipping packaging.
Before continuing, verify that the following conditions exist at the installation site:
• Floor is conditioned and clean (refers to removal of any combustible flooring, e.g.,
carpet, wood, etc.).
• Job Site Documentation details cabinet locations.

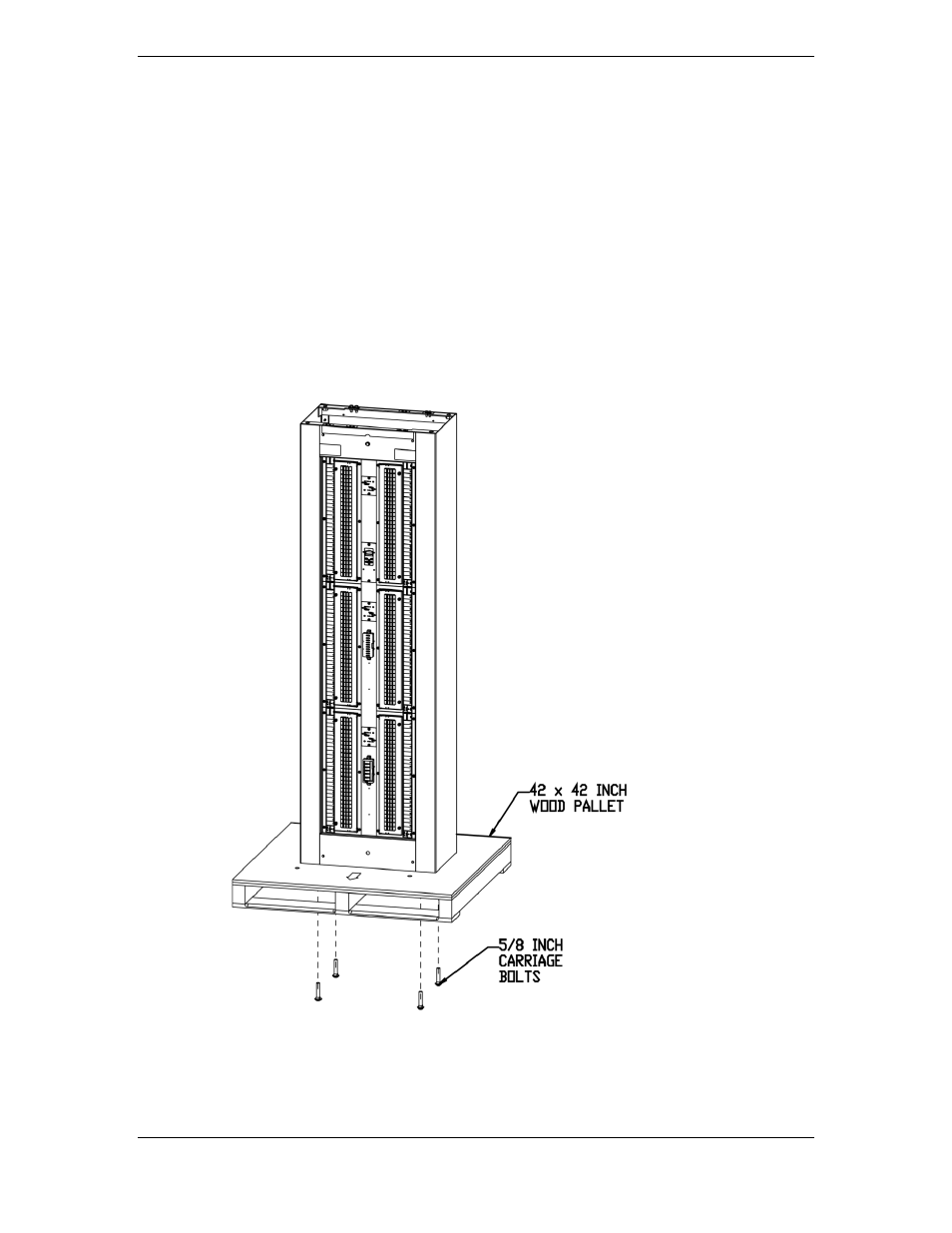

Figure 1 Cabinet Shipping Pallet
