Secondary DC Power Distribution Bay H569-445
Issue 3 June 2012 13
Cabinet Extensions
Optional cabinet extensions, constructed in the same manner as the 7 foot cabinet,
mount on top of the 26-inch wide cabinet to match the height of adjacent cabinets.
Cabinet Extension Kits for 26-inch Wide Cabinet
Kit Comcode Height Extension Height with Extension
848258588 4 -1/2 ft 11-1/5 ft
848258570 2 ft 9 ft
Secure the cabinets together with four 5/8” bolts, lock washers and flat washers
(provided). Use a 15/16” socket.
Secure the interframe ground cable with two 7/16” bolts, lock washers, flat washers and
nuts (provided). Use 7/16” socket and wrench. This provides a continuous frame ground
to the top of the cabinet.

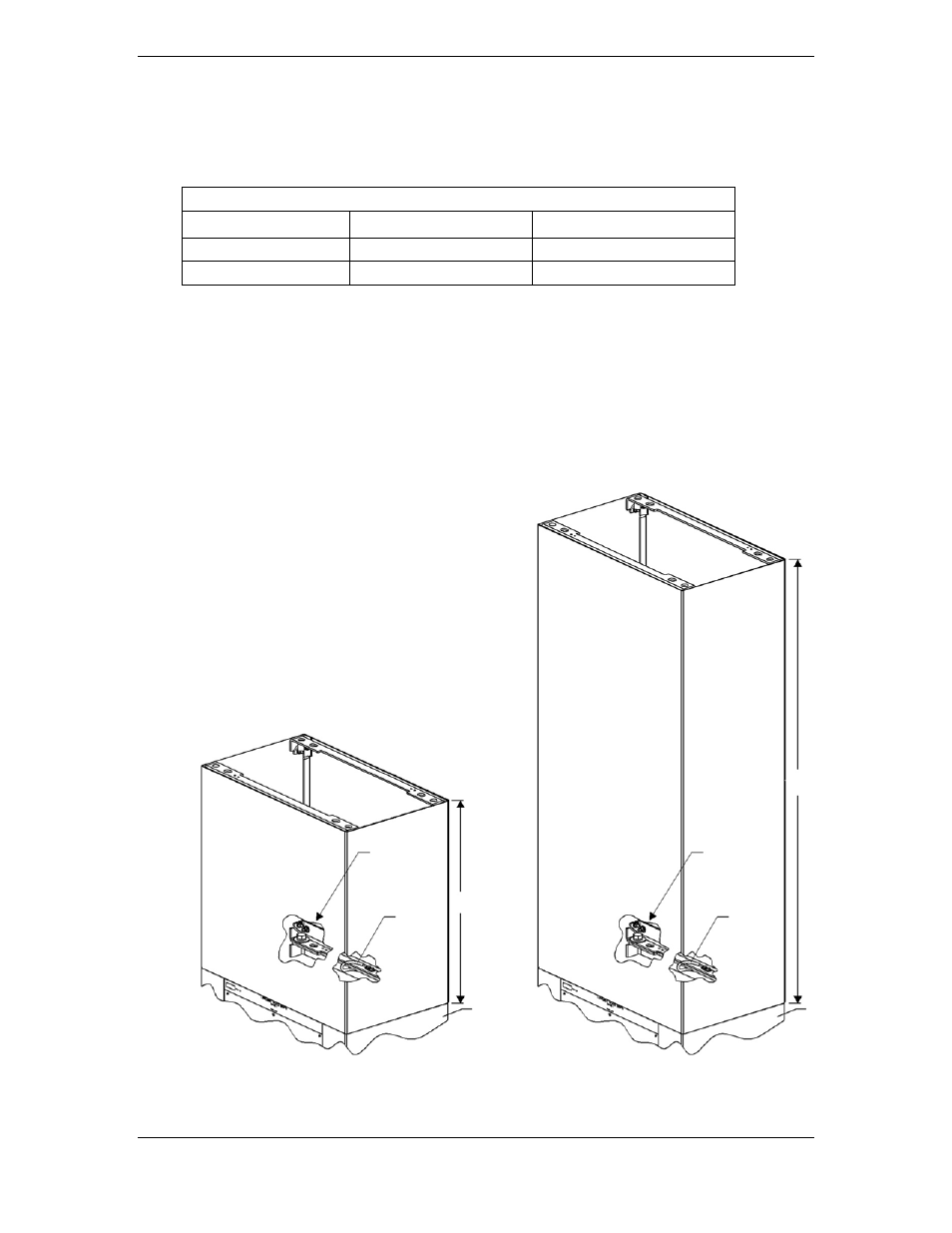

Figure 4 2-Foot or 4-1/2-Foot Extension Cabinet
Frame
Mounting
Hardware
Ground
Strap
2’
4-1/2’
Frame
Mounting
Hardware
Ground
Strap
7’ Cabinet 7’ Cabinet
