Secondary DC Power Distribution Bay H569-445
Issue 3 June 2012 12
Floor Mounting
When installing the BDFB cabinet to the floor, the following mounting hardware may be
required depending on customer requirements.
• Drill anchor holes to depth specified in table below.
• Place floor insulation pad and/or use insulation bushings provided with anchors
if required.
• Shim under cabinet corners as necessary to level.
• Torque anchors as specified in table below.
Anchor Kits
Seismic
Zone
Ordering
Code
Anchor Type
(Hilti)
Hole
Size
Wrench Torque
0,1,2 847135662 (4) 1/2 inch
drop-in
5/8 inch bit
2” deep
3/4 inch
216 in·lbs
(18 ft·lbs) 24.5
N·m
0,1,2,3,4 847135688 (4) 12 mm
cap bolts
18mm bit
100mm deep
19 mm
720 in·lbs
(60 ft·lbs) 81.6
N·m
Isolation and Leveling Kits
Ordering Code Description
408520408 Floor Insulation Kit (16 in x 24 ¼ in)
CC109121588 Shim Kit

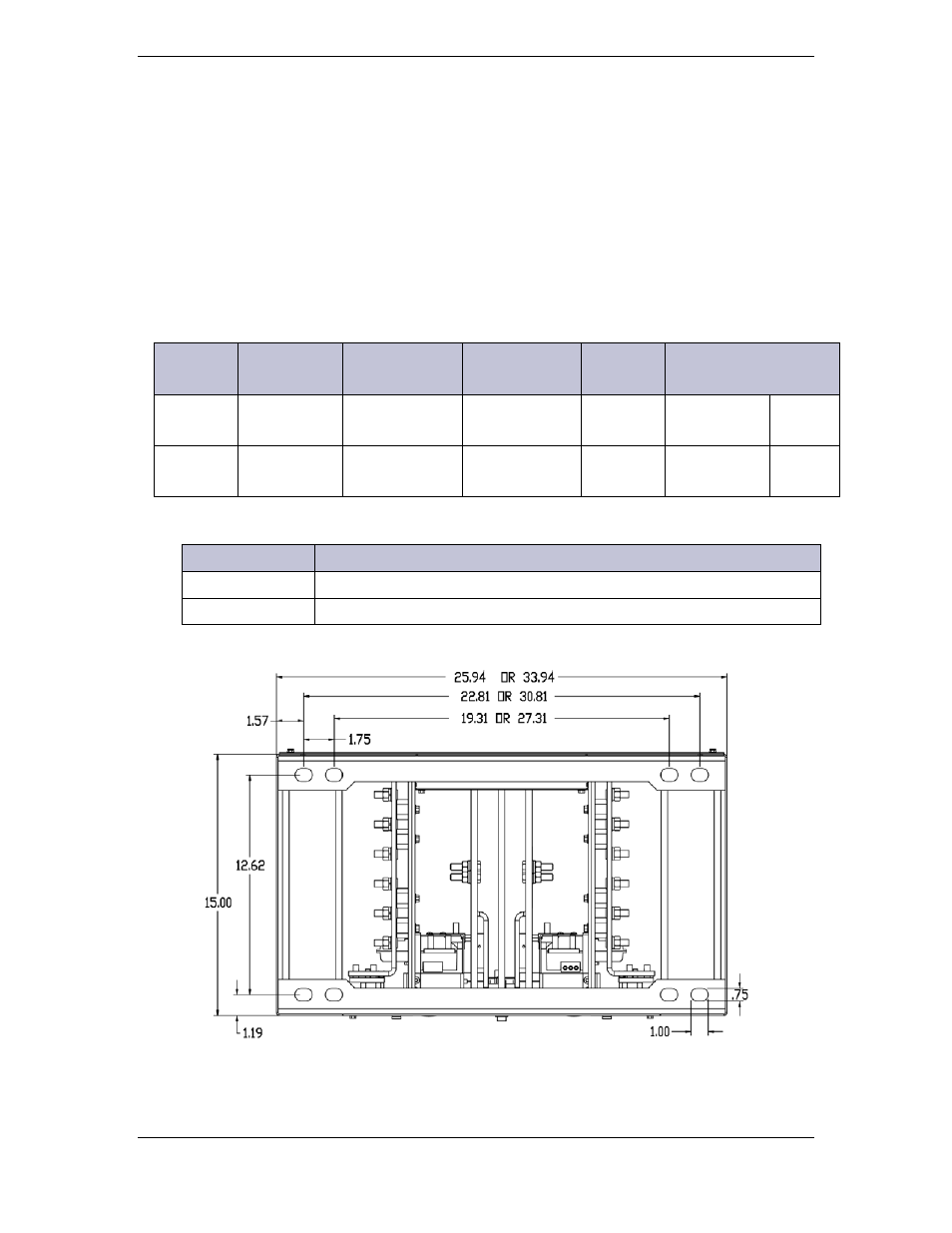

Figure 3 Footprint of Cabinets
