Galaxy Power System GPS2436
Issue 1 August 2012 9
Architecture
Configurations
The GPS2436 is a 7-foot cabinet that can provide up to 3600 amps of DC
power in a single cabinet. Figures 2-1 and 2-2 show diagrams of single
cabinets.
Each cabinet contains ac distribution, dc distribution panels, a battery
connection panel, rectifiers, termination points for load circuits, and a system
controller.
Illustrations
Figure 2-3 shows a block diagram of a two cabinet system. One supplemental
cabinet may be added to grow the system to 2,700 amperes. The rectifier
output buses are interconnected to permit the cabinet to share current and
ensure common voltage references for all system rectifiers.

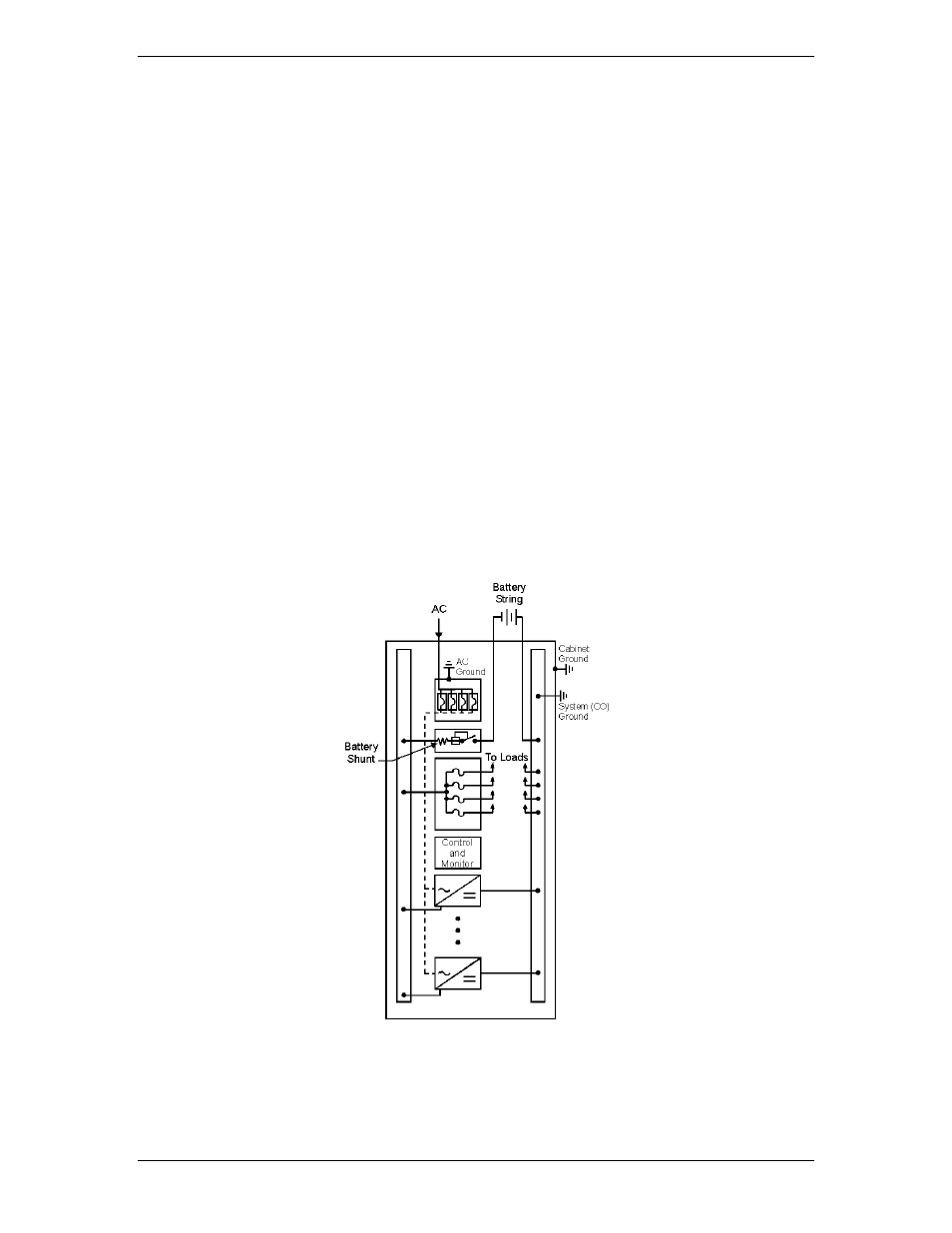

Figure 2-2 Cabinet schematic
