CPS3200U Upstream System – 23” Product Manual CPS3200U
CC848779826 r09 December 2013 26
Installing the Filter Bracket and Filter
CPS3200U system has optional filters to provide a degree of protection from airborne particulate matter. Follow the
steps to install a filter bracket adjacent to the fan shelf. The example shown is for a separate filter bracket for bottom to
top airflow solutions. Top to bottom airflow applications require the filter to be above the system.
Step Action
1. Install the Filter Bracket directly below the fan shelf as shown.

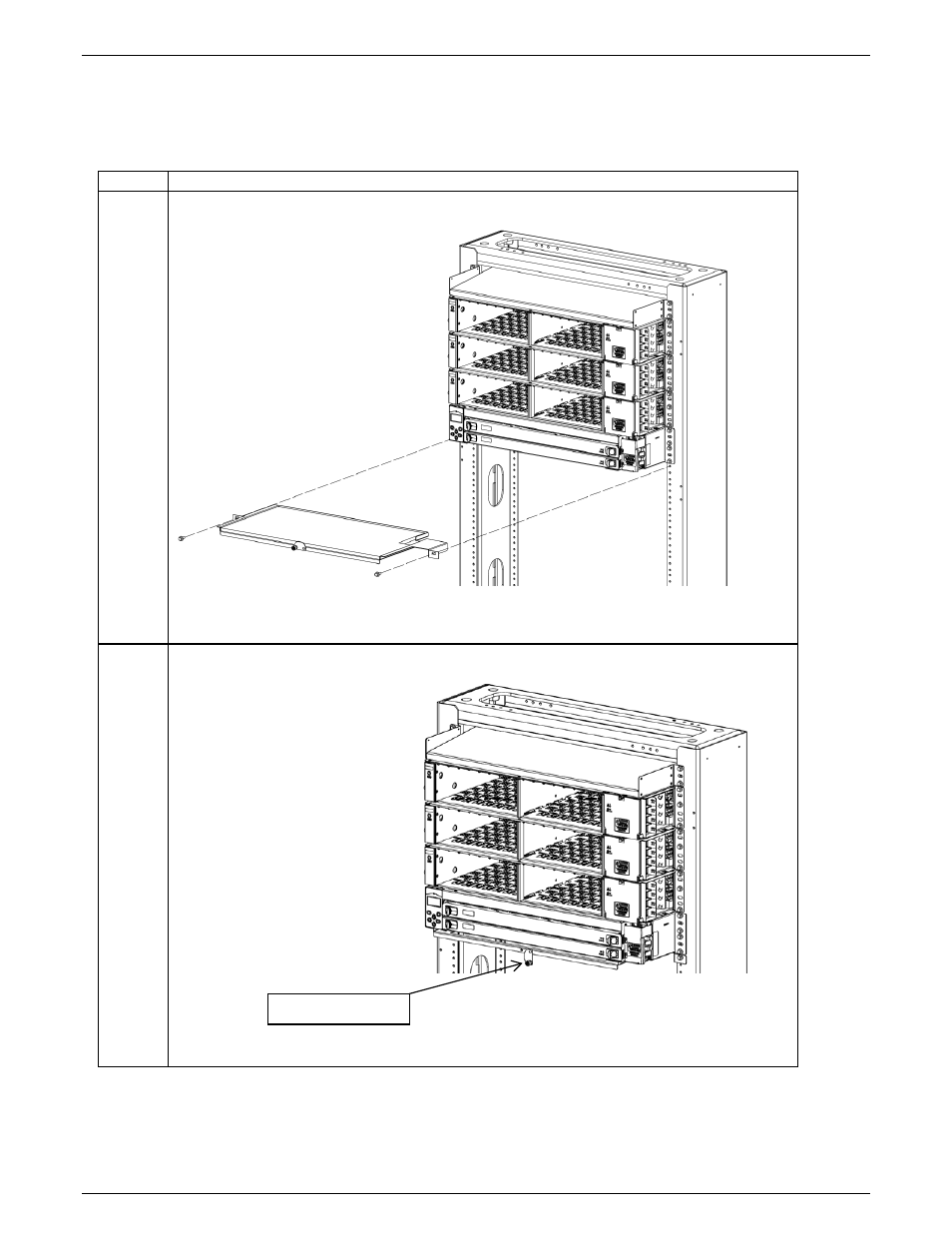

Figure 21 Mounting the Filter Bracket
2. Loosen the filter retention screw and rotate retention bracket down.
Figure 22 Filter Retention Bracket
Retention Bracket
