CPS3200U Upstream System – 23” Product Manual CPS3200U
CC848779826 r09 December 2013 21

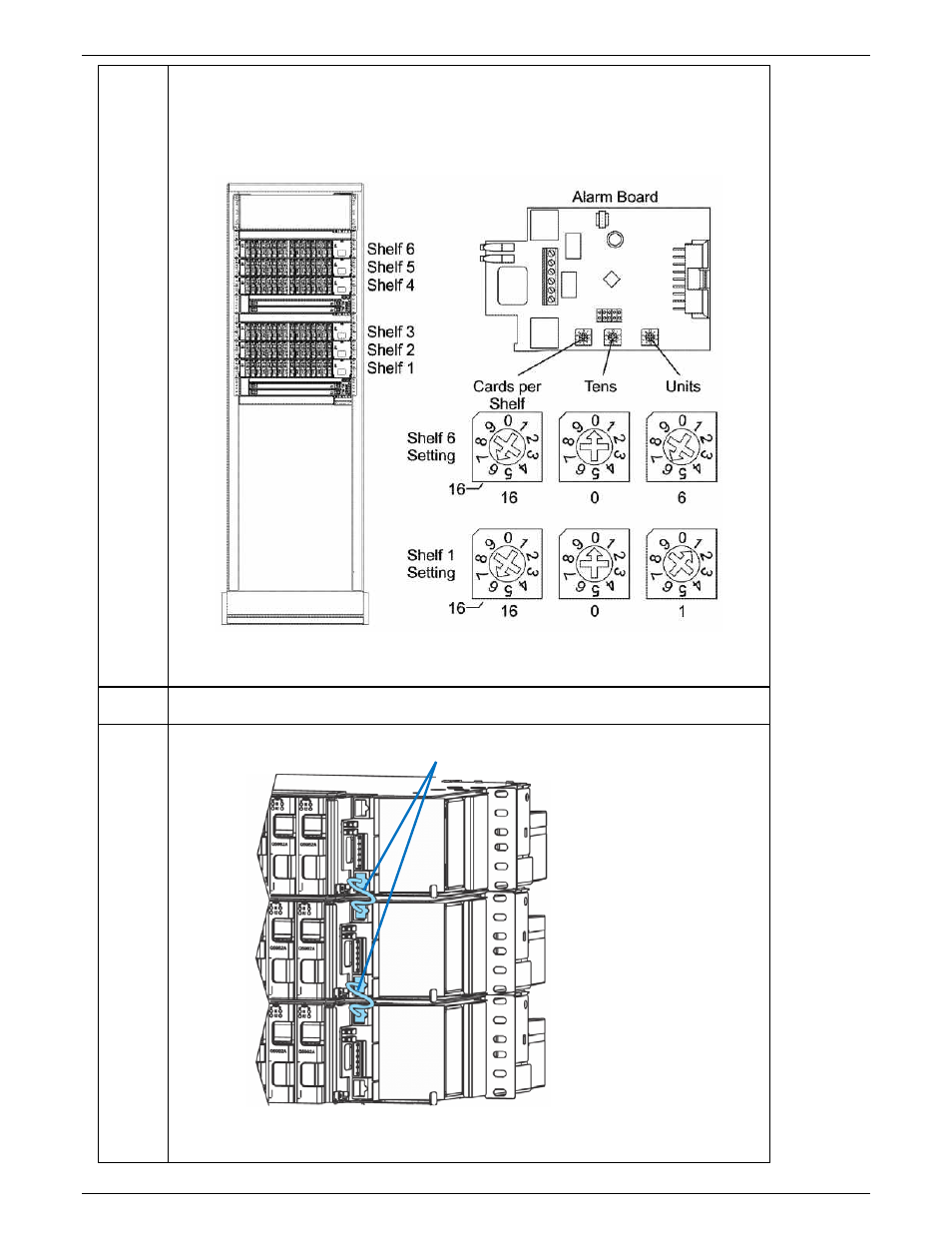

3. Use a Phillips Head screw driver to set the shelf address rotary switch to indicate a shelf
ID. For most applications the only switch requiring adjustment will be on the far right
labeled ‘Units.’ Start with shelf 1 at the bottom and progress to higher numbers as one
goes up the frame. This figure shows settings for shelf 1 and shelf 6 as examples.
Figure 11 Setting Shelf ID
4. If local contact closures are also desired continue with Attach Alarm Wiring, otherwise
reinstall alarm card and close door.
5. Attach signal wiring between the Alarm Cards of adjacent Converter Shelves.
Figure 12 Signal Wiring between Converter Shelves
Included Communication Wiresets
Converter Shelf
Doors not shown
