Test kit administration 53
1.12.1 HMI setup
The test kit communicates with the Entellisys Low Voltage HMI to download system
configuration, preventing the operator from entering it manually.
A USB-to-USB cable, running a peer-to-peer network communication bridge, is used between
the test kit and the HMI for communication. Both the HMI and test kit have dedicated LAN
connections enabled for this. The test kit must know the HMI IP address. These IP addresses
have been pre-set and should not be changed.
In the event the addresses must be changed, this screen provides the ability to enter the HMI
USB-to-USB Network Communication Bridge IP address.
NOTE: For most systems the HMI IP address for the USB-to-USB bridge should remain at the
default setting of 192.168.2.50. Modify this setting only if it was changed in the HMI.

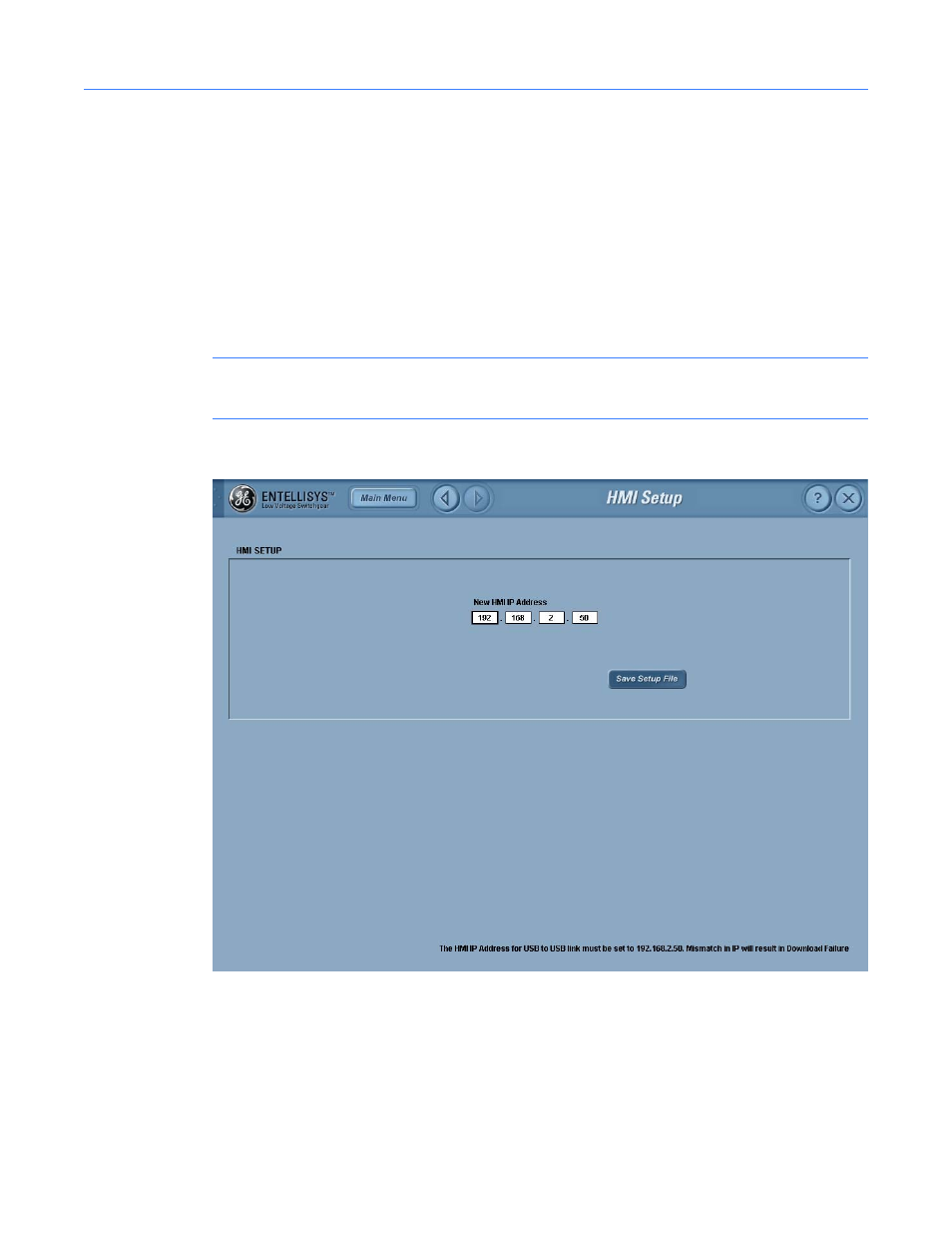

Figure 1-24 HMI Setup screen
Enter the IP address in the X.X.X.X format, where X = 0 to 255. The maximum value that can be
entered is 255.255.255.255.
