Summary of Protection 45
1.7.1 Setup
Circuit Breaker Name ; Resume GF will Resume/Run as normal.
Circuit Breaker Name † Defeat GF will be temporarily defeated for the circuit breaker
specified while the test kit's test connector is physically
connected to the Messenger.
1.8 Summary of Protection
The Summary of Protection screen displays the list of circuit breakers in the system. Also
displayed are the protection elements enabled for each circuit breaker to be used as a reference
for the operator. The test kit will not allow tests for a protection function that is not enabled.

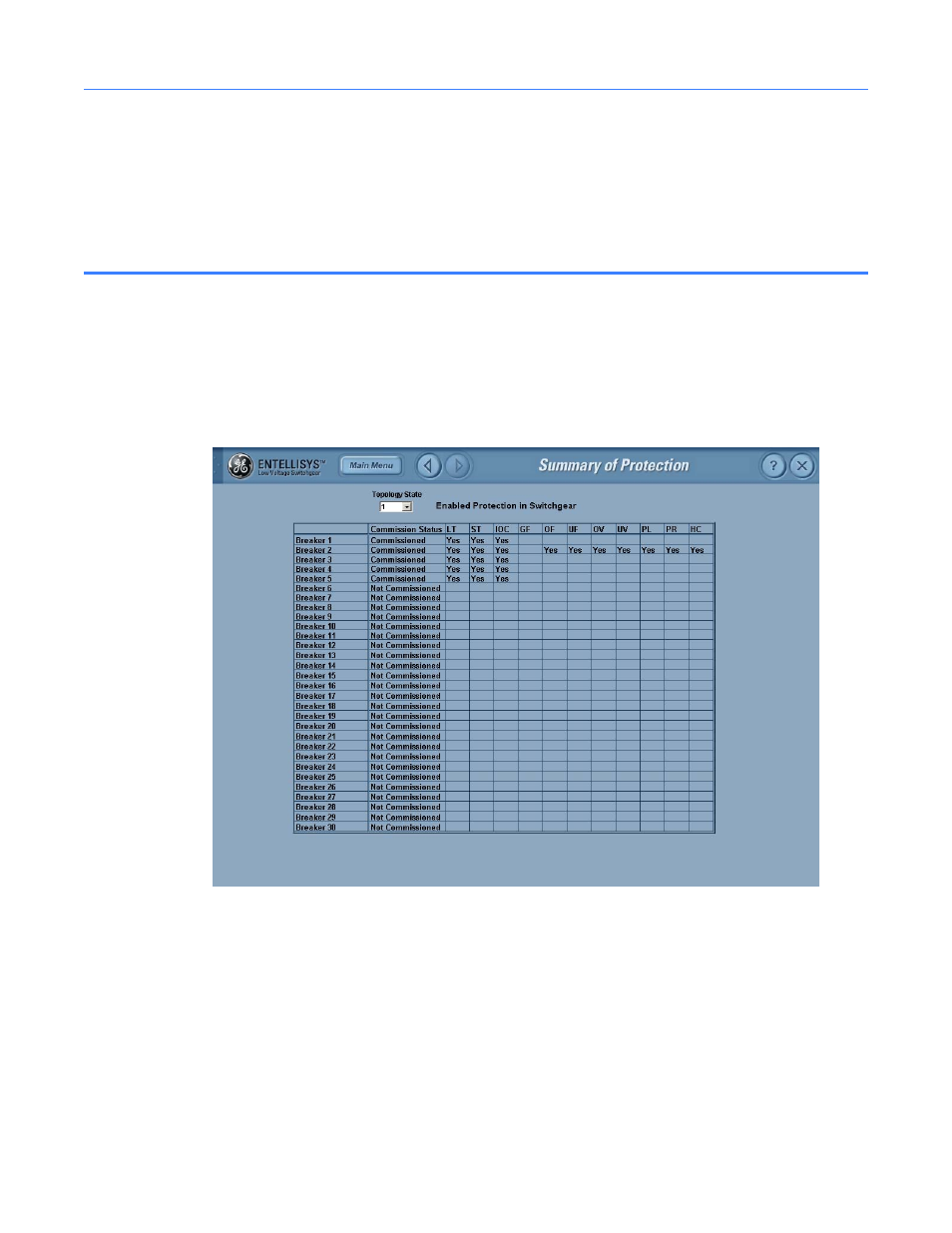

Figure 1-21 Summary of Protection
If connected to an Entellisys 4.0 lineup, the topology can be selected. The screen will display the
Protection elements enabled for each circuit breaker for that topology.
