4. Programming
4-9
Display
Parameter Parameters (1)
Factory
Default
4-7. Application and basic settings
Nominal motor current N x x x 100
Current limit L x x x 400 375 400
Initial torque T x x x 025 030 035 020 020
Acceleration ramp time a x x x 015 015 030 030 015
Deceleration ramp time d x x x 020 040
Kick start time (2) p x x x 000 100
Soft stop S x x x OFF ON
Pump control C x x x OFF ON
Pump curve starting S T x x 02 02
Pump curve stopping S P x x 02 02
Kick start P x x x OFF ON
Overload trip curve(3) o x x x ooN2 ooN2 ooN2 ooC2 ooC1 ooC1
Service Factor(3) f x x x 100
Compressor Mill Fan
Machine
Tool
Pump
Control
Settings (X X X)
Different applications will require different characteristics and settings for the ASTAT-CD Plus. The table below lists typical settings for
various applications.
Notes: (1) = GBAS Block Parameters unless noted(2)(3)
(2) = Parameter “p” is disabled while “C” is ON.
(3) = GCAL Block Parameters

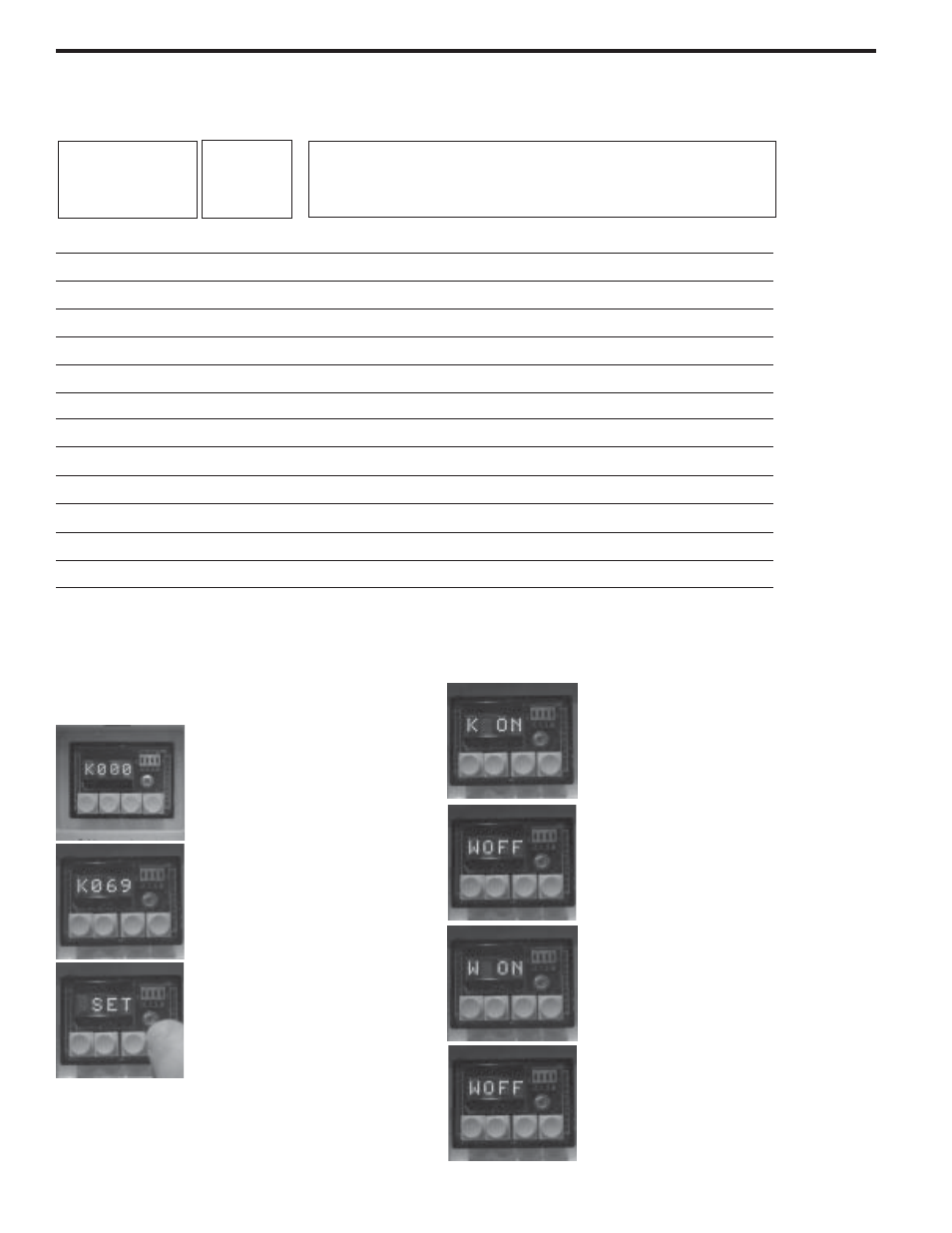

4-8. Saving parameters to E2PROM
Advance the display to K000 with
the C/V and up arrow button.
Change the parameter to K069 with
the up arrow button.
With K069 displayed, press the
enter button.
Display will show SET momentarily
and then display K ON.
Advance the display to WOFF with
the C/V and up arrow button.
Change parameter to W ON by using
the up arrow button.
With W ON displayed, press the
enter button.
Display the show SET momentarily
and then display WOFF.
