3. Technical Specifications
3-4
3-4. Operating modes
Initial ramp
Initial voltage (pedestal)
Kick start
Acceleration ramp
Current limit
Permanent state
Stopping modes (All selectable)
Override
Energy savings

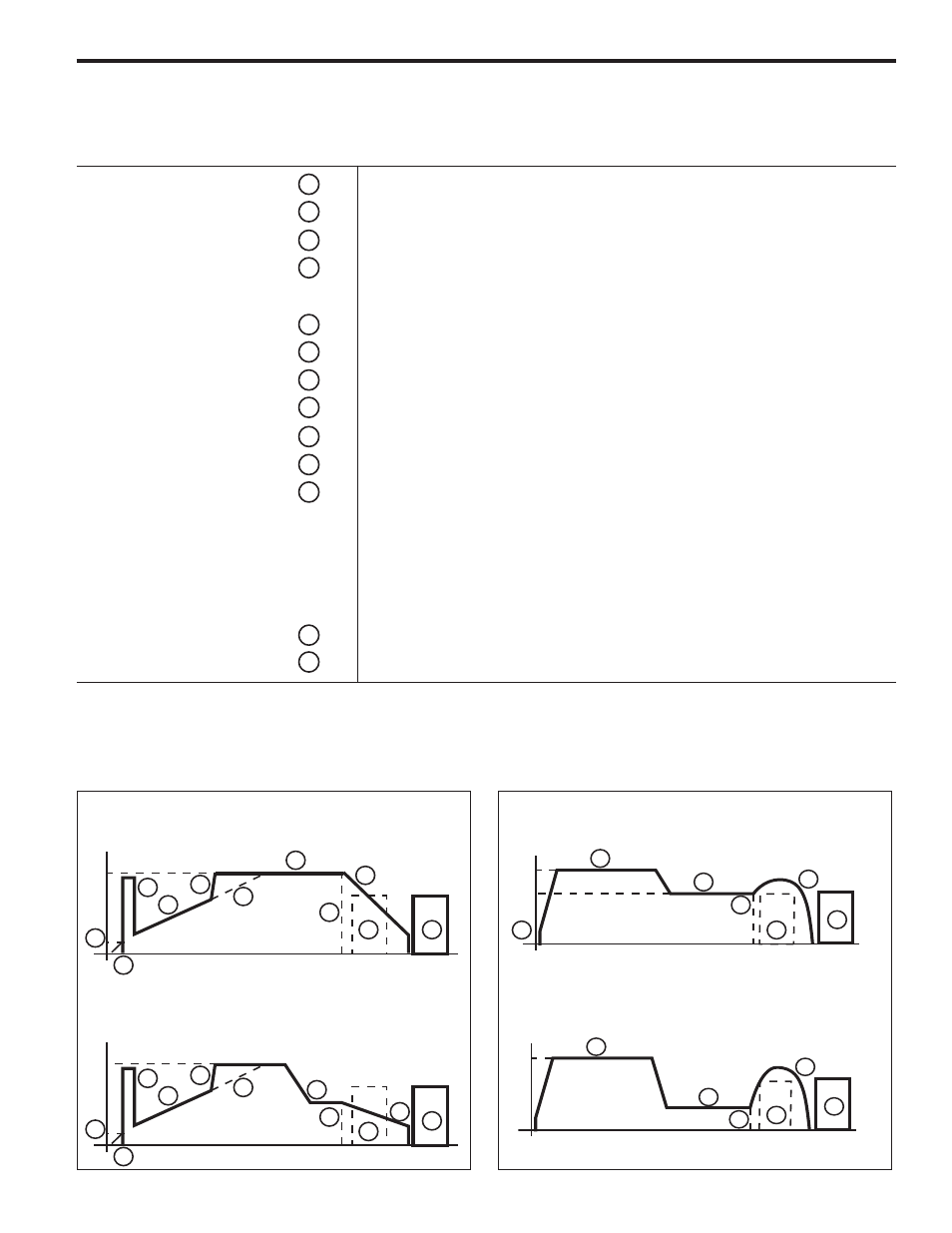

Starting by voltage ramp Starting by current limitation
5 main frequency cycles
30 to 95% Un (adjustable via initial torque setting T)
95% Un. Enabled by parameter "Pxxx" to ON, 0-999 ms (adjustable)
1-99 sec (adjustable). Dual ramp option.
Linear speed ramp by tacho feedback also possible
Fast ramp (if motor is up to speed before end of normal ramp time )
100% to 450% x Ir/In Max 700% In
Rated voltage (override)
Rated current
Energy savings. Enabled by "Fxxx" to OFF
Motor power cut-off. "Sxxx" to OFF, "Cxxx" to OFF
Deceleration ramp 1-120 sec (adjustable). Secondary ramp 1-99 sec
Ramp down modes available are:
- Soft Stop -Voltage ramp down-. Enabled by "Sxxx" to ON
- Pump control. Selectable by "Sxxx" to ON and "Cxxx" to ON
- Linear ramp down (Tacho feedback needed)
Evolution of current in deceleration ramp mode
DC brake (0-99 sec adjustable). Enabled by "Bxxx" to ON
Starting and Stopping
