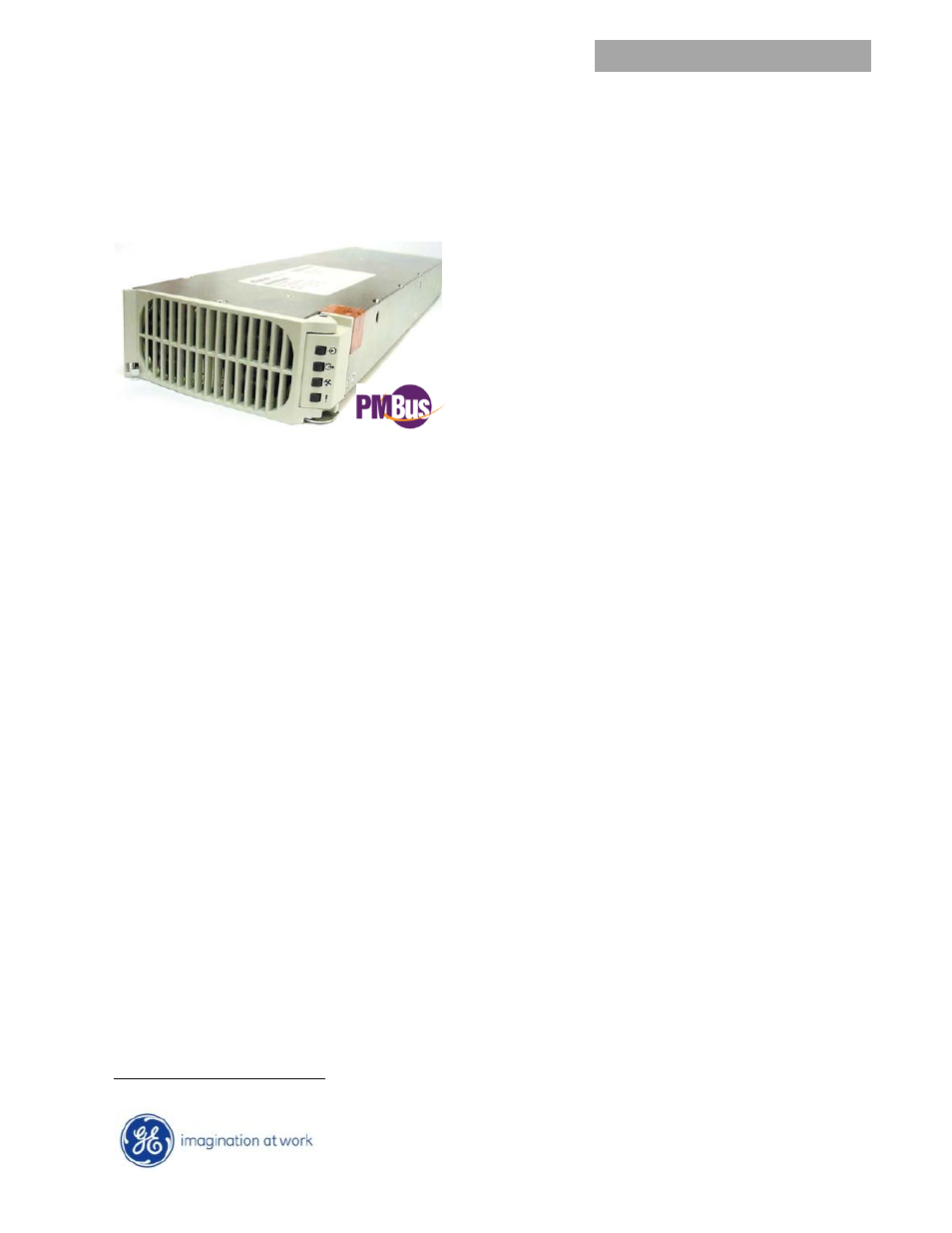

CP2000DC54-PE Compact Power Line DC/DC Converter
Input: -40 to -72Vdc; Outputs: ±54 Vdc @ 2000W; 5 Vdc @ 4W
Features
Compact 1-RU form factor providing 22 W/in3
Input Current < 60A at 40 Vdc input
Programmable output voltage from 44V to 58 Vdc,
Output defaulted to 54V
RS485
1
and PMBus compliant dual I
2
C serial bus communications
Designed to IEEE802.3af Compliance, 2250 output*** isolation to
chassis/signals for POE applications. (see ordering info)
DC Output over-voltage and over-current protection
DC Input over-voltage and under-voltage protection
Over-temperature warning and protection
Redundant, parallel operation with active load sharing and isolated
redundant +5V Aux power, isolated signals and I
2
C communications
Remote ON/OFF
Hot insertion/removal (hot plug)
Four front panel LED indicators
UL* Recognized to UL60950-1, CAN/ CSA
†
C22.2 No. 60950-1, and
VDE
‡
0805-1 Licensed to IEC60950-1
CE mark meets 2006/95/EC directive
§
Internal variable-speed fan control
RoHS 5 compliant
POE compliant to IEEE802.3af
Applications
48Vdc distributed power architectures
Power over Ethernet
Routers/Switches
VoIP/Soft Switches
LAN/WAN/MAN applications
File servers
Indoor wireless
Telecommunications equipment
Enterprise Networks
SAN/NAS/iSCSI applications
Advanced workstations
Description
The CP2000DC54-PE DC/DC Converter, also called a Power Entry Module (PEM) in the Compact Power Line platform is
specifically designed to operate as an integral part of a complete distributed power system. The high-density, front-
to-back airflow PEM is designed for minimal space utilization and is highly expandable for future growth. It is provided
with many features including PoE isolation, and dual-redundant I
2
C communications busses that allow it to be used in
a broad range of applications. These signals and the 5V auxiliary supply are isolated from the main output and frame
ground. The flexible feature set makes this Power Entry Module an excellent choice for applications requiring modular
dc-to-dc bulk intermediate voltages, such as in distributed power.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§ This product is intended for integration into end-user equipment. All the required procedures for CE marking of end-user equipment should be followed. (The CE mark is placed on selected products.)
** ISO is a registered trademark of the International Organization of Standards.
1
Introduced in 2011
