60

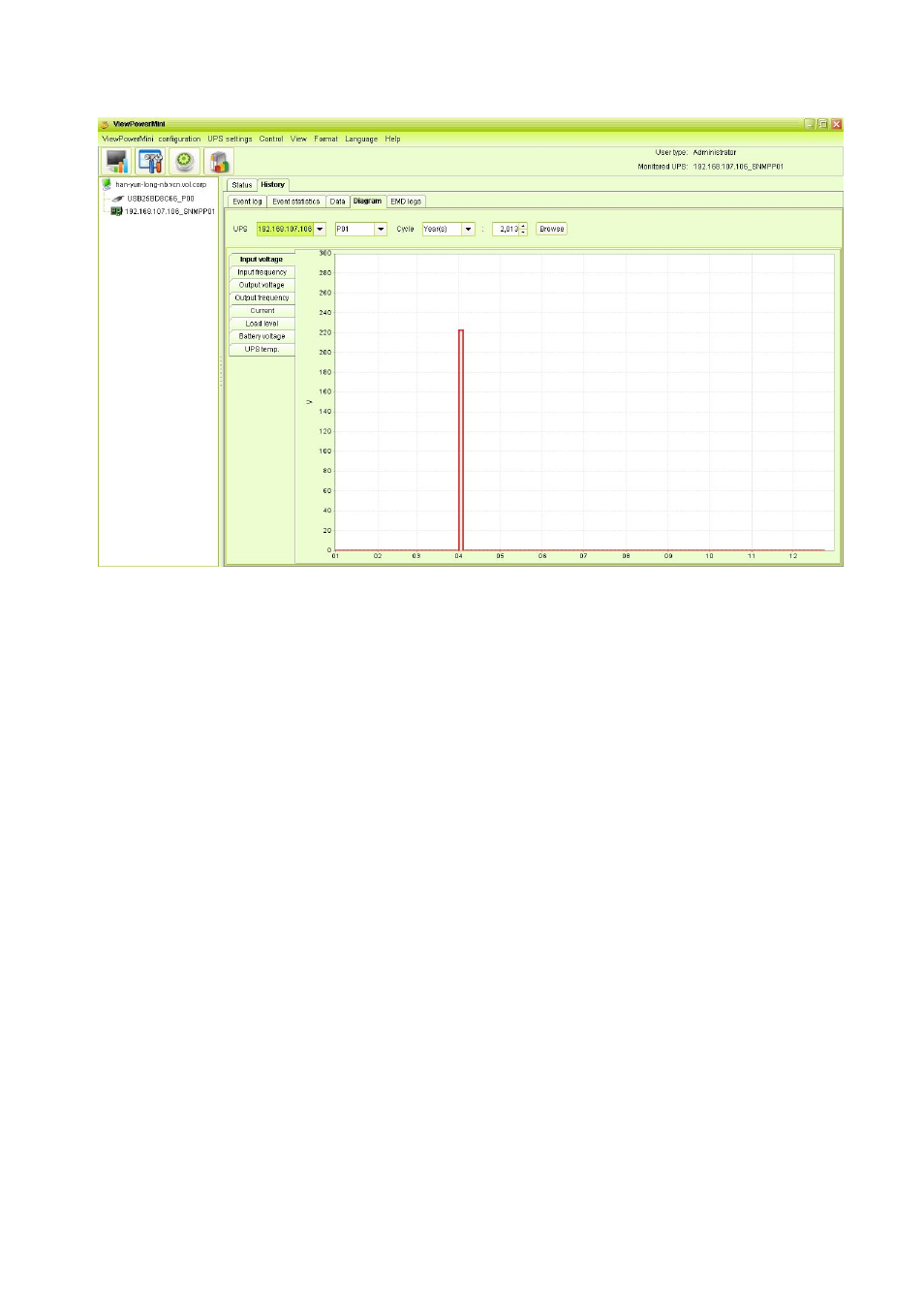

Diagram 5­29
NOTE: This screen may be different for different types of UPSs.
Step 2 Select UPS from com. port list. Users still can retrieve old data saved in the
software even though the UPS is no longer connected to local system.
Step 3 Select cycle and period time. Then click “Browse” button to get the diagram.
Step 4 Select monitoring parameters on left­hand tab to switch diagram.
5.4.2.5. EMD Logs
In the EMD logs window, it shows the environment data in figures detected by
environmental monitoring device (EMD) during selected period time.
Step 1 Select View >> History >> EMD logs. Refer to Diagram 5­30.
