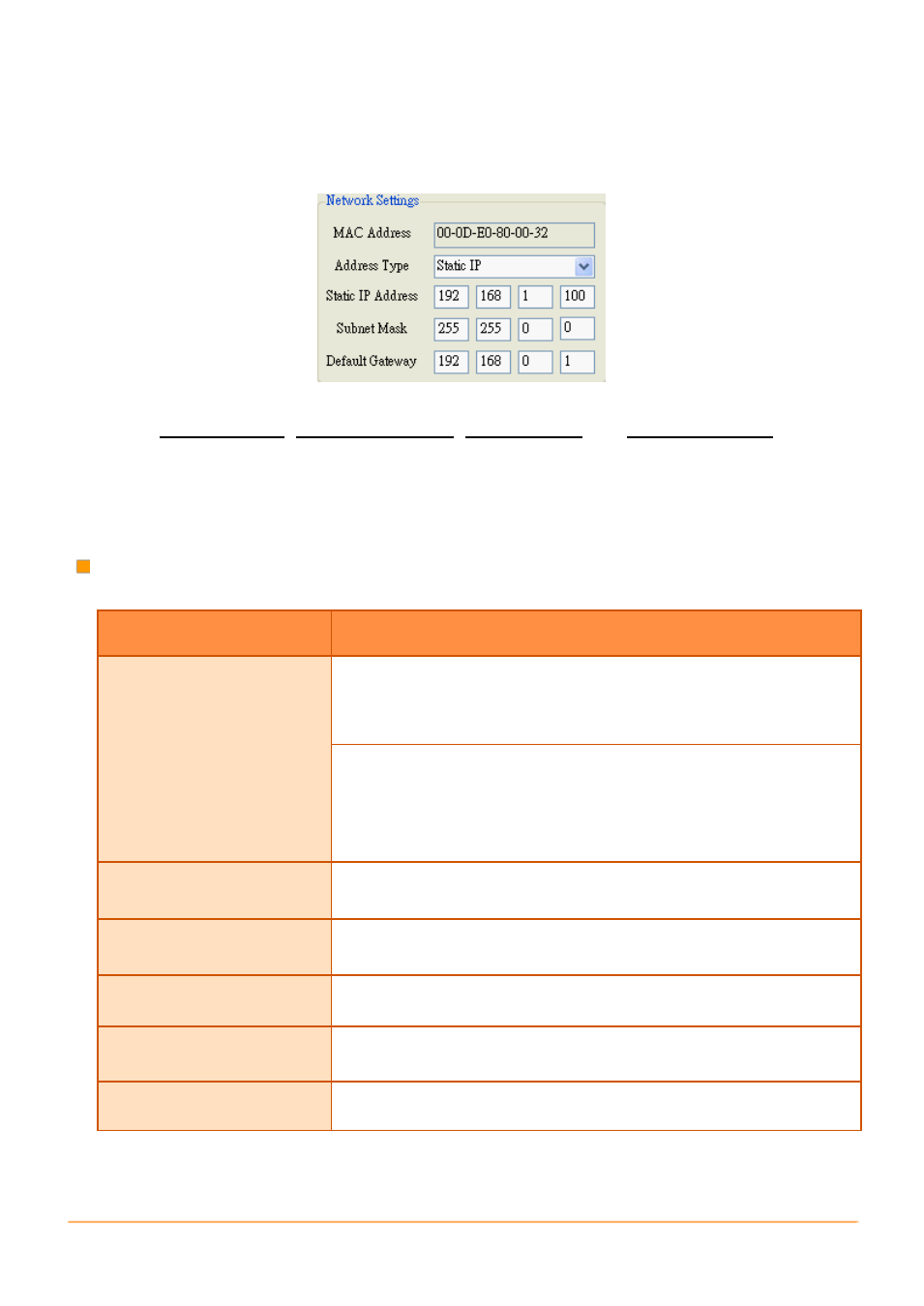

4.2.1 Network Settings
The Address Type, Static IP Address, Subnet Mask and Default Gateway items are
the most important network configuration and should always match the LAN definition of your
PC. Or, the connection between the GW-7472 and your PC may have problem. Contact your
network administrator to obtain a proper network configuration for the GW-7472.
Item Descriptions:
Item Description
Address Type
Static IP: If you don’t have a DHCP server in your network,
configure the network settings manually.
Please refer to the section
“4.2.1.1 Manually Configuration ”
DHCP: Dynamic Host Configuration Protocol (DHCP) is a network
application protocol that automatically assigns IP address to
devices by the DHCP server. If there is no DHCP server in the
network, the static IP must be used.
Please refer to the section
“4.2.1.2 Dynamic Configuration
”
Static IP Address
Each GW-7472 on the network must have a unique IP address.
This field is used to assign an IP address for the GW-7472.
Subnet Mask
The subnet mask defines which IP addresses of the network device
are in the same sub-network.
Default Gateway
A gateway (or router) is a device that is used to build a connection
between two sub-networks.
MAC Address
The MAC address of the GW-7472.
Update Settings
Click this button to save the new settings to the GW-7472.
