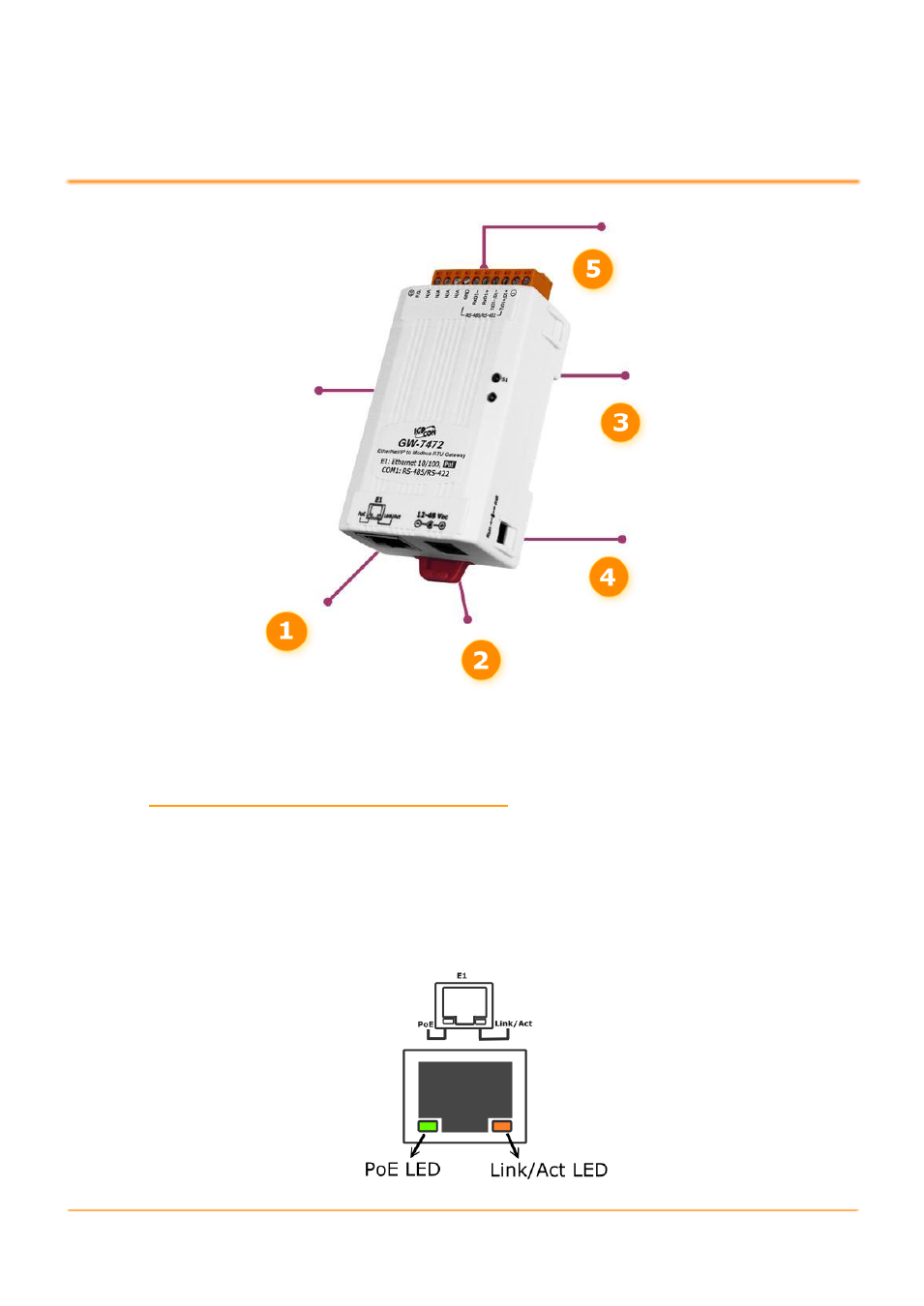

2.3 GW-7472 Front View
1. PoE and Ethernet RJ-45 Jack:
The GW-7472 is equipped with a RJ-45 jack for the 10/100 Base-TX Ethernet port and
features networking capability. When the Ethernet link is detected and Ethernet packet is
received, the Link/Act LED (Orange) indicator will be turned on. When the power is
supplied via PoE (Power-over-Ethernet), the PoE LED (Green) indicator will be turned on.
Robust insulated and
fire retardant case
PoE and Ethernet
RJ-45 Jack
+12~+48 V
DC
Jack
Serial COM Ports
Operating Mode
Selector
S1: System LED
indicator
