4.2 Module Configuration

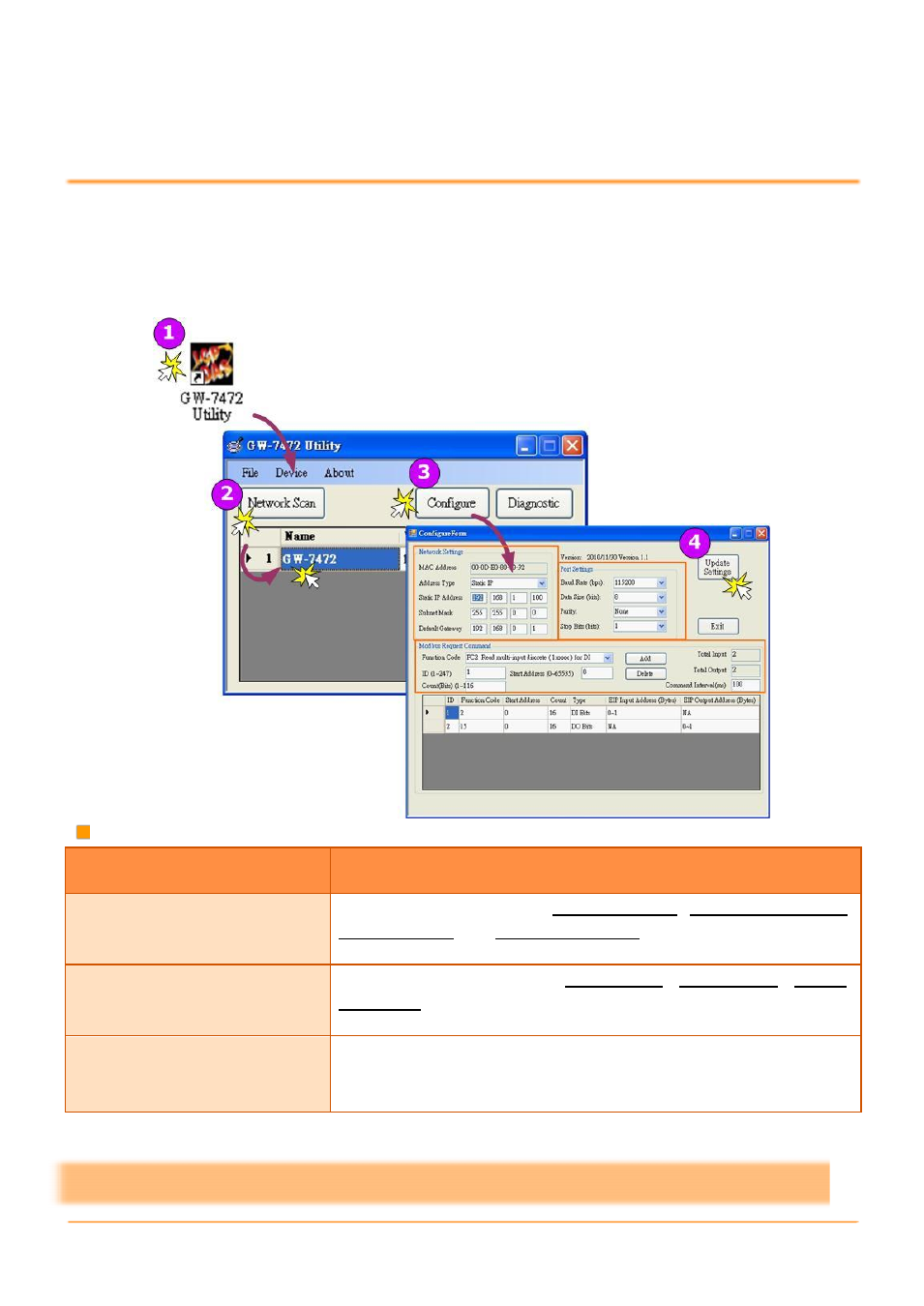

1. Double click the GW-7472 Utility shortcut on the desktop.
2.
Click the “Network Scan” button to search your GW-7472.
3. Select the item of the GW-7472 and click the “Configure” button to open the
Configuration dialog.
Item Descriptions:
Item Description
Network Settings
For configuration of the
Address Type, Static IP Address,
Subnet Mask and Default Gateway of the GW-7472
Please refer to section
“4.2.1 Network Settings”
Port Settings
For configuration of the
Baud Rate
,
Data Sizes
,
Parity
,
Stop Bits
, of the RS-485/RS-422 port of the GW-7472
Please refer to section “4.2.2 Serial Port Settings”
Modbus Request Command
Modbus commands to communicate with the Modbus
slaves
Please refer to section
“4.2.3 Modbus Request Settings”
Note!!
All settings will take effected after rebooting the system of the GW-7472 module
