GW-7472 User Manual, Version 1.0, Dec 2010

--- 16

2.6

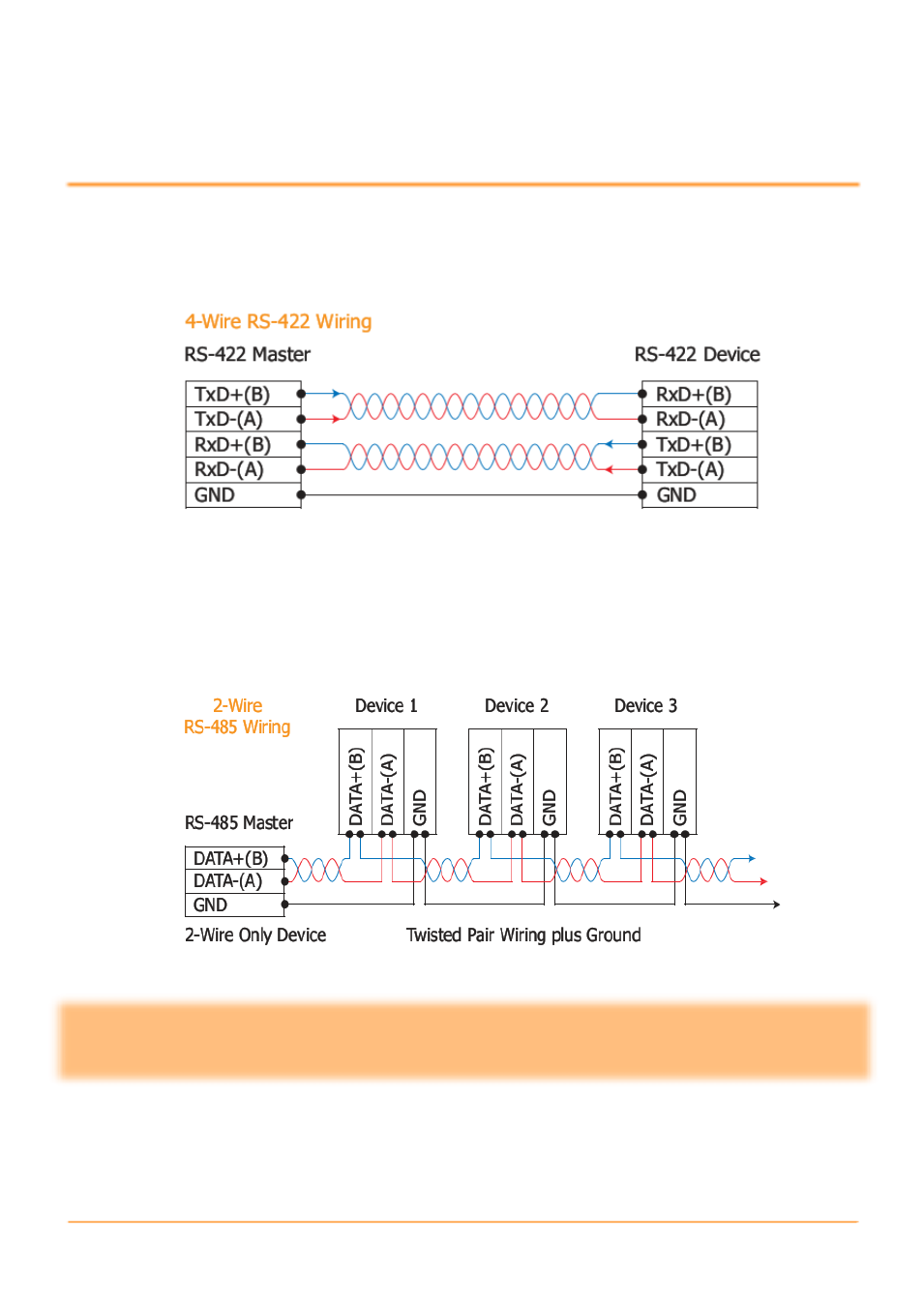

Wiring Note

2.6.1

RS-422 Wire Connections




2.6.2

RS-485 Wire Connections












Note!!

For non-isolated RS-422/485 ports, you should connect all signal grounds of RS-422/485

devices together. This reduces common-mode voltage between devices.
