48
DB-9M
Pin
RS-422/485
Signal
Label DTE
1 Transmit Data (-) TX A(-) Out
2 Transmit Data (+) TX B(+) Out
3 Receive Data (+) RX B(+) In
4 Receive Data (-) RX A(-) In
5 Ground GND ---
6
7
8
9

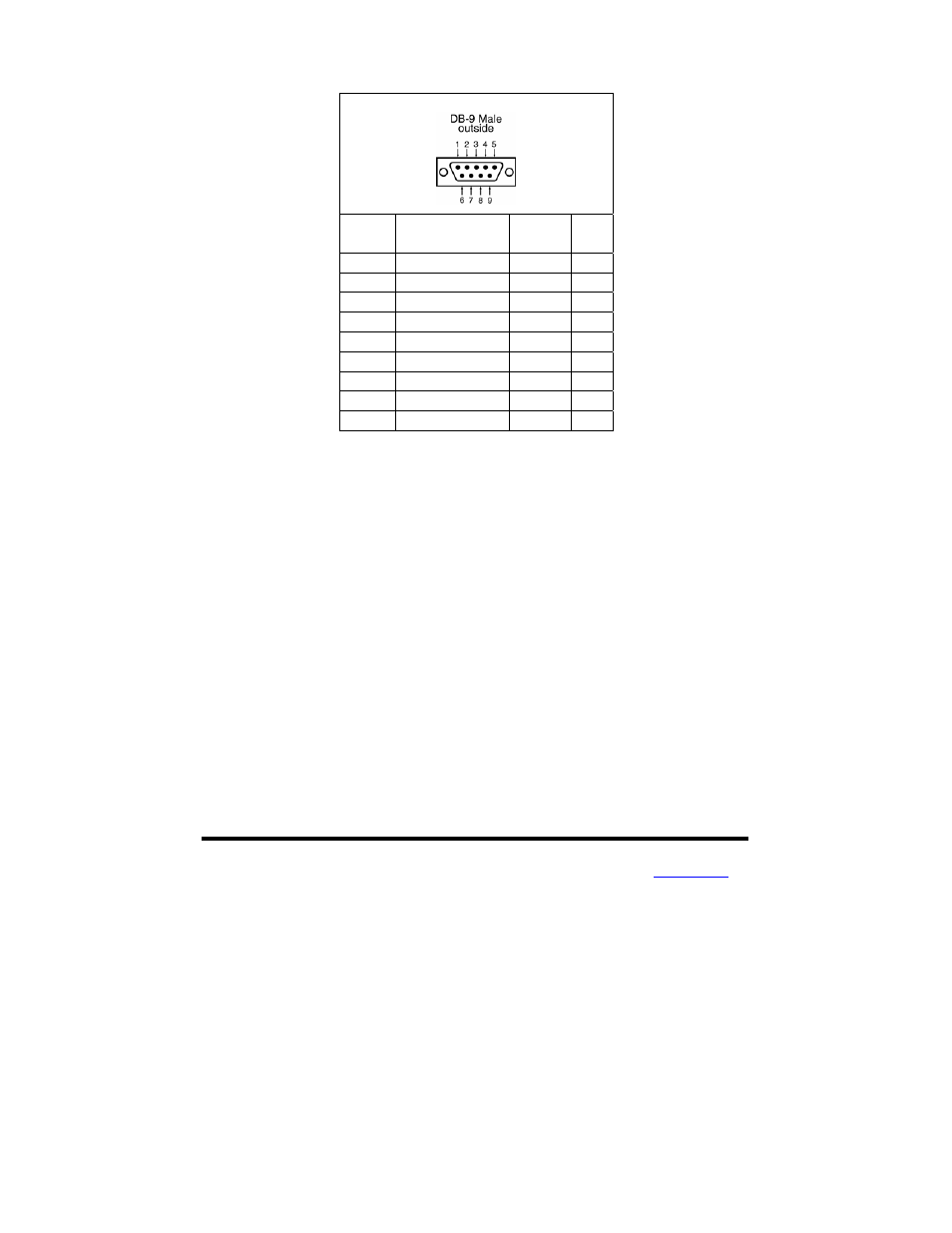

Figure 19. RS-422/485 Connections in a DB-9 Connector
