Using the Web Configuration and Management Interface
Manual Documentation Number: ESR901WB-2907m pn6870-rev002
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Chapter 5 23

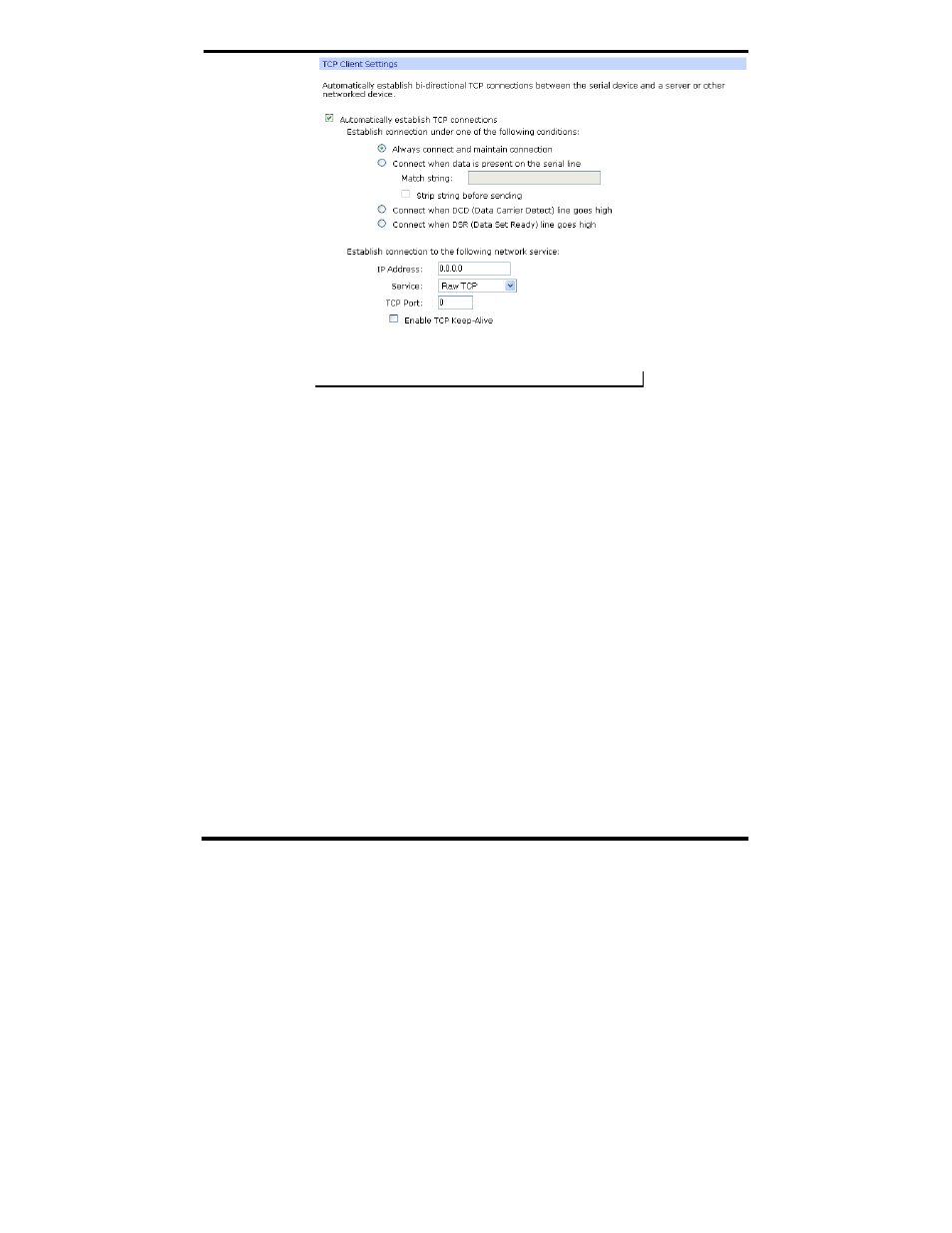

Figure 12. TCP Client Settings
Consult the Tutorial and online Help for more detail.
UDP Sockets
Select UDP Sockets to implement Direct IP Mode using UDP protocol.
When using UDP Sockets your serial server can be configured as a UDP
server or UDP client.
UDP Server Settings
If your ESR901WB is configured as a UDP server, other network
devices can initiate a UDP connection with the serial device
connected to the ESR901WB serial port. Network devices initiating
connections must be configured with the IP address of the
ESR901WB and the UDP port number associated with its serial
port.
After selecting UDP Sockets, click Apply to return to the Serial
Port Configuration page. Select the TCP Server Settings as
required by your application.
