Hardware Overview
Manual Documentation Number: ESR901WB-2907m pn6870-rev002
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
10 Chapter 2
Other Hardware Connections
The VLinx 90XW Wireless Serial Server also can communicate
directly with a PC equipped with a wireless card (in ad hoc mode).

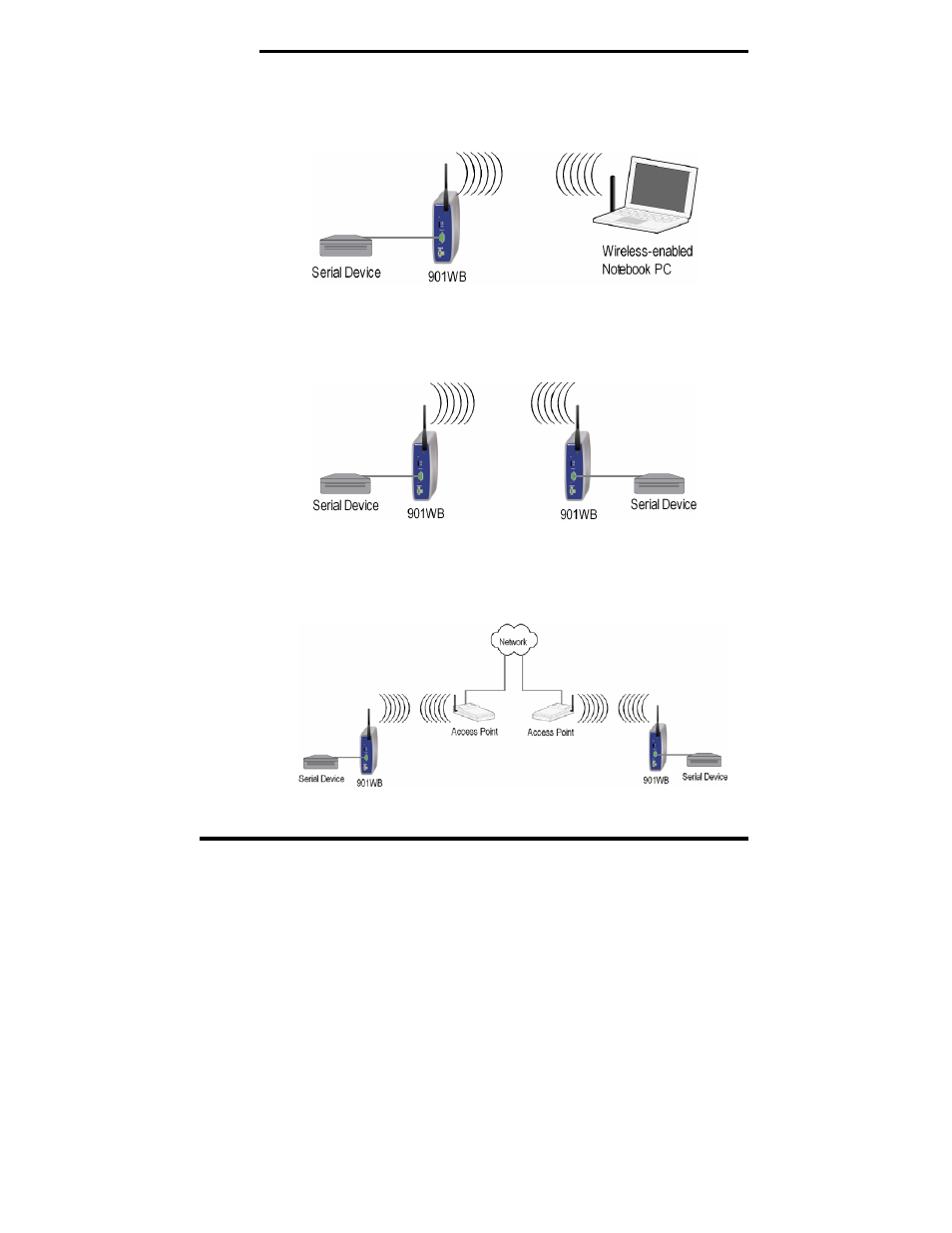

Figure 3. Wireless Ad Hoc Connection
In Serial Tunneling mode two serial devices can communicate via
two VLinx 90XW Wireless Serial Servers.
Figure 4. Serial Tunneling Ad Hoc Connection
Serial tunneling also can occur between two 90XW serial servers
communicating with individual access points and across a wired
network.
Figure 5. Serial Tunneling via Infrastructure
