___________________________________________________ DS33M30/M31/M33 ABRIDGED DATA SHEET
Rev: 111908 6 of 20
• Manual or automatic one-second update of performance monitoring counters
• Single reference clock for all data rates using internal clock rate adapter (CLAD)
• Detection of loss of transmit clock and loss of receive clock
• Supports two packages:
• 10mm, 144-pin CSBGA Package (DS33M30)
• 17mm, 256-pin CSBGA Package (DS33M31/DS33M33)
• 1.8V, 2.5V, 3.3V supplies
• IEEE 1149.1 JTAG boundary scan
• Software access to device ID and silicon revision
• Development support includes evaluation kit, driver source code, and reference designs
1.2 TDM Feature Overview
Figure 1-1 describes the TDM side feature.

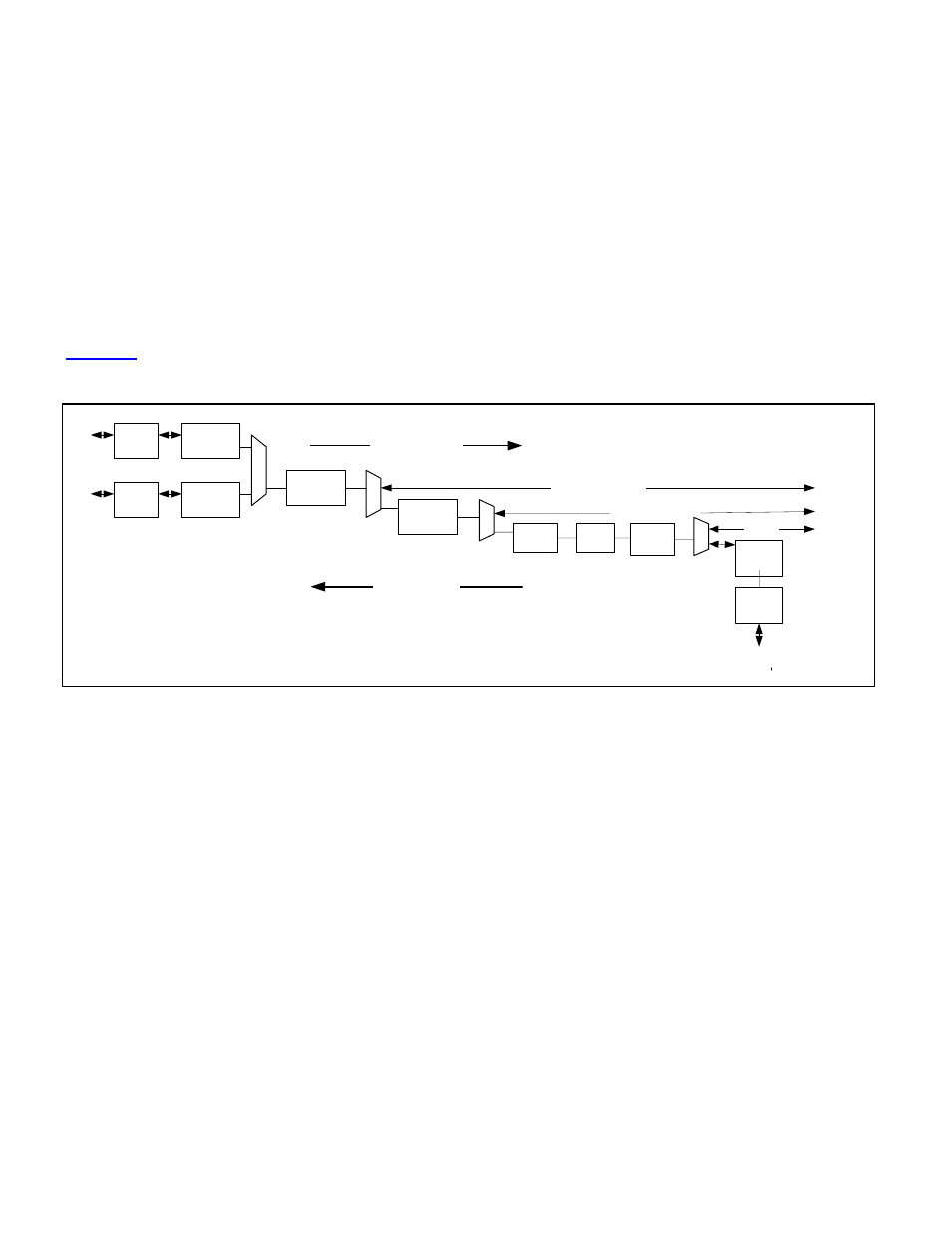

Figure 1-1. TDM Functional Blocks
STS-3
Section/Line
Termination
STS-3
Section/Line
Termination
M
U
X
STS-3 Path
Termination
(VC-4)
STS-1 Path
Termination
(VC-3)
M
U
X
DS3/E3
MAPPER
M
U
X
DS3/E3
Desync
Add/Drop
DS3/E3
Framer Line
DS3/E3
Framer
EoPoS
EoS (VC-3/STS-1)
SERDES
SERDES
EoS (VC-4/STS-3c)
Line DS3/E3 side
B3ZS/
HDB3
line coder
M
U
X
to
Encapsulated
Ethernet
STS-3/STM-1
Side
Drop Direction
Add Direction
• Supports M23 DS3, C-bit DS3, G.751 E3, and G.832 E3 facilities
• Mapping/demapping of three DS3/E3 tributaries to/from STS-3/STM-1 through STS-1 or AU-3 or TU-3/AU-4
• Fully integrated and compliant DS3/E3 mapper/demapper and synchronizers/desynchronizers per
Telcordia, ANSI, and ITU standards
• High speed DS3/E3/STS-1/STS-3 overhead insertion/extraction with full access to all overhead bytes
• Full-featured DS3/E3/STS-1/STS-3 defect and performance monitoring (PM) support Large PM counters
for accumulation intervals up to one second
• Loopback capabilities at both STS-3/STM-1 side and line DS3/E3 side
• Dual STS-3/STM-1 155.52Mbps serial interfaces with receive clock recovery and transmit clock synthesis
• From a single reference clock the CLAD (cLock rate adapter) generates clock references for DS3
(44.736MHz), E3 (34.368MHz), and/or STS-3/STM-1 reference (77.76/19.44MHz)
