AT90C8534
44
Parallel Programming Characteristics

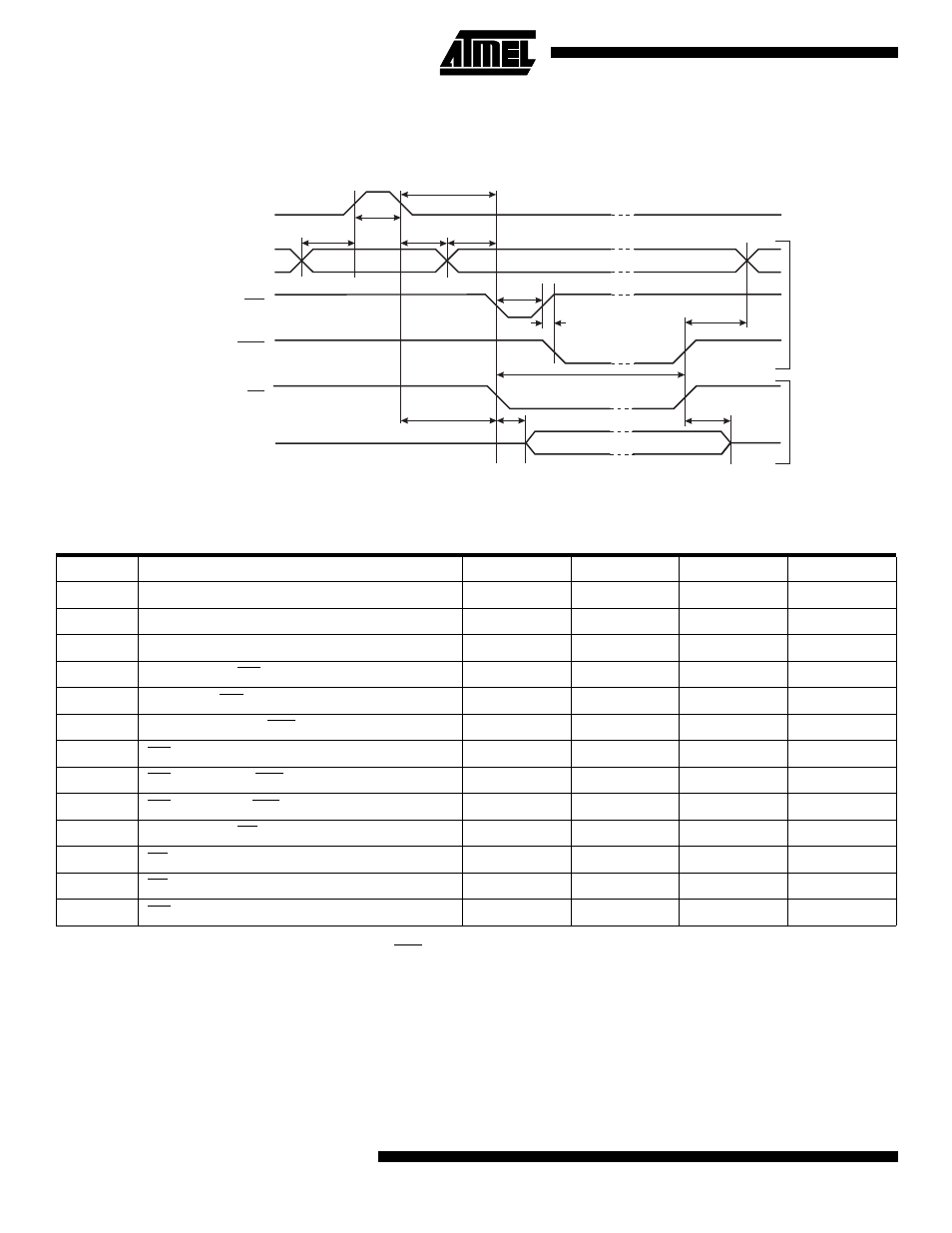

Figure 38. Parallel Programming Timing
Notes: 1. Use t
WLWH_CE
for Chip Erase.
2. If t
WLWH
is held longer than t
WLRH
, no RDY/BSY pulse will be seen.
Table 14. Parallel Programming Characteristics
T
A
= 25
°C ± 10%, V
CC
= 5.0V ± 10%
Symbol Parameter Min Typ Max Units
t
DVXH
Data and Control Valid before XTAL1 High 67 ns
t
XHXL
XTAL1 Pulse Width High 67 ns
t
XLDX
Data and Control Hold after XTAL1 Low 67 ns
t
XLWL
XTAL1 Low to WR Low 67 ns
t
BVWL
BS Valid to WR Low 67 ns
t
RHBX
BS Hold after RDY/BSY High 67 ns
t
WLWH
WR Pulse Width Low
(1)
67 ns
t
WHRL
WR High to RDY/BSY Low
(2)
20 ns
t
WLRH
WR Low to RDY/BSY High
(2)
0.5 0.7 0.9 ms
t
XLOL
XTAL1 Low to OE Low 67 ns
t
OLDV
OE Low to DATA Valid 20 ns
t
OHDZ
OE High to DATA Tri-stated 20 ns
t
WLWH_CE
WR Pulse Width Low for Chip Erase 5 10 15 ms
Data & Contol
(DATA, XA0/1, BS)
DATA
W
rite
Read
XTAL1 t
XHXL
t
WLWH
t
DVXH
t
XLOL
t
OLDV
t
WHRL
t
WLRH
WR
RDY/BSY
OE
t
XLDX
t
XLWL
t
RHBX
t
OHDZ
t
BVWL
