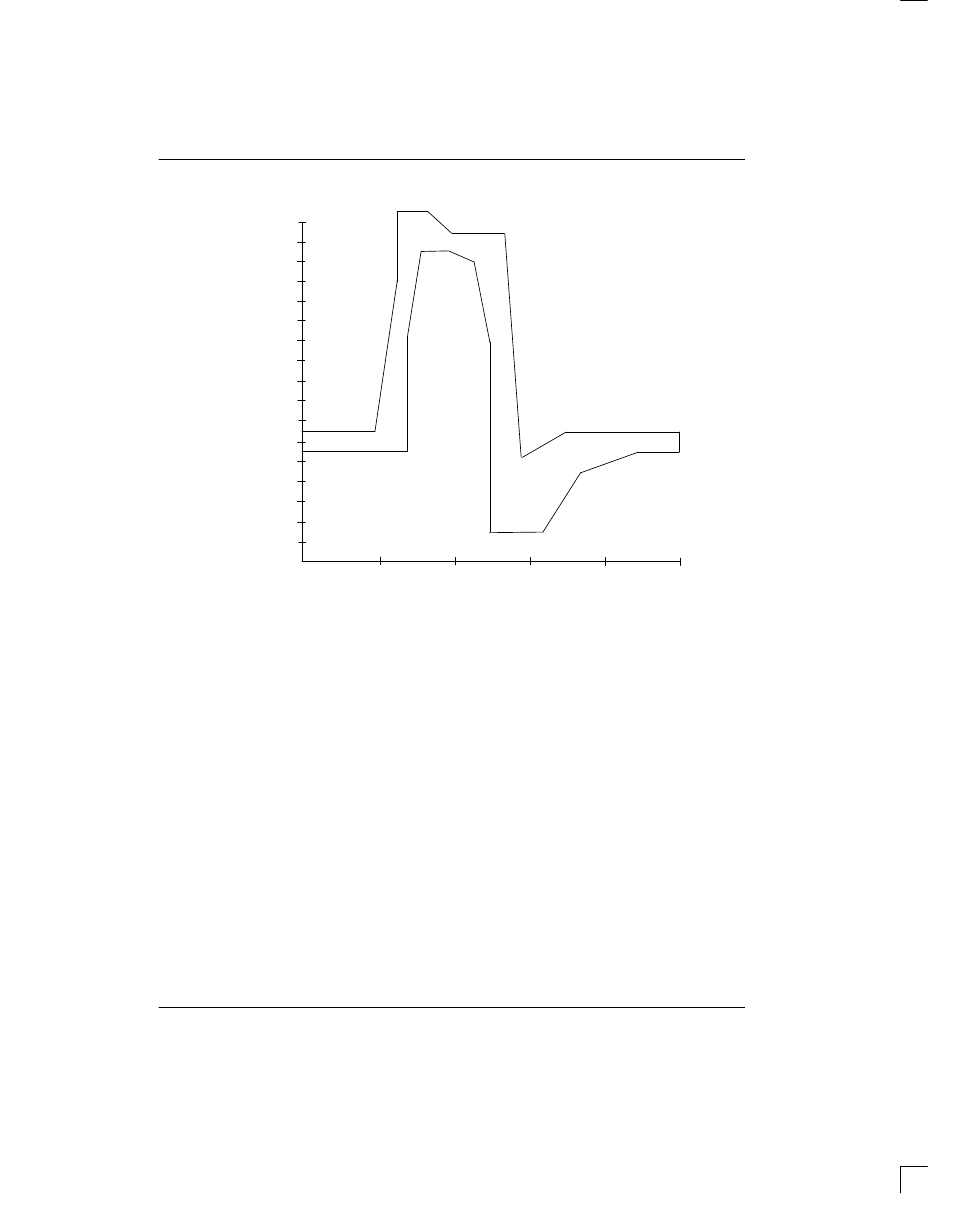

DSX–1 ISOLATED PULSE TEMPLATE Figure 3
1.0
0.5
0.0
–0.5
0
250 500 750 1000 1250
NANOSECONDS
NORMALIZED
ALITITUDE
NOTES:
1. Template shown is measured at the cross–connect point.
2. Amplitude shown is normalized; the actual midpoint voltage measured may be between 2.4 and 3.6 volts.
3. The corner points shown below are joined by straight lines to form the template.
MAXIMUM CURVE MINIMUM CURVE
(0, 0.05) (0, –0.05)
(250, 0.05) (350, –0.05)
(325, 0.80) (350, 0.5)
(325, 1.15) (400, 0.95)
(425, 1.15) (500, 0.95)
(500, 1.05) (600, 0.9)
(675, 1.05) (650, 0.5)
(725, –0.07) (650, –0.45)
(875, 0.05) (800, –0.45)
(1250, 0.05) (925, –0.2)
(1100, –0.05)
(1250, –0.05)
