the accurate frequency by changing the load capacitor value. The widest pulling range can be achieved if

the nominal required load capacitance of the crystal is in the “midrange”, for example 16 pF. The

“pull-ability” of the crystal is defined by its motional capacitance and C

The on chip AFC is capable to correct TX/RX carrier offsets as much as 80% of the deviation of the

received FSK modulated signal.

Note:

There may be other requirements for the TX carrier accuracy with regards to the requirements as

defined by standards and/or channel separations.

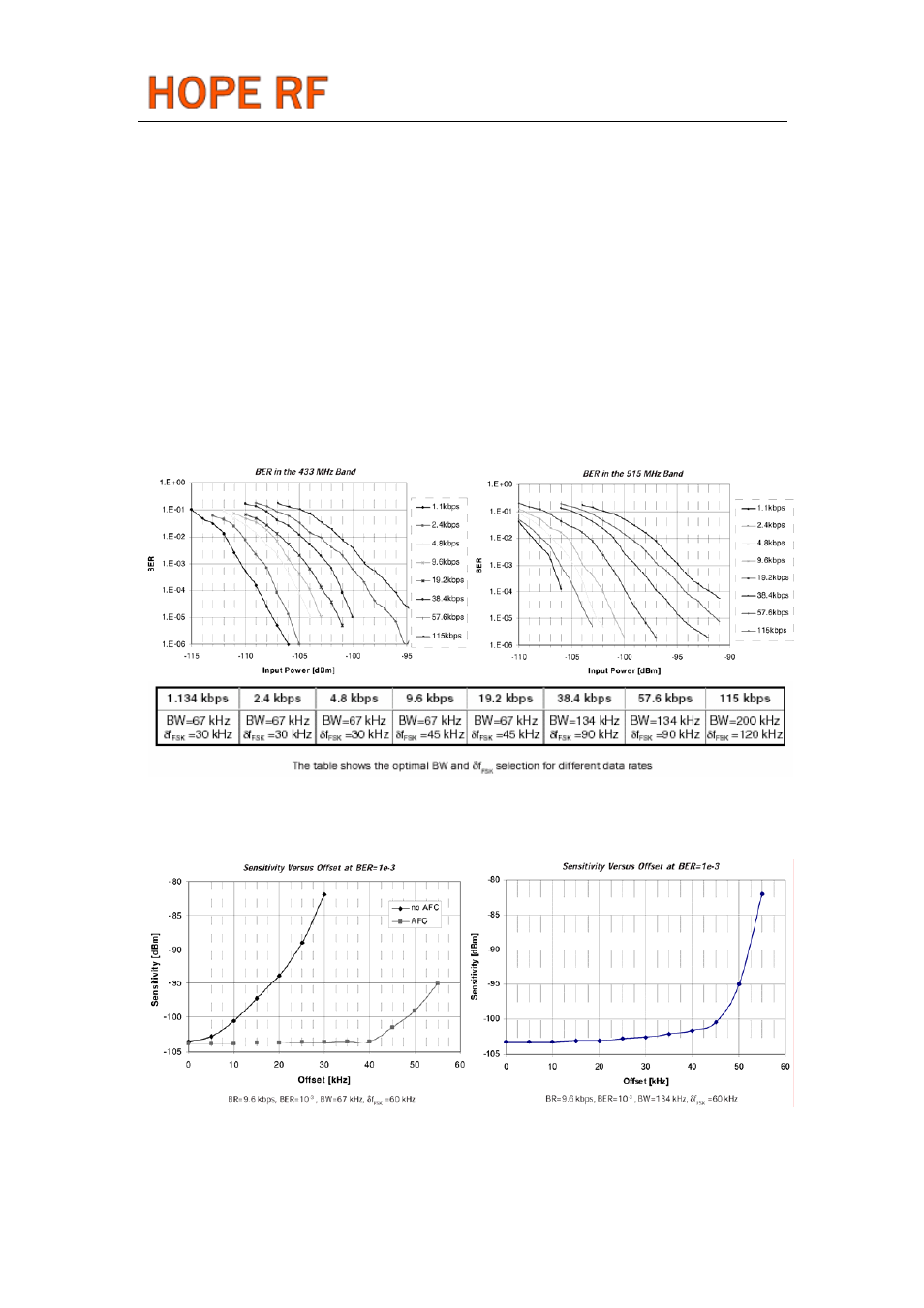

MEASUREMENT RESULTS

BER Measurement Results

Frequency Offset Effected Sensitivity Degradation
