Voyager User’s Manual - MASTER Mode
Page 65
Voyager User’s Manual - MASTER Mode

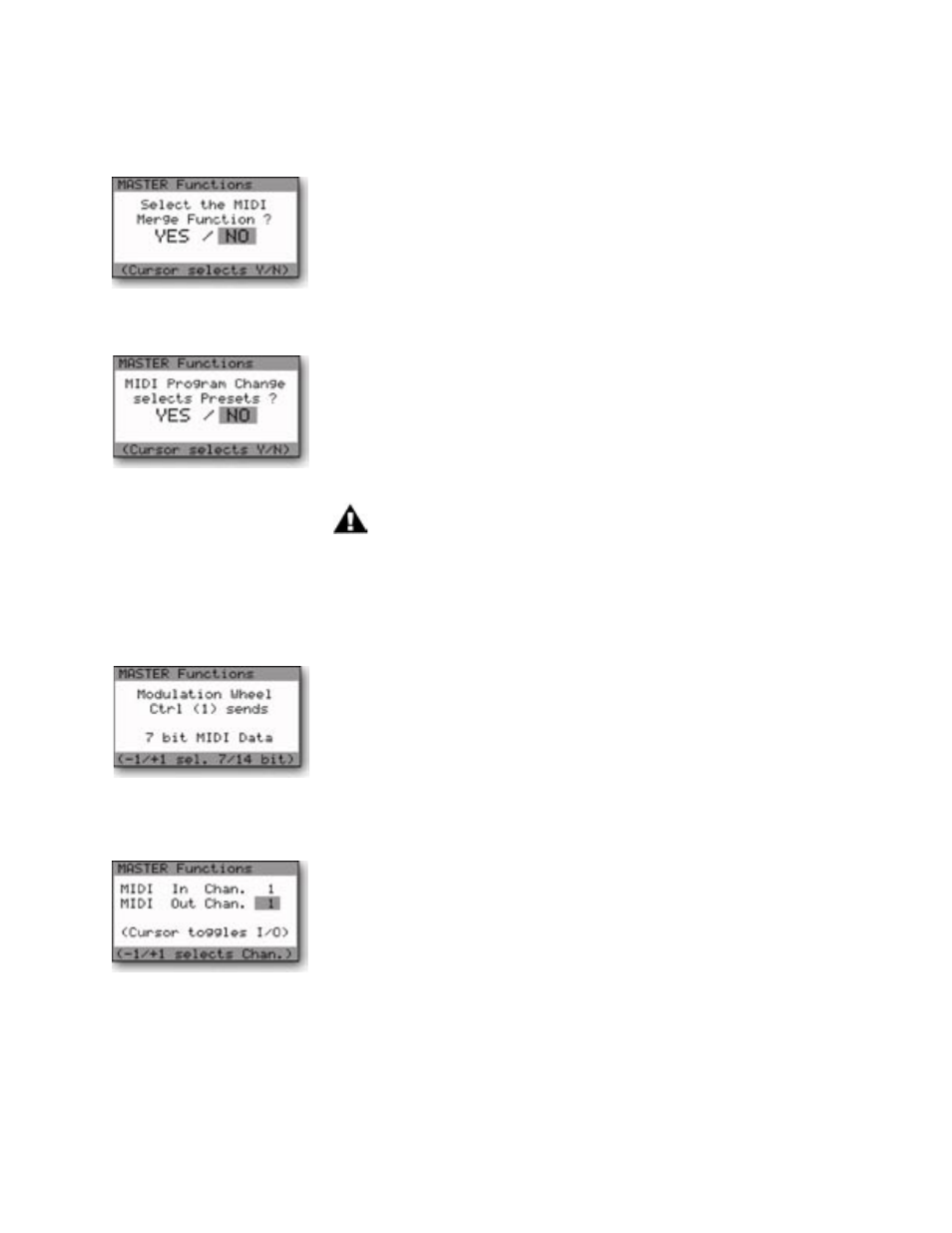

MIDI MOD. WHEEL (Keyboard editions only)
The MIDI Modulation Wheel function allows you to select the transmission
of 7-bit or 14-bit MIDI Control Change (CC) messages from the Mod
Wheel. Use the -1/+1 buttons to change the setting. In 7-bit mode, only
MIDI CC1 is sent when the Mod Wheel is moved. In 14-bit mode, both
MIDI CC1 (Most Significant Byte (MSB)) and MDI CC33 (Least Significant
Byte (LSB)) are sent when the Mod Wheel is moved.
MIDI CHANNELS
This function is used to set the MIDI IN and MIDI OUT channels. Use the
CURSOR to toggle between the IN and OUT parameters, then use the
-1/+1 buttons to change the values.
MIDI MERGE FUNC.
When enabled (‘YES’), the MIDI Merge function passes incoming MIDI
Note ON and Note OFF messages from the Voyager’s MIDI In jack to the
MIDI Out jack. When this function is disabled (‘NO’), only MIDI events
created by the instrument appear at the MIDI Out. To change the setting,
use the CURSOR to highlight the desired choice and press ENTER.
MIDI PRG. CHANGE
The MIDI PRG CHANGE (MIDI Program Change) function enables or
disables the Voyager’s reception of MIDI program changes. When enabled
(‘YES’), incoming MIDI Program Change messages will change the Voyager’s
presets. When this is disabled (‘NO’), only the +/- 1 panel buttons change
the Voyager’s presets. To change the setting, use the CURSOR to highlight
the desired choice and press ENTER.
When the MIDI Program Change function is enabled, the Voyager
will accept both MIDI Program Change and MIDI Bank Select mes-
sages. When this function is disabled, the Voyager will ignore these
messages. In either case, the Voyager’s MIDI LED will blink when a
MIDI message is received on the proper channel.
