Voyager User’s Manual - The Basics
Page 7
Voyager User’s Manual - The Basics
Make your MIDI connections (RME only)
Connect the MIDI Out of the the MIDI device that will control the RME to the MIDI In of the RME. Note
that the RME’s MIDI channel default is Channel 1. This must match the MIDI channel of the MIDI device
controlling the RME.
Configure Output Mode Switch (RME Only)
If you are connecting the Voyager RME to an unbalanced input using 1/4” TS instrument cables, such as an
amplifier combo, or a mixer’s unbalanced inputs, make sure the switch on the back of the RME’s panel is set
to “UNBAL.” When connecting to a balanced input using 3-conductor cables (TRS to TRS or TRS to XLR),
such as the balanced inputs on a mixer or powered monitors, set the switch on the back of the RME to
“600 Ω BAL.”

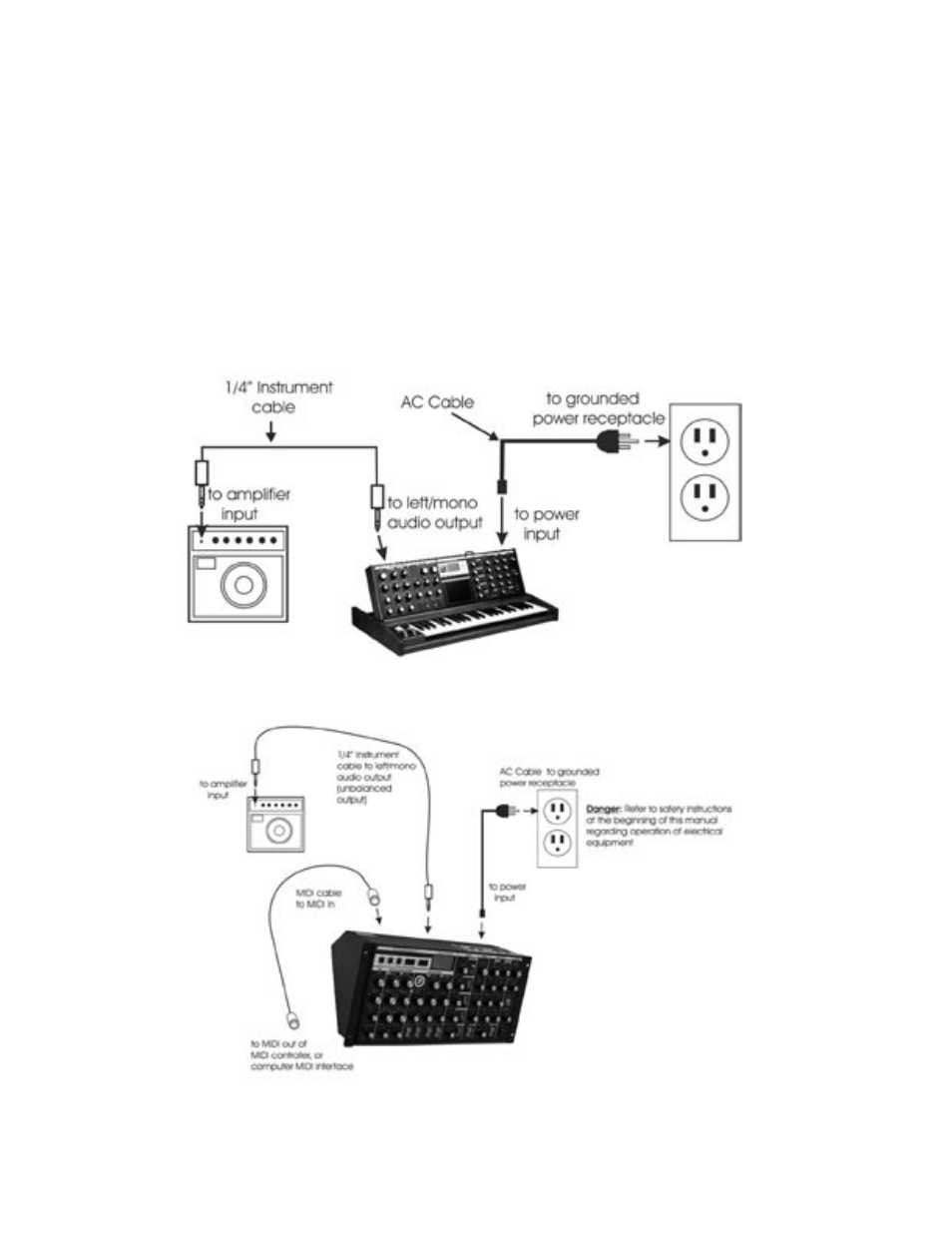

Making connections with the Voyager Keyboard
Making connections with the Voyager Rack Mount Edition
