Voyager User’s Manual - EDIT Mode
Page 55
Voyager User’s Manual - EDIT Mode

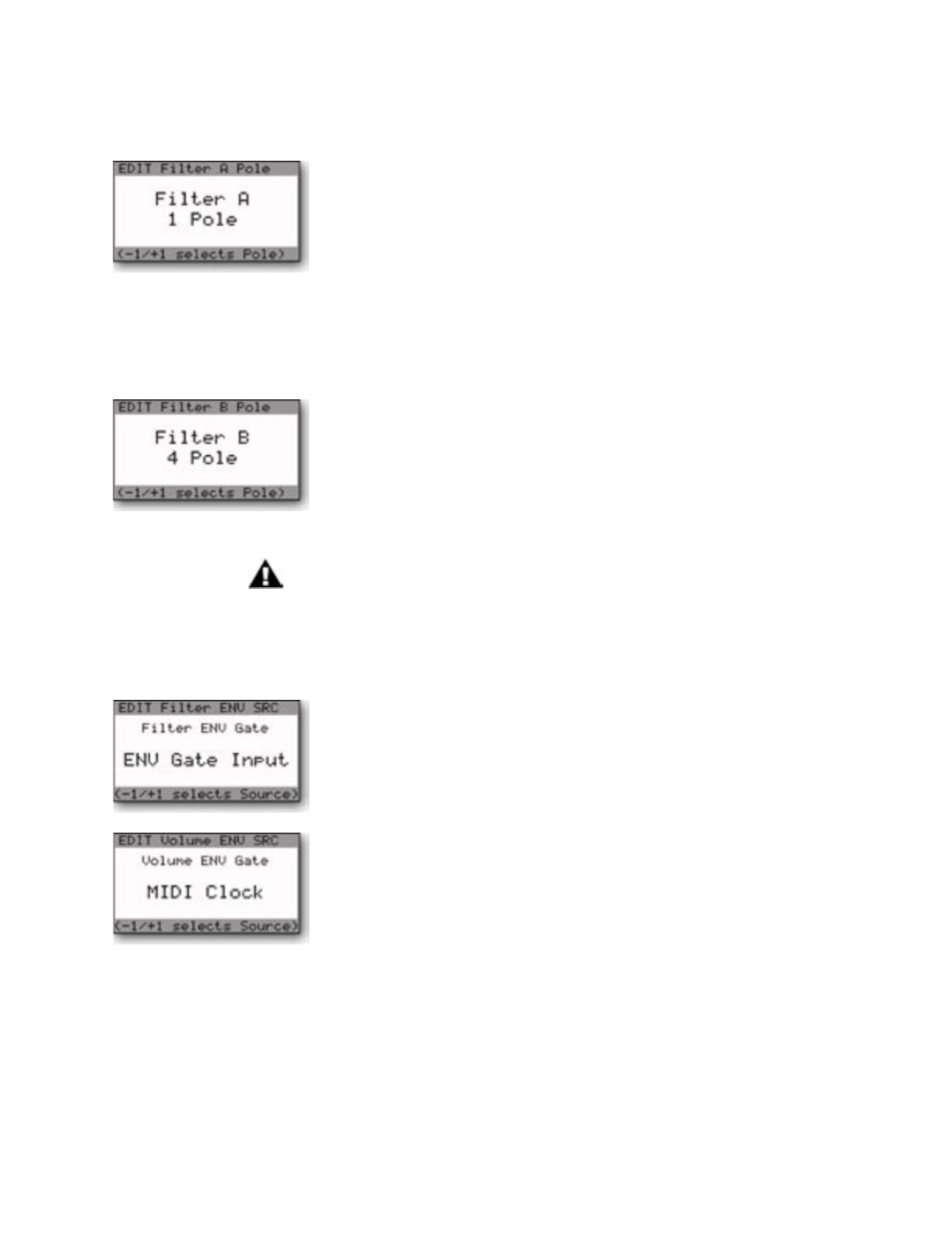

4.1 FIL. A POLE SEL. (Filter A Pole Select)
This function allows you to specify the cutoff slope of Filter A. Filter A is
the filter controlled only by the CUTOFF control. In Dual Lowpass Mode,
the output of Filter A appears on the RIGHT output jack. In Highpass/
Lowpass Mode, it is the Lowpass filter. Use the -1/+1 buttons to select
the cutoff slope, which is specified in ‘poles’ (1, 2, 3 or 4 poles). Each
filter pole adds 6dB/octave of attenuation to the filter cutoff, so a 1 pole
filter has a 6 dB/oct cutoff slope (when it’s a lowpass filter you hear it as
very bright), while a 4 pole filter has a 24 dB/oct cutoff slope (when it’s a
lowpass filter you hear it as smooth and dark, yet warm).
4.2 FIL. B POLE SEL. (Filter B Pole Select)
This function allows you to specify the cutoff slope of Filter B. Filter B is
controlled by both the CUTOFF control and the SPACING control. In
Dual Lowpass Mode, Filter B appears on the LEFT output jack (when
both outputs are connected). In Highpass/Lowpass Mode, Filter B is the
Highpass filter. Use the -1/+1 buttons to select the filter cutoff slope (1, 2,
3 or 4 poles).
4.3 FIL. ENV GATE SRC (Filter Envelope Gate Source)
4.4 VOL. ENV GATE SRC (Volume Envelope Gate Source)
These two Envelope Gate functions allow gate sources other than the
keyboard and the external gate input (the ENV GATE jack) to be assigned
to trigger the Voyager’s Envelope Generators when the Envelope Gate
switch is in the ‘ON/EXT’ position. The default parameter for both
Envelope Sources is ‘Envelope Gate Input’ .
The assignable Gate Sources are:
Changes made to the Filter A or B Pole menus take effect immediately.
You do not need to press ENTER.
- Envelope Gate Input (this defaults to ON when
nothing plugged into the ENV GATE jack)
- Touch Gate (this is the gate signal from the
TOUCH SURFACE controller)
- S&H Gate (this defaults to the LFO square wave
when nothing plugged into the S&H GATE jack)
- MIDI Clock
- Keyboard Gate
- Gate is ON
- Gate is OFF
