Voyager User’s Manual - The Basics
Page 13
Voyager User’s Manual - The Basics

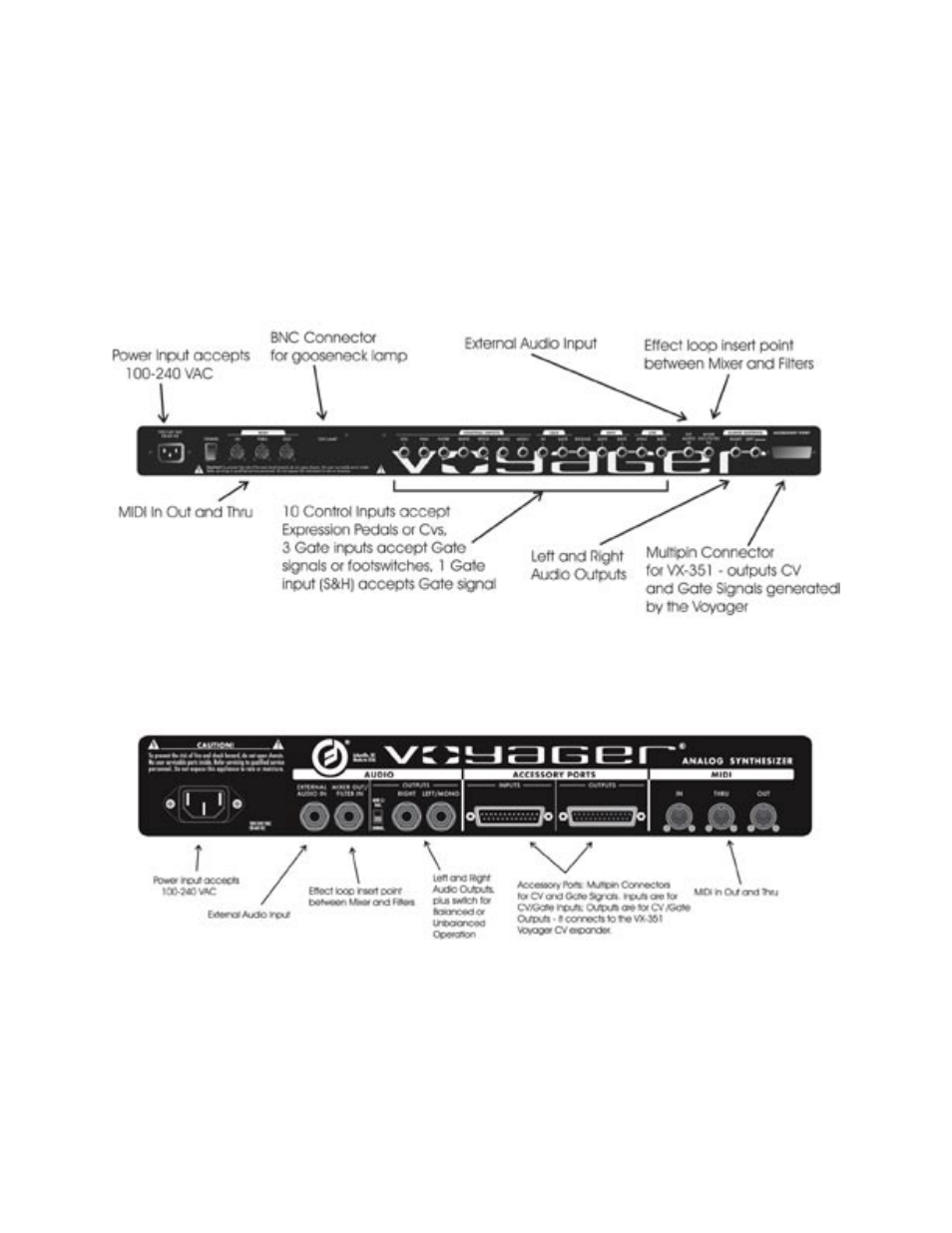

Back Panel:
The Voyager’s back panel offers connections for Power, MIDI, Control Voltage I/O and Audio I/O. For Voyag-
er Keyboards, 14 CV inputs are provided on 1⁄4“ jacks. A jack with a red nut indicates a CV/Expression Pedal
input, while a jack with a blue nut indicates a gate/footswitch input. CV outputs are provided on a 25-pin ac-
cessory port. On the RME, CV input and output connections are provided on two 25-pin accessory ports.
Back Panel of Voyager Keyboard Editions
Back Panel of Voyager Rack Mount Edition
