OIL FILTER RELOCATION KIT - Yamaha V-Star 1100 Custom
and Classic Models

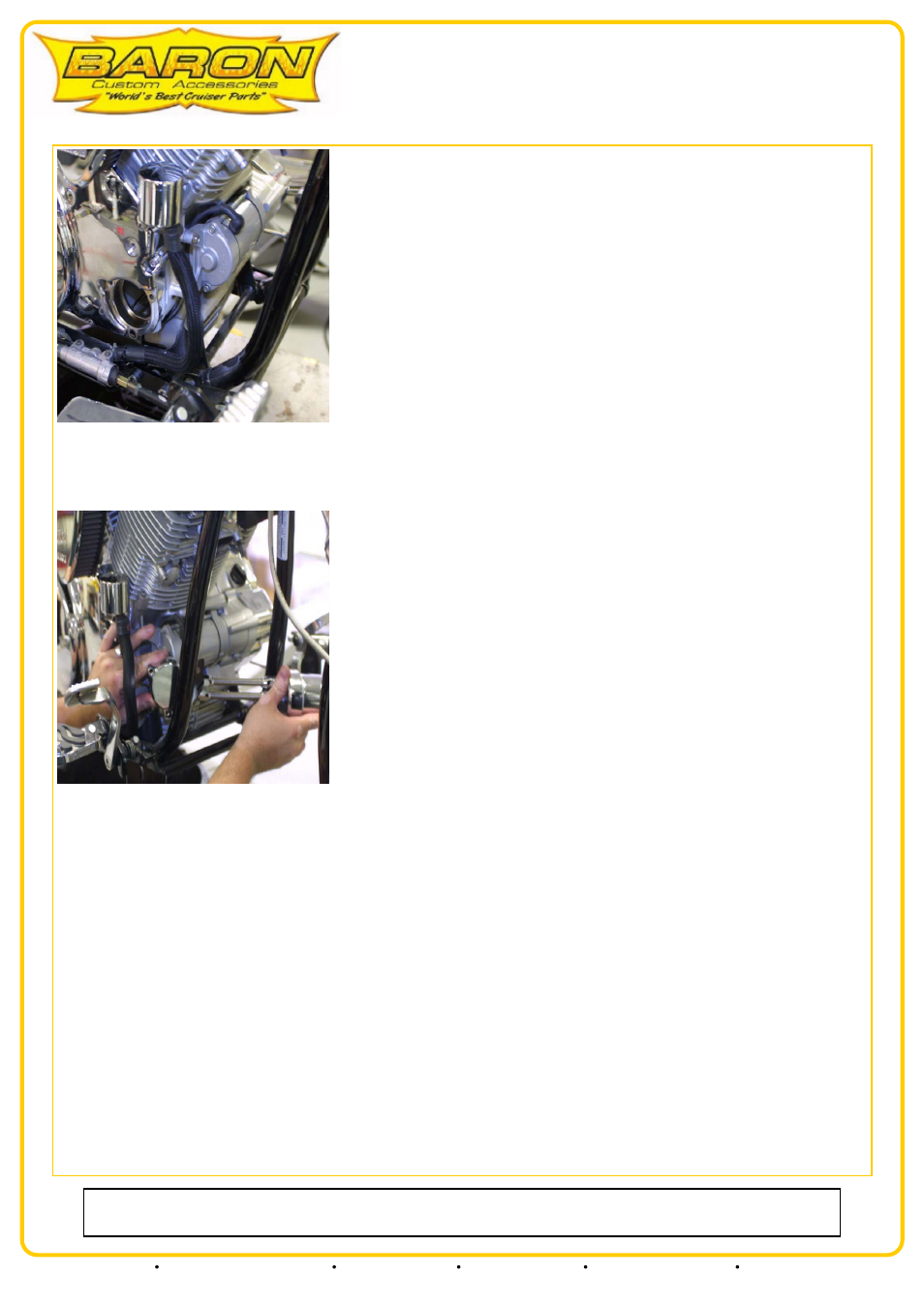

7. Install the new oil relocation assembly by sliding the diverter between the down tubes of the frame and the
front of the engine taking care to protect the part from contacting the frame or motor as seen:
Secure oil diverter into engine being sure to have installed the large black and red O-rings from the original oil
filter assembly you removed earlier. Using the two stock bolts you removed in step 4 thread these into the
appropriate upper two mount holes. Use the supplied M6x55 bolt and copper crush washer in the lower hole
with the crush washer under the head of the bolt. Be sure the small black O-ring that inserts into the engine
case around the lower hole has remained in place. Tighten the three bolts using a crisscross pattern in three
stages.
8. There are two holes left vacant on right side crankcase cover. Use the supplied M6 button head screws and
washers to fill these holes.
9. Install the chrome filter mount/holder onto the stock black tube (cross bar) between frame down tube
members in front of engine - leave it loose at this time.
10. Adjust and tighten filter holder on frame.
Our install guides provide a basic outline on the proper installation of our products. Further tuning and/or
fitment may be required. Barons bears no responsibility on installation costs associated with this product.
