9. Assembly
68
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
Transition Installation (TR-4734)
BEFORE CUTTING THE OPENING CHECK THAT TR-4734 IS THE TRANSITION THAT
WAS ORDERED.
When installing the GSI aeration transition, it will be necessary to field cut a hole into the bottom sidewall
ring (usually straight across from the unload auger).
for proper dimensions of cut out.
The base angle will also need to be cut at entrance collar cut out. Take note of the diagram showing
the 1" dimension from bottom of entrance collar side bracket to concrete. This is important for proper fit
of transition.
NOTE: Entrance collar side bracket must be bolted on the inside of the bin sidewall.

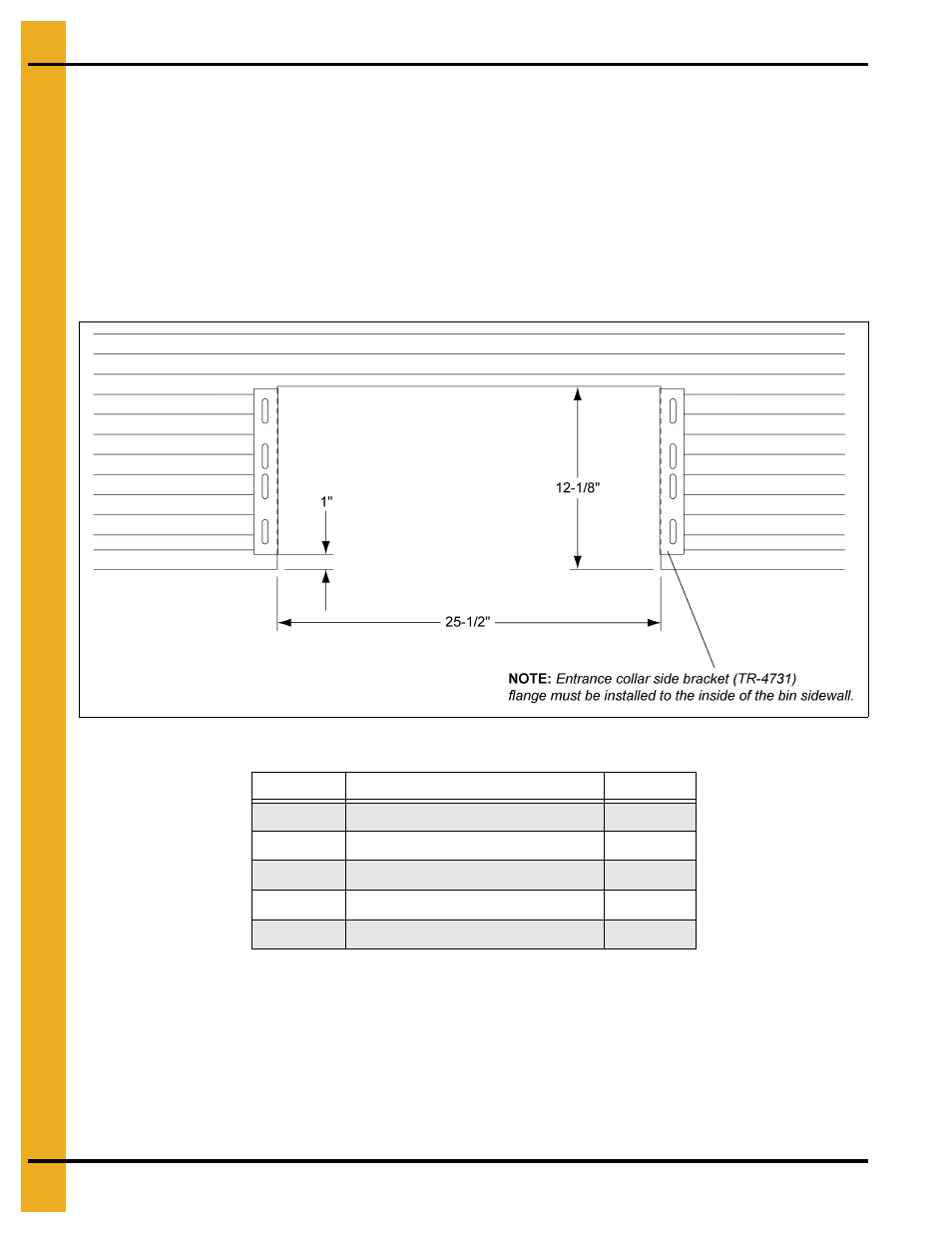

Figure 9V As Viewed from Inside Bin
Part #
Description
Qty
S-275
5/16"-18 x 3/4" Bin Bolt Grade 5
125
S-280
#10-16 x 5/8" Self-Drilling Screw
10
S-3651
Tube Caulk Gray Butyl #506-15
1
S-396
5/16"-18 Hex Nut Grade 2
125
S-7264
Spec Neoprene Seal Strip w/ ADH
10'
