24' Leveling Band Location

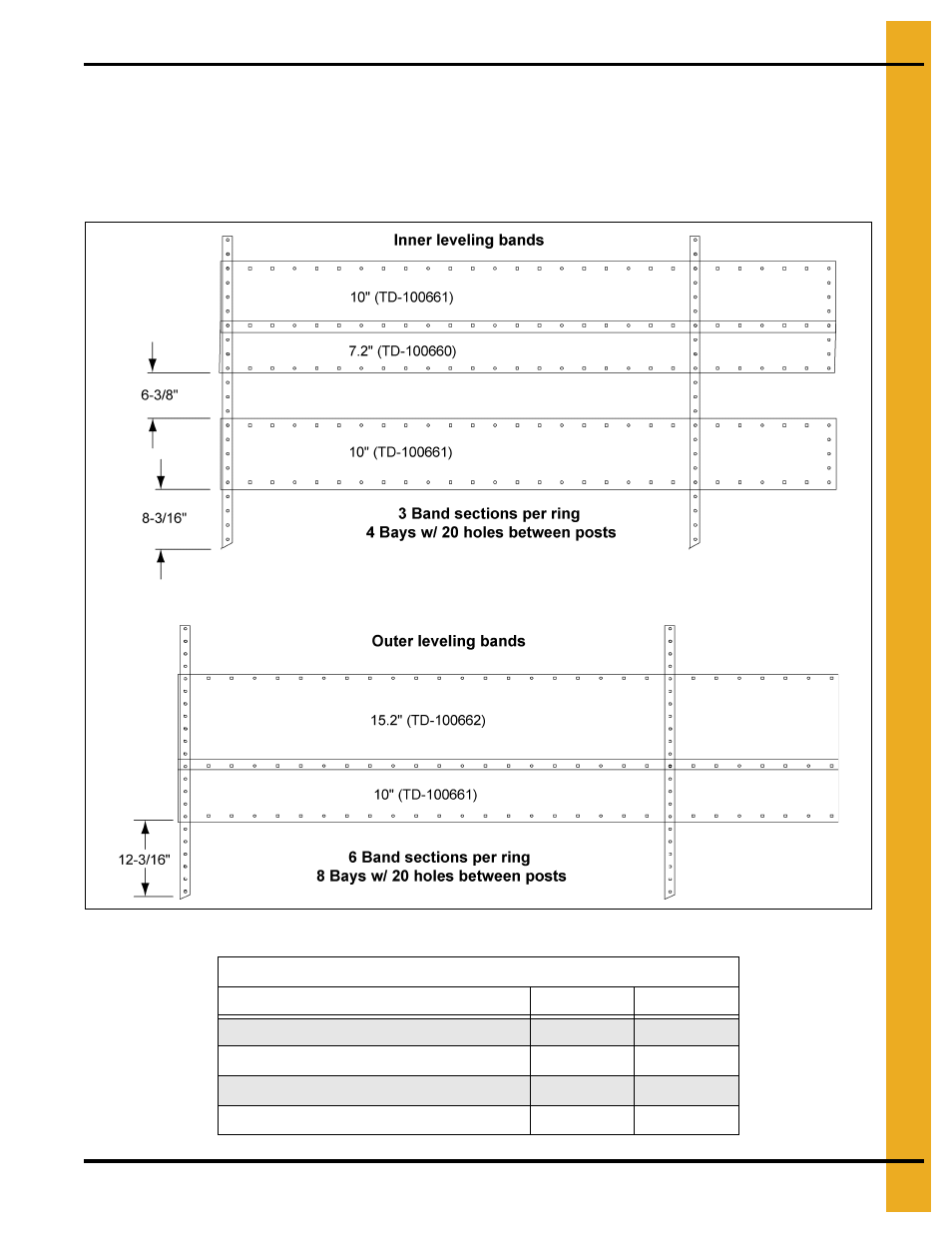

Position leveling bands as shown in the Figure 8Q .
Use two (2) 5/16" x 3/4" bin bolts to attach bands to posts. Also use 5/16" x 3/4" bin bolts to join band
sections. Note that band sections connect to each other only at end most holes until completing
the circle where an overlap may occur.
Figure 8Q
24' Leveling Band Grain Depth Settings
24' Old New
Inner 24.57" Same
Outer 14.2" 12.2"
Dump Time Estimate (Corn at 105°) 32 Sec. 28 Sec.
Grain Temperature Sensor Distance from Floor 10-1/2" 8-1/2"
