32 PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
7. “C” Channels
Stiffener to “C” Channel Bracket Installation
Install the stiffeners on the outside of the bin and the wall brackets on the inside of the bin. The wall
brackets are to be positioned with the brackets top hole matching the first hole up from the horizontal seam
(not counting the horizontal seam). Bracket to sidewall connection using a 3/8" x 1-1/2" bolt (S-2086), head
outside, with a neoprene washer (S-3558) against the wall on the inside.
(See Figure 7A.)

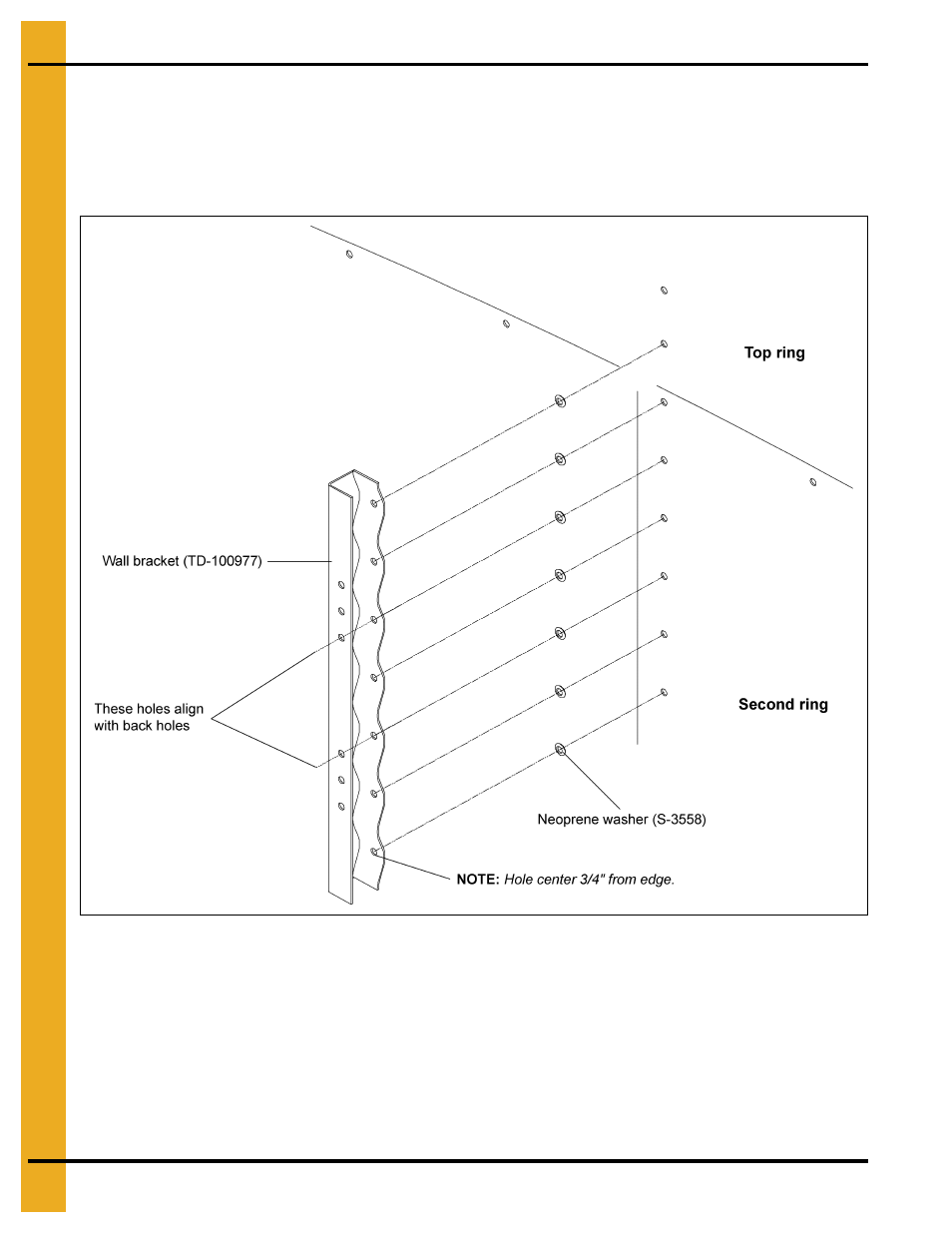

Figure 7A
