8. Installation
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
43
Outer Dump Chutes

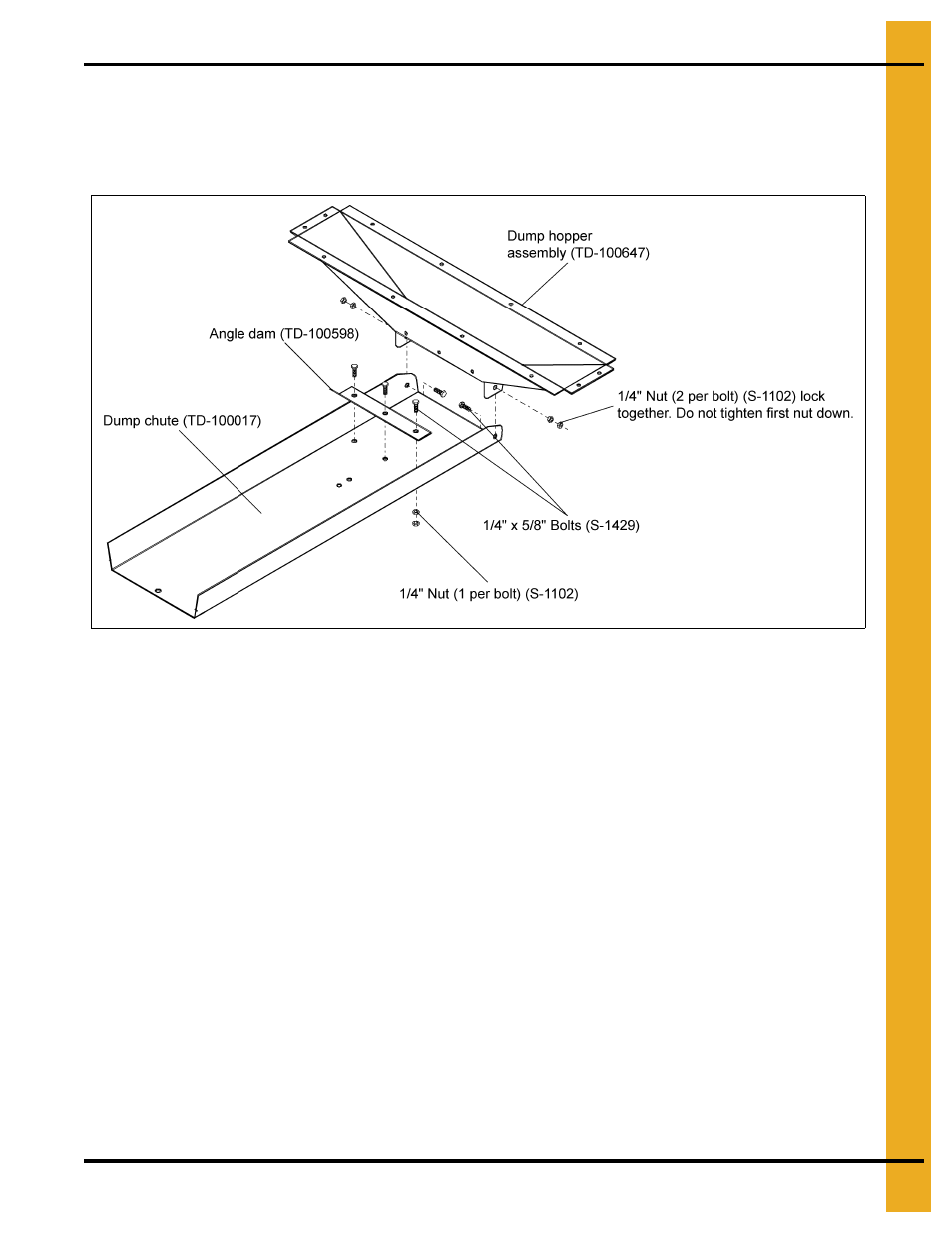

Bolt a angle dam (TD-100598) to each dump chute using three (3) 1/4" x 5/8" bolts and nuts, as shown in
. Use 1/4" x 5/8" bolts and double nuts to fasten dump chutes to hopper. Do not tighten first
nut down. Lock second nut to first nut and make sure chutes raise and lower FREELY.
Figure 8L
