8. Installation
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
45
30' Leveling Band Post Installation
Install the leveling band posts on the floor as shown in
The fourth, seventh and tenth holes in the floor sheets indicate the location of the leveling band posts.
Attach with 5/16" x 1-1/4" bin bolts (S-277). In the fourth and seventh hole there will be ten (10) posts
(1 at every third sheet). In the tenth hole there will be six (6) posts (1 every fifth).

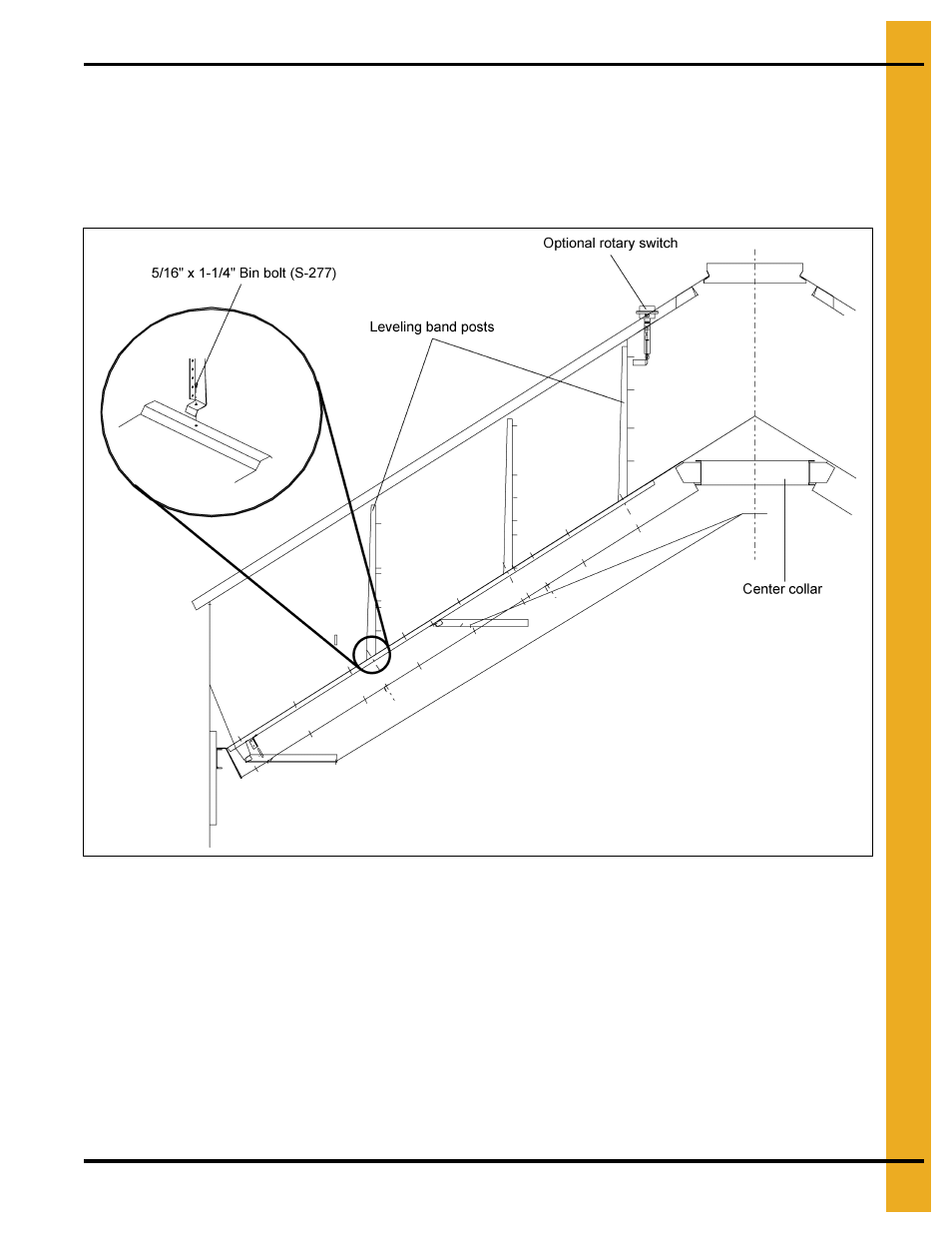

Figure 8N
