7. “C” Channels
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36' 33
“C” Channel Installation
Fasten the rolled “C” eave members to the wall brackets in the upper two (2) holes of the top set of
three (3) holes leaving the bolts loose.
Install the splice plates at the rolled “C” eave member seams using 3/8" x 1" flanged hex bolts and nuts.
Tighten all bolts.
(See Figure 7B and Figure 7C.)

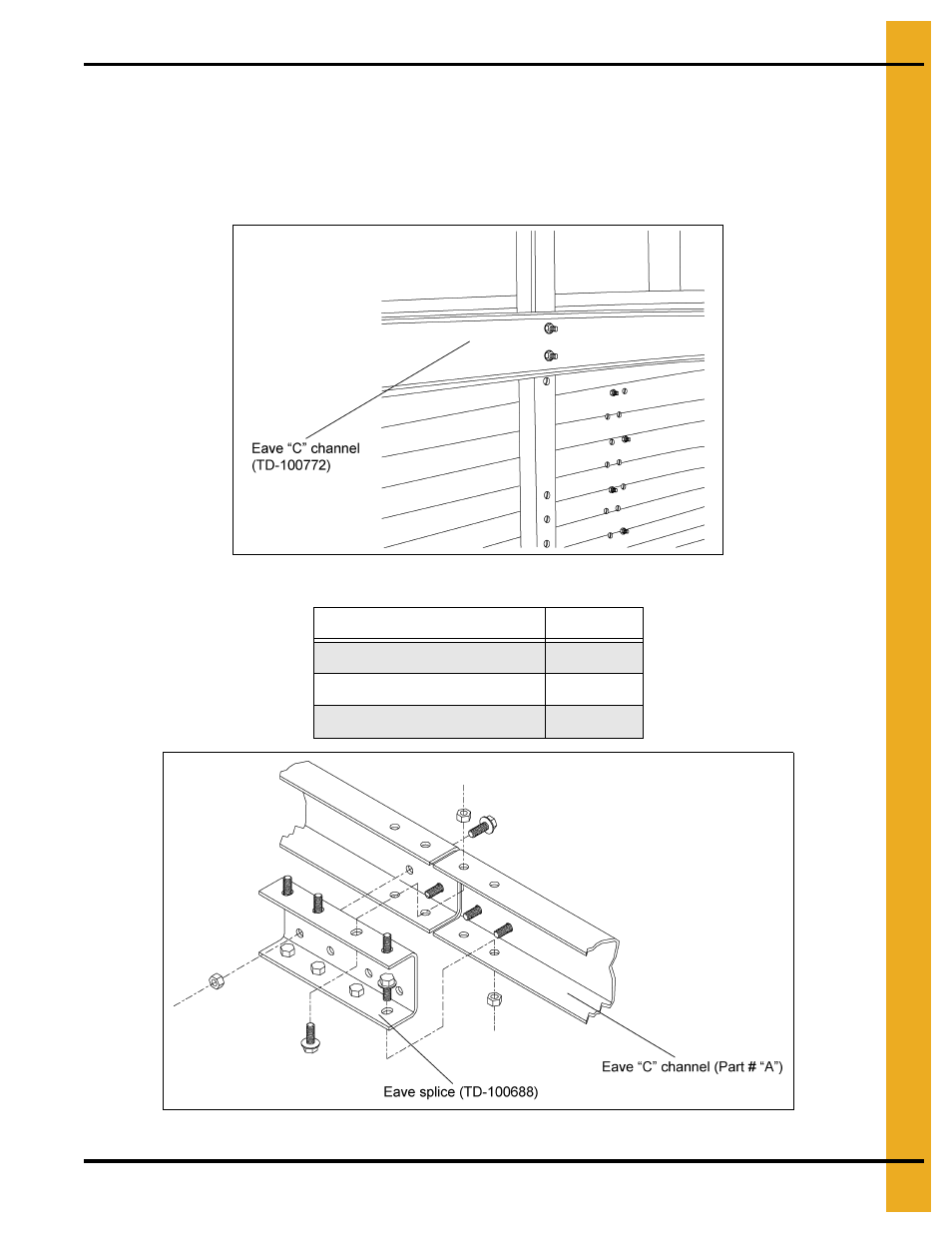

Figure 7B “C” Channel Attachment
Figure 7C
Nominal Diameter of Tank (Ft.) Part # “A”
24' TD-100678
30' TD-100643
36' TD-100731
