52 PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
9. Assembly
Pulley Assembly
Position the pulley assembly to the cross angle in the middle of the center collar assembly. Use a
3/8" x 1" hex head cap bolt to fasten assembly to the cross angle. Position the pulley in the direction of the
desired winch location on the sidewall.
(See Figure 9A.)

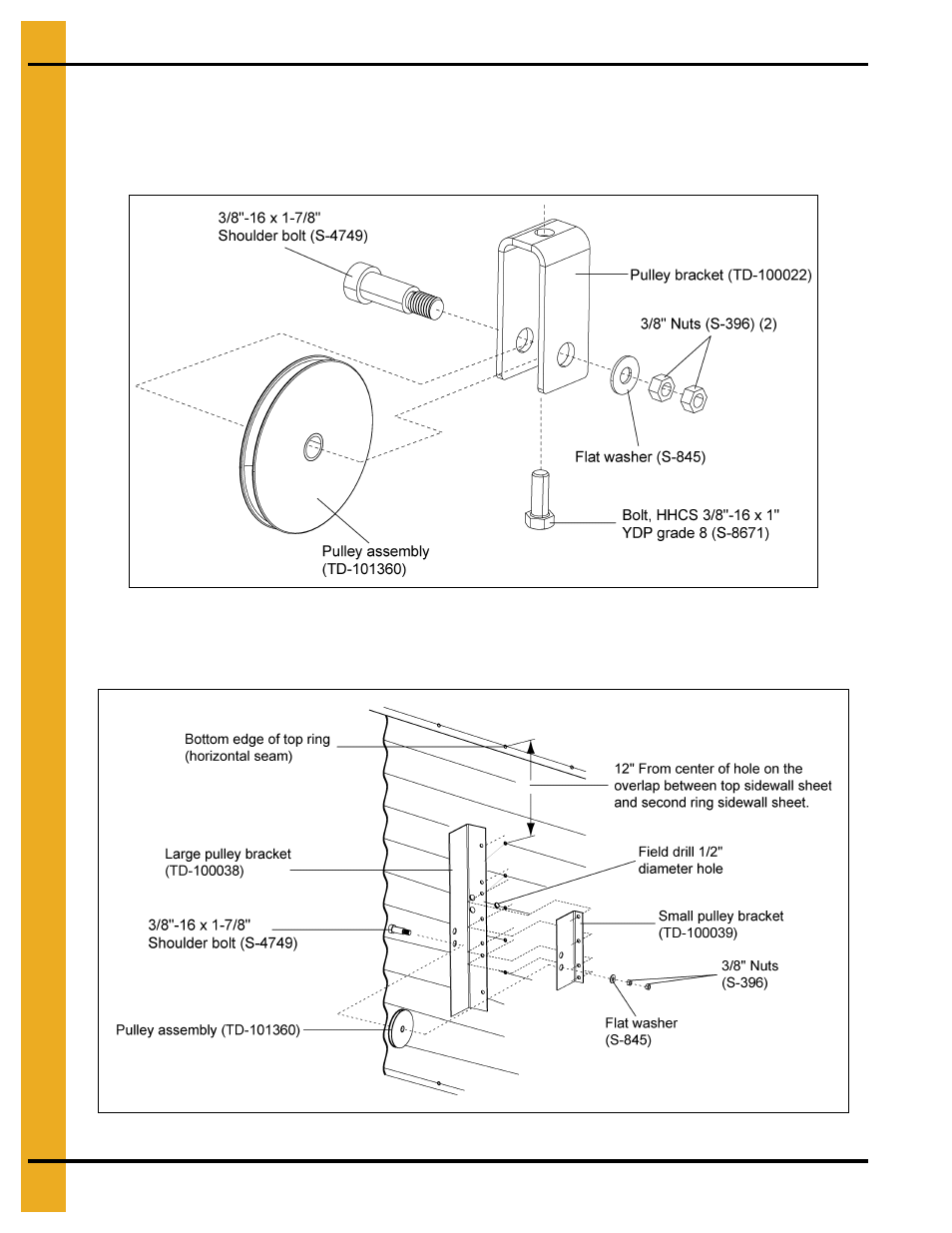

Figure 9A
Field drill five (5) 3/8" diameter holes as shown at left. Attach the pulley assembly with 5/16" x 3/4" bolts
with the neoprene on the inside of the bin.
(See Figure 9B.)
Figure 9B
