9. Assembly

PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'

42" Fan Diffuser Instructions and Installation

Bolt the long side of the hangers to the endmost slots of the top plate (TD-100665) as shown in

Hold the top plate up under the bottom flange of the “C” channel in front of the fan opening. Mark and drill
four (4) 3/8" holes into bottom flange using diffuser hangers as a guide. Using 5/16" x 3/8" bolts and nuts
bolt the top plate to the “C” channel.

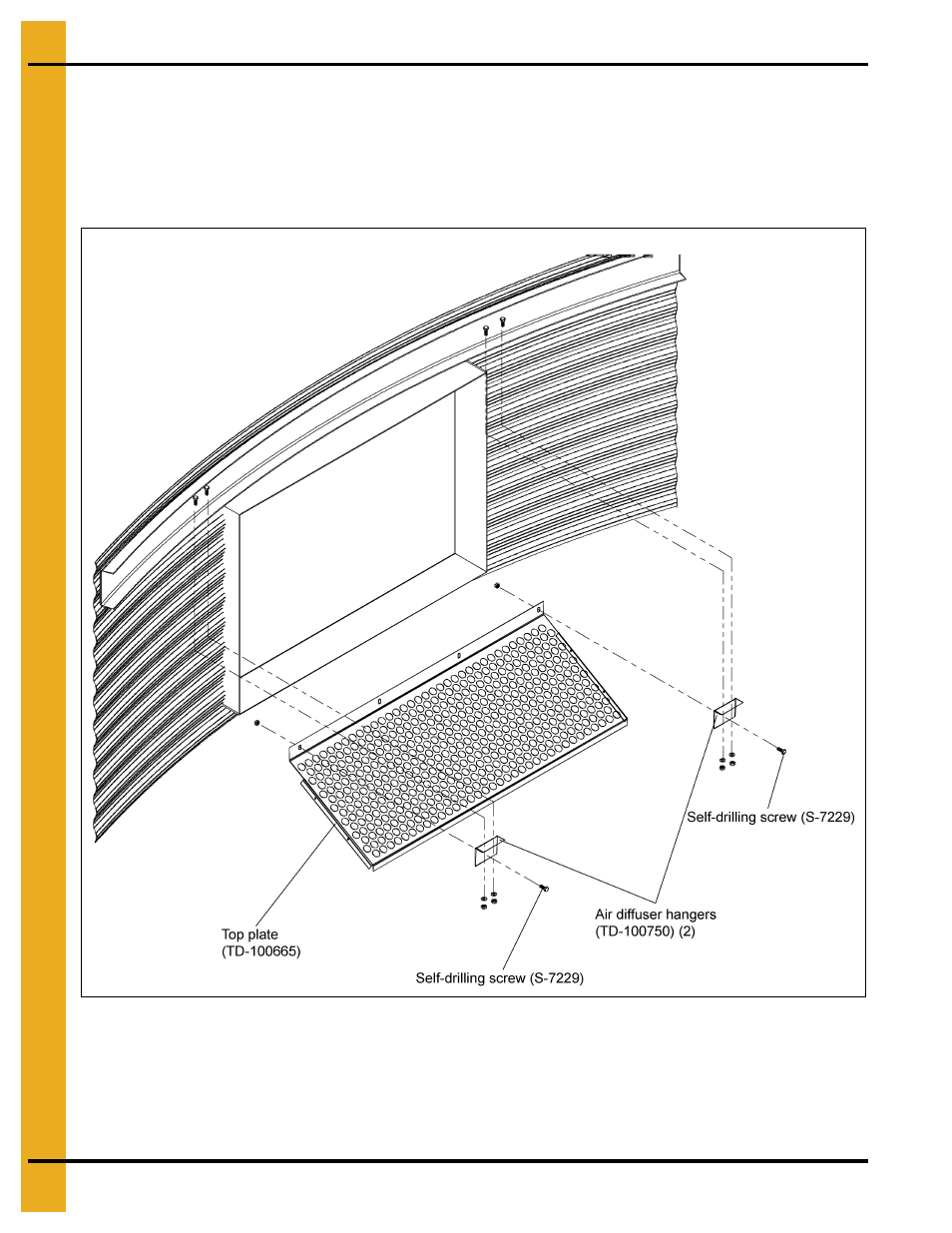

Figure 9I
