6. Stiffener Details
30 PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
Stiffener Installation and Location
When installing bottom stiffeners, you may find that in some cases the stiffener with base plate attached
will not rest on the foundation (due to unlevel concrete, etc.). Shim plates have been furnished and should
be used to fill opening between base plate and concrete.
IMPORTANT: If shim plates are not used where required, the downward pressure of the stiffeners will not
be transferred directly to the foundation and bin failure could result.

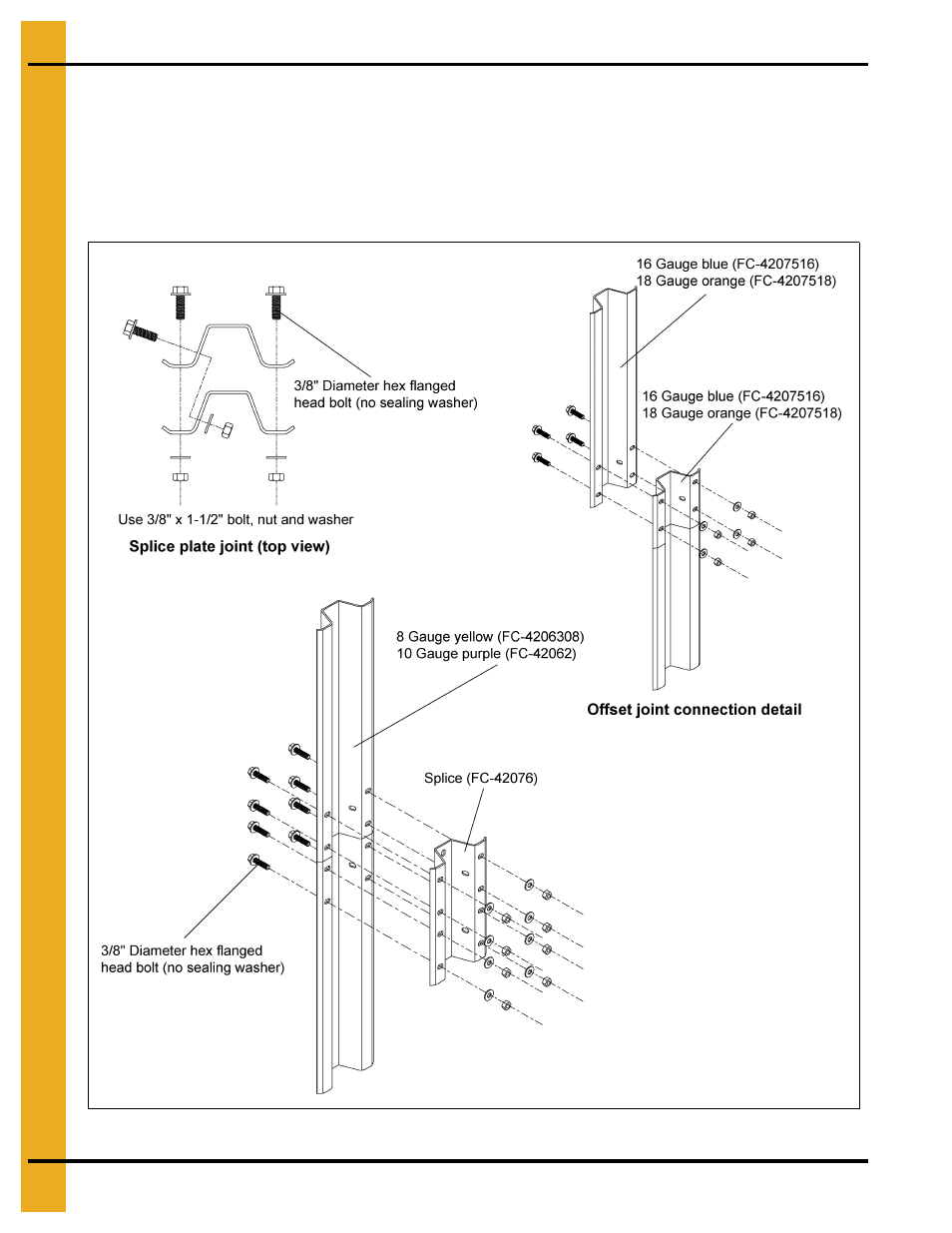

Figure 6D
