Large Platform Assembly
For 42" Fan
Before assembly of any platform, read the entire instructions to assure proper placement and assembly.
for proper location of large platform. Begin by assembling the large platform support
frame using 7/16" x 1" bolts on all connections. Use 5/16" x 1-1/4" bin bolt to attach the platform vertical
supports to the sidewall stiffeners. Be sure and place the 5/16" x 1-1/4" bolts from the inside of the bin to
the outside. This will provide maximum weather protection.

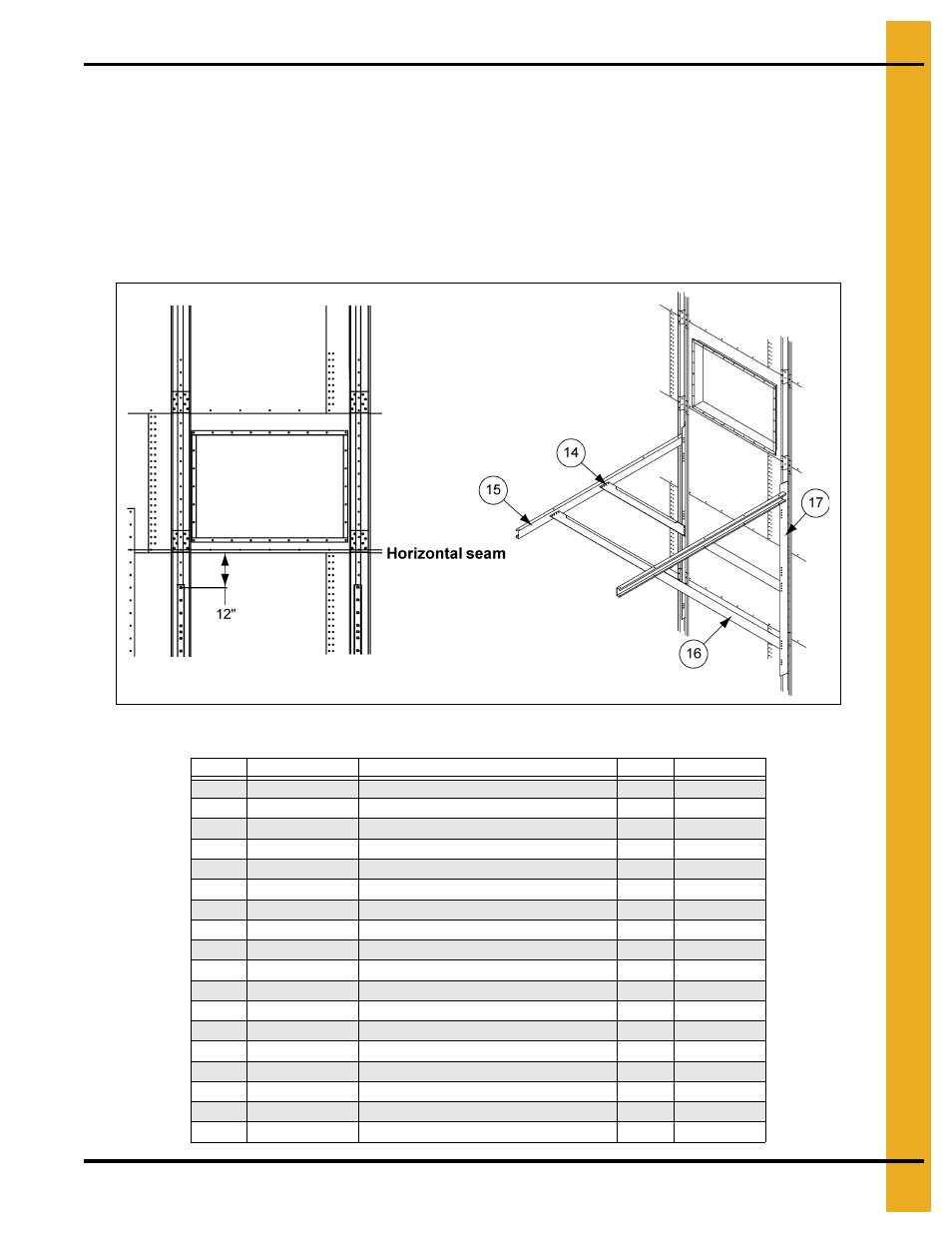

Figure 9R
Ref #
Part #
Description
Qty
Weight
1
TD-100051
Channel Bracket
10
4.87
2
TD-100052
Handrail Post 49-3/4"
7
55.47
3
TD-100053
Toeboard 71-1/2"
1
4.99
4
TD-100054
Toeboard 92"
1
6.42
5
TD-100055
Toeboard 95-1/2"
1
6.67
6
TD-100056
Handrail 71-1/2"
2
17.07
7
TD-100057
Handrail 92"
2
22.98
8
TD-100058
Handrail 95-1/2"
2
22.81
9
TD-100063
Floor Plank 95-1/2"
13
163.35
10
TD-100065
“X” Brace Strap 94-5/16"
2
8.75
11
TD-100068
Mid Channel Support 88"
3
58.37
12
TD-100069
Side Channel Support 96"
2
50.46
13
TD-100071
End Channel Support 92-1/2"
2
49.15
14
TD-100085
Short Knee Brace 72-9/32"
2
54.51
15
TD-100086
Support Channel 98-3/8"
2
53.08
16
TD-100087
Long Knee Brace 114"
2
85.98
17
TD-100685
Vertical Support 94"
2
63.64
N/S
TD-100091
Large Platform Hardware Package
1
14.35
