9. Assembly
62
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
Access Door Platform (TDP-5012)
Before assembly of any platform, read the entire instructions to assure proper placement and assembly.
for proper location of access door platform. Begin by assembling the access door
platform support frame using 5/16" x 3/4" truss head bolts and nuts. When attaching platform vertical
support to bin sidewall field drill sixteen (16) 3/8" diameter holes for each support spaced every 4". Be sure
and use 5/16" x 3/4" bin bolt on vertical support to sidewall. Special attention should be taken when
assembling the platform support that the support brace is placed correctly.
Now proceed to the platform floor. Align holes on platform floor with holes on platform support and bolt
together using 5/16" x 3/4" truss head bolt and nuts. Next, assemble handrail posts, handrails and
handrail braces.

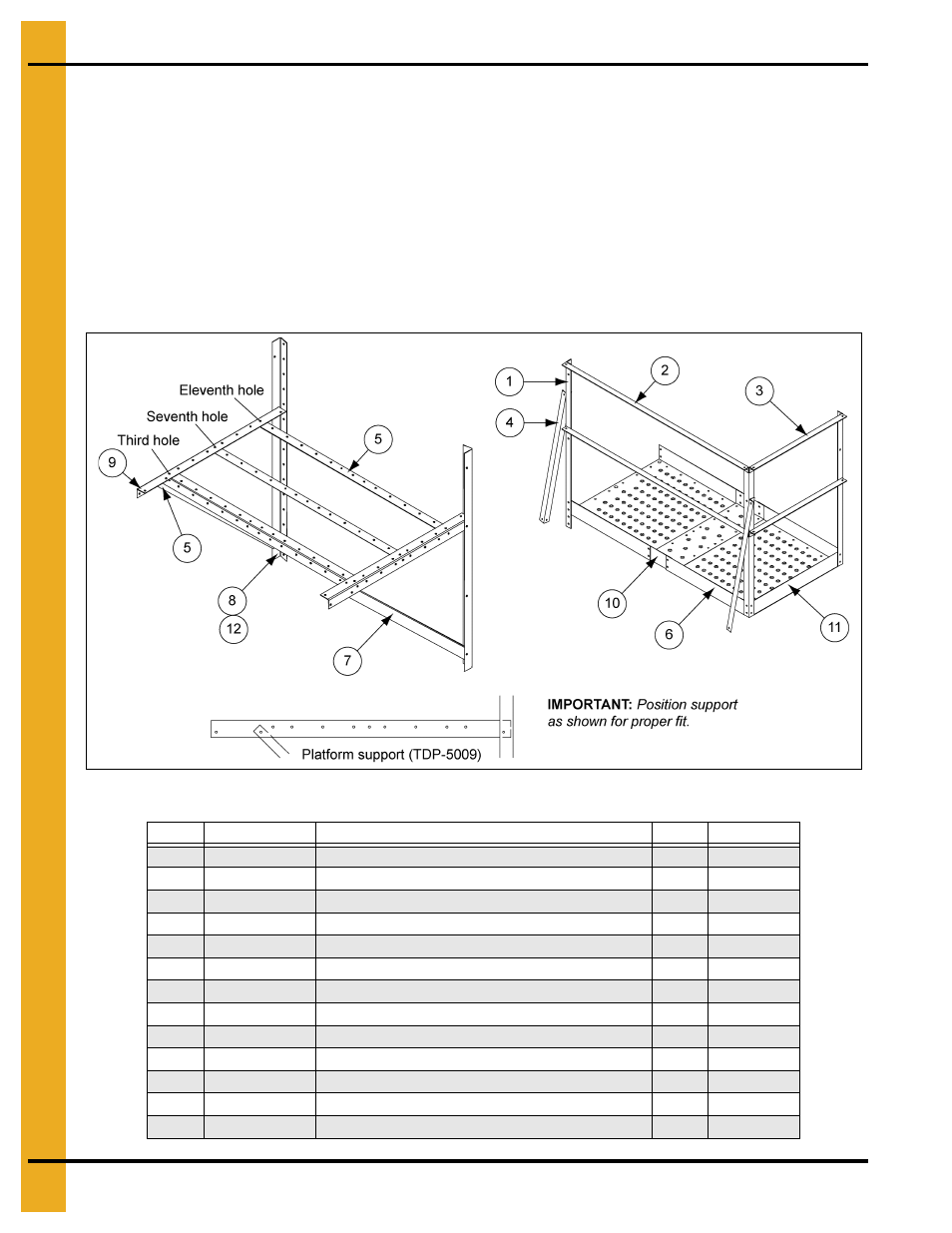

Figure 9N
Ref #
Part #
Description
Qty
Weight
1
LS-371
Platform Vertical Angle 42"
3
11.38
2
TDP-5000
Handrail 59"
2
10.15
3
TDP-5002
Handrail 30"
2
10.15
4
TDP-5003
Handrail Brace 36-29/32"
2
6.34
5
TDP-5005
Floor Brace 58-1/2"
3
26.11
6
TDP-5006
Platform Floor 37-7/8"
2
38.23
7
TDP-5007
Support Brace 50-21/32"
2
15.08
8
TDP-5008
Sidewall Brace 58"
2
19.65
9
TDP-5009
Platform Support 43-1/2"
2
12.95
10
TDP-5010
Platform Floor Splice 37-1/2"
1
6.24
11
TDP-5011
Platform Toe Plate 29-3/4"
1
3.29
12
TDP-5008N
Sidewall Brace 2.66"
2
16.61
N/S
TDP-5014
Access Door Hardware Package
1
5.41
