4. Hardware
20
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
Location of Accessories

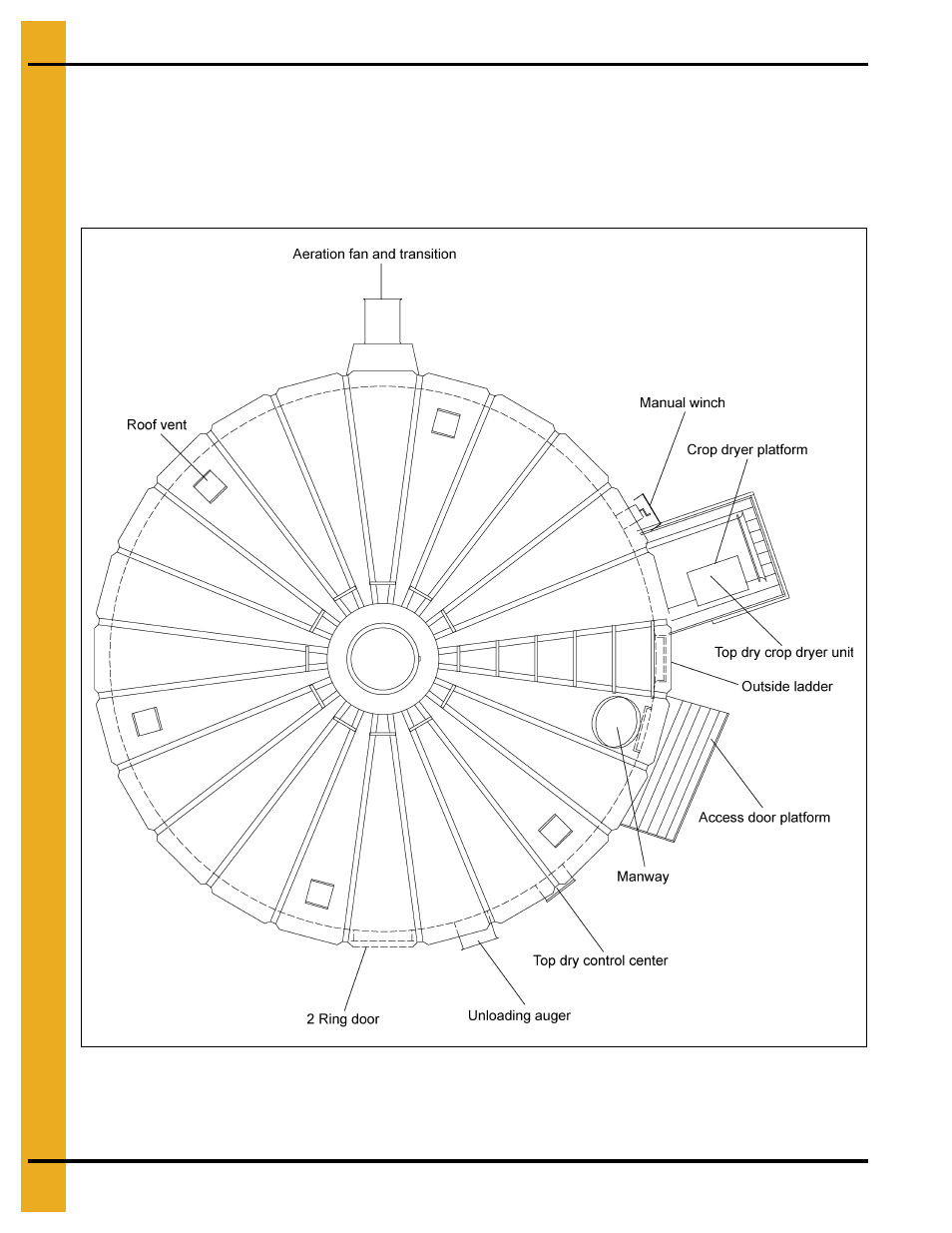

Below is a typical Top Dry bin layout showing suggested locations of Top Dry accessories. When locating
the manway be sure the outside ladder will not interfere with other accessories below. Roof vents should
be spaced evenly around the roof. (Quantity will vary with individual systems.)
NOTE: The Top Dry system should be provided with a dependable equipment ground.
Figure 4B
