9. Assembly

PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'

57

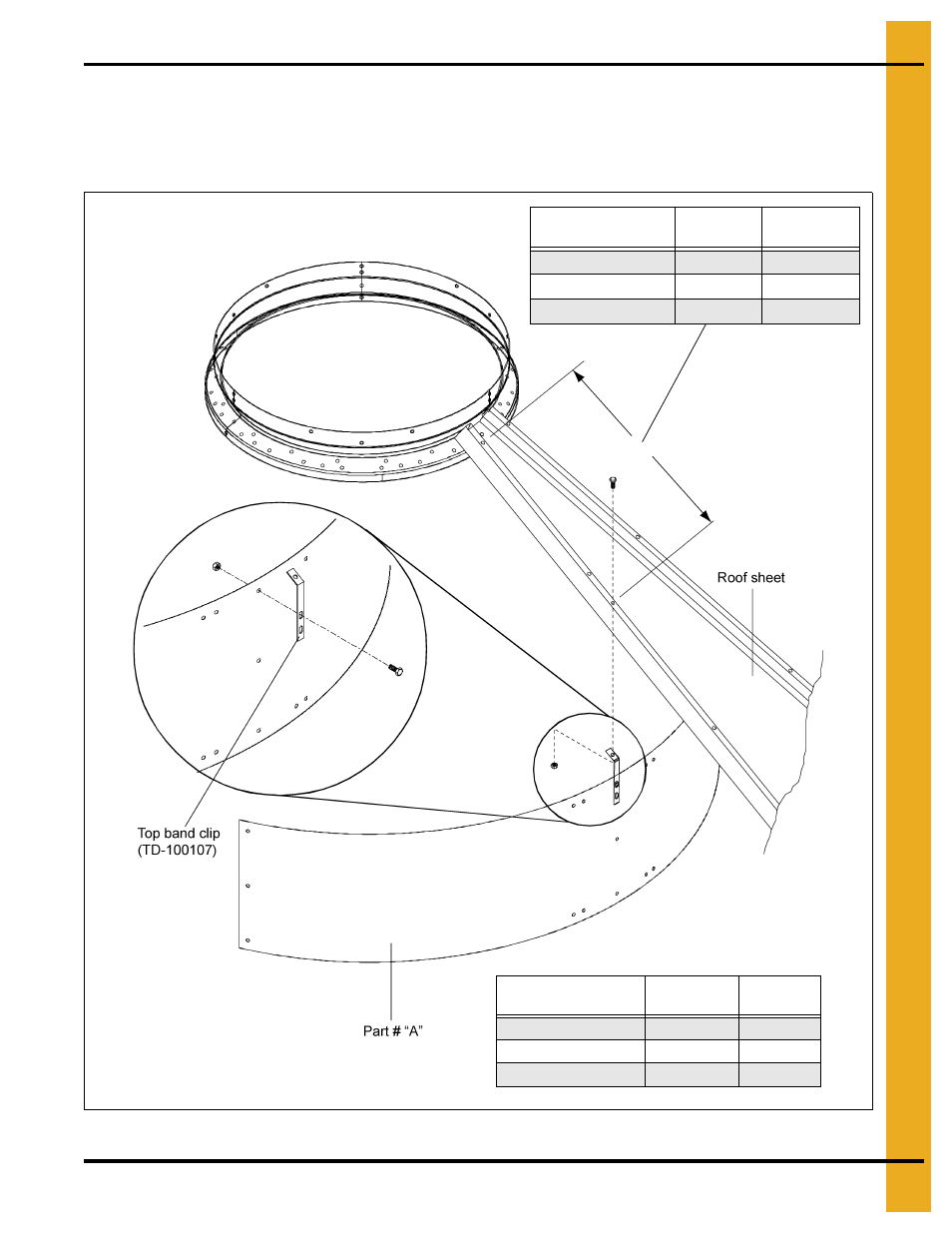

Perforated Center Band

Drill 3/8" diameter holes equally spaced as shown in

Chart

for top band clips. Attach clips using

5/16" x 3/4" bin bolts. Add perforated band sections. Note that these do not attach to the leveling bands
but hang down on the inside of the top inner leveling band.

(See Figure 9H.)

Figure 9H

Nominal Diameter

of Tank (Ft.)

# of Holes

Dimension

24'

6

25-1/4"

30'

6

22"

36'

12

30"

Nominal Diameter

of Tank (Ft.)

Part # “A”

Qty

24'

TD-100219

3

30'

TD-100545

6

36'

TD-100726

6
