8. Installation
42
PNEG-1276 Top Dry Autoflow Construction Manual 24', 30' and 36'
Eave Flashing Installation (Continued)

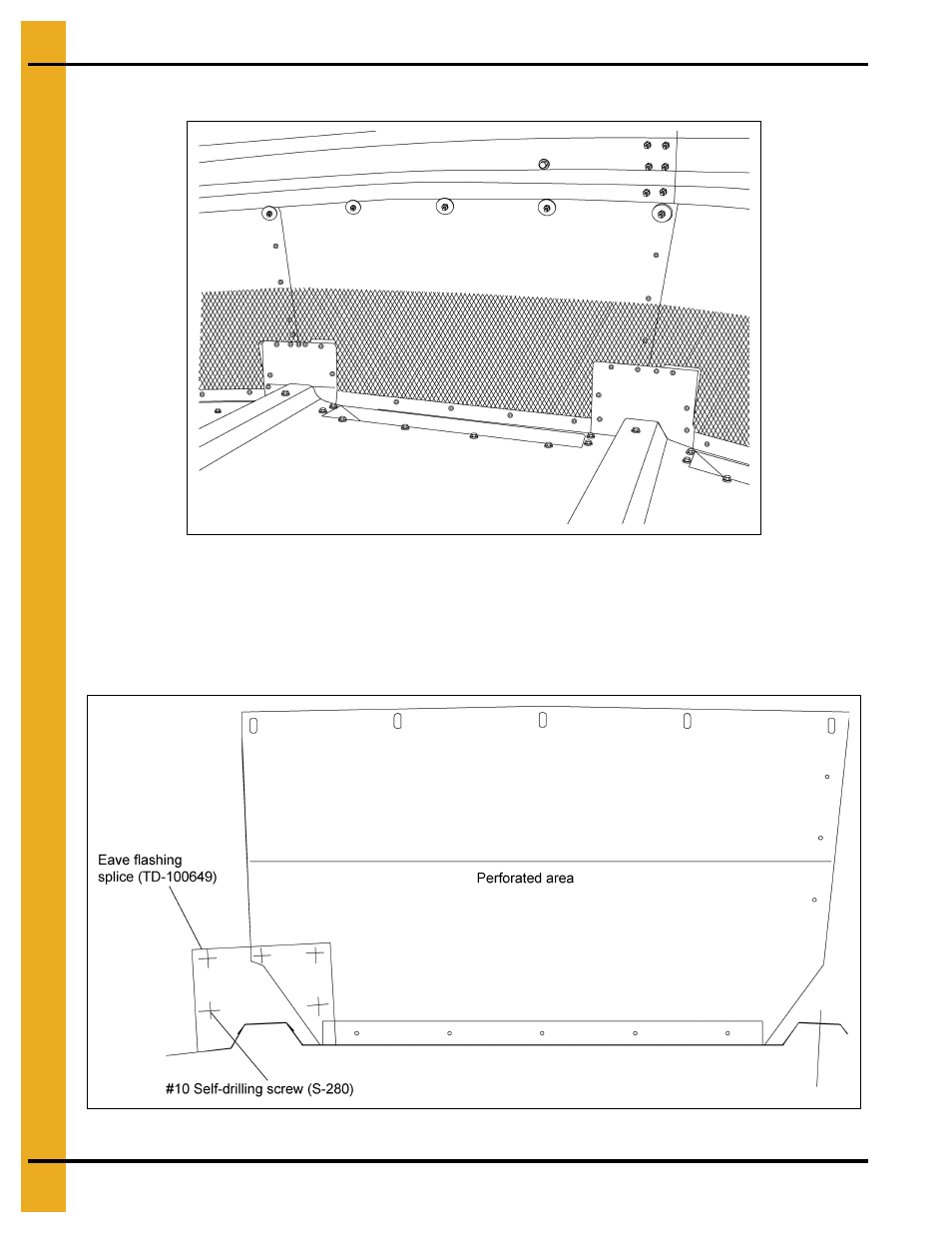

Figure 8J
Eave Flashing Splice
The flashing splice pieces can now be attached to the eave flashing to seal around the rib of the floor sheet
as shown with #10 self-drilling screws (S-280).
Figure 8K Eave Flashing (TD-101018) (As viewed from insdie the bin.)
