Installation Guide
Power Monitoring
H81xx
TM
Installation Disconnect and lock out all power sources during installation and configuration.
If making connections to the meter through more than one metallic conduit, use a bonding
plate (Veris part number AH11 or equivalent) to prevent electric shock.

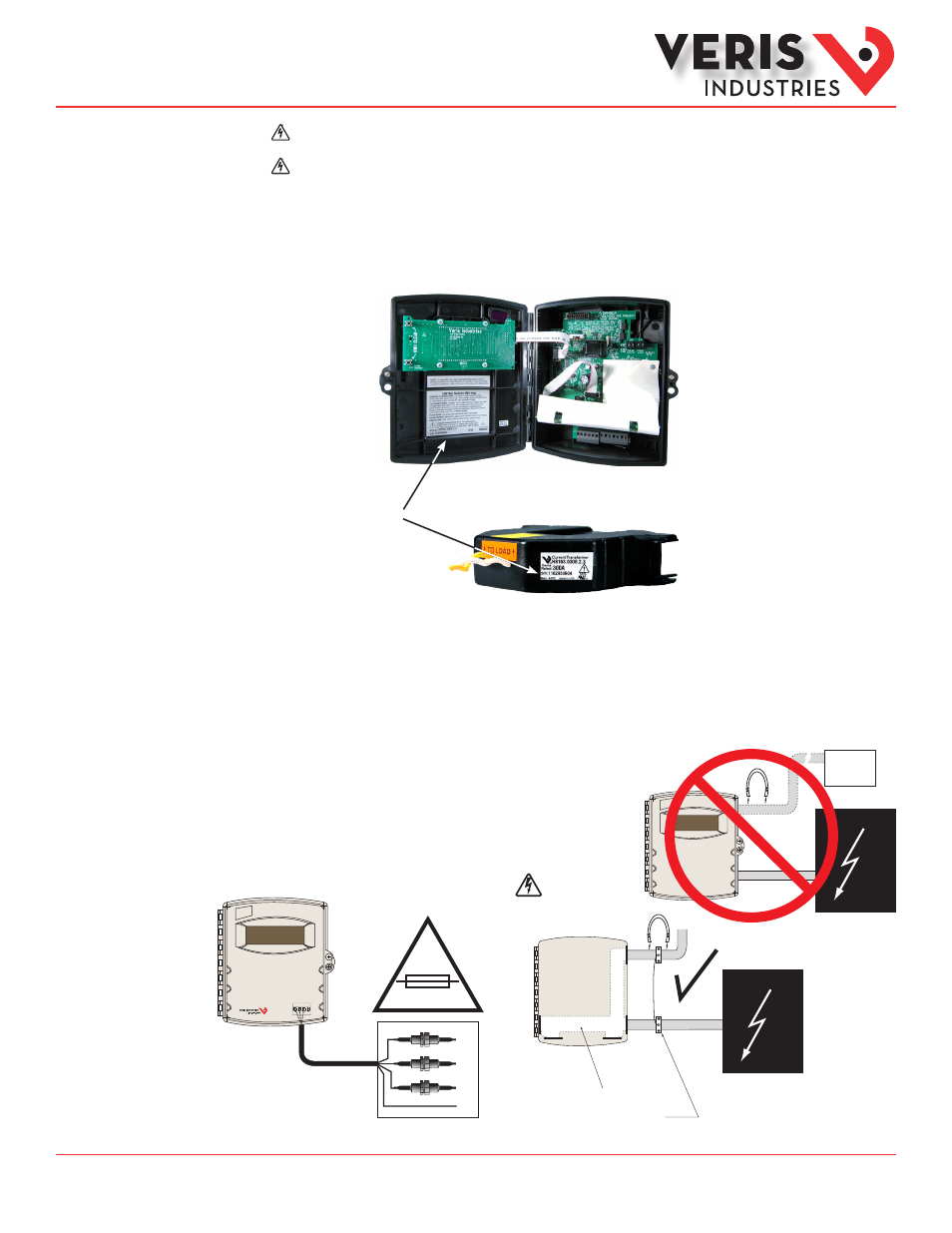

1. Verify that the serial number on the meter matches the serial numbers on the current transformers (CTs). These are calibrated
as a set, and mixing transformers with non-matching meters may damage the device when power is applied. The meter’s serial
number is printed on the label affixed to the inside of the front cover, and the CT serial number is on the CT label. If using 100 A
CTs, serial number matching does not apply.
Match serial numbers
between meters and CTs.
Serial number matching does
not apply if using 100 A CTs.
2. Mount the meter.
3. Attach the CTs to the conductors. Local code requirements may require a mounting bracket. For maximum accuracy, run the
conductor through the center of the current transformer window.
4. Optional step, per NEC and local regulations: Attach external fuses (not included with the H81xx devices). Verify that the fuse
rating is adequate for the applied voltage, with a current rating of ½ Amp (T) slow blow. Select fuses with a fault current rating
that matches the power source rating.
ØA
ØB
ØC
N
Installer Supplied Fuses
1/2A (T) SLO-BLO
Use fuses compatible with this meter:
Single phase
Veris AH02
Two phase Veris AH03
Three phase Veris AH04
VERIS INDUSTRIES 1-800-354-8556
Accessory bonding
plate or equivalent
required when more
than one metallic
conduit will be used.
Bond multiple
metallic conduit
runs with available
bonding plate
(Veris AH11 or equivalent)
CONTROLLER
Shock Hazard!
