Installation Guide
Power Monitoring
H81xx
TM
3"
(77 mm)
7.6"
(193 mm)
8.3"
(211mm)
14.8"
(375 mm)

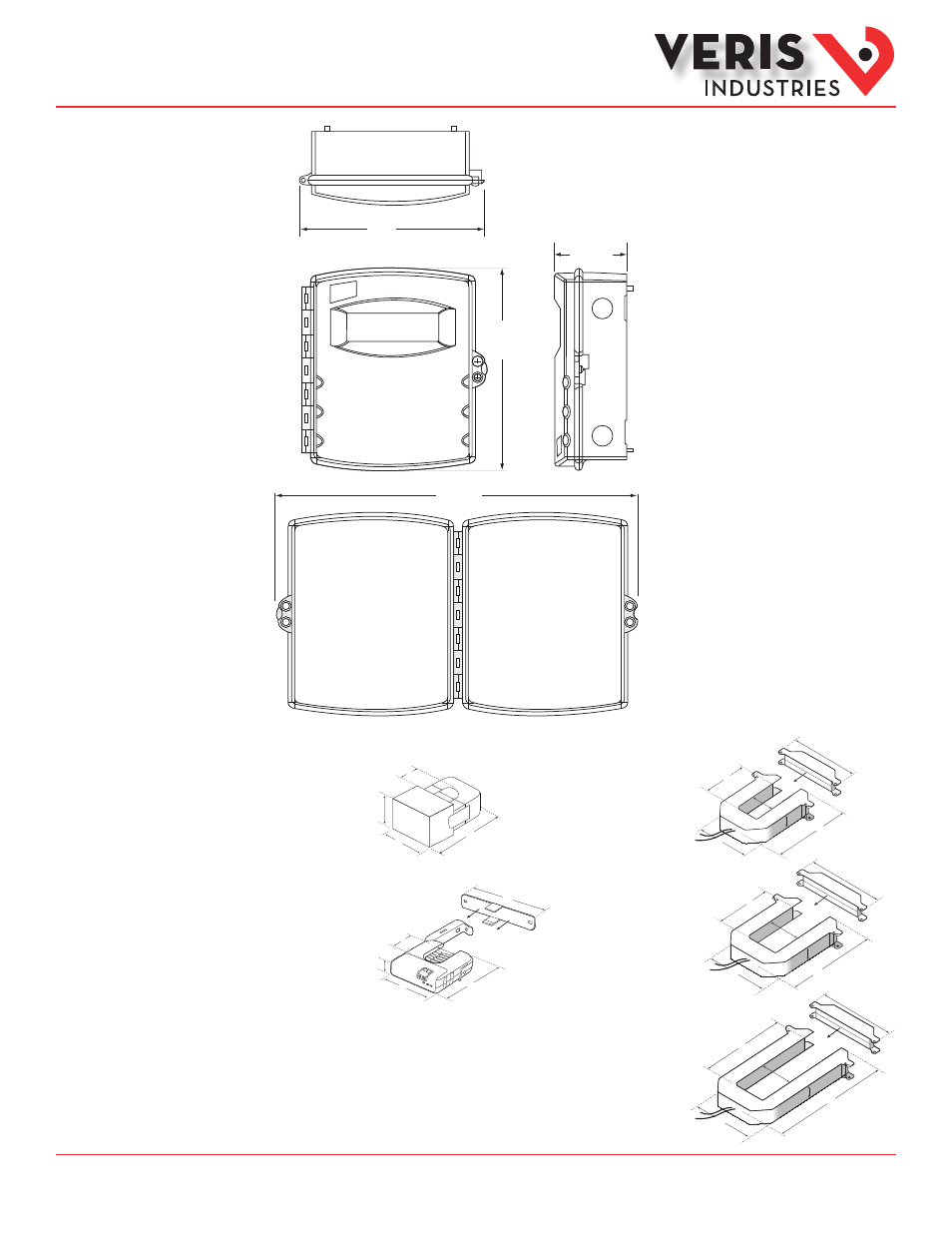

Dimensions
A
B
E
F
C D
B
E
F
C
D
A
A
B
E
C
F
D
A = 2.6" (66 mm)
B = 1.1" (28 mm)
C = 0.8" (19 mm)
D = 1" (27 mm)
E = 2.9" (74 mm)
F = 3.5" (90 mm)
MINI
200 Amp
A = 4.9" (124 mm)
B = 2.9" (73 mm)
C = 2.5" (62 mm)
D = 1.1" (29 mm)
E = 5.6" (141 mm)
F = 5.9" (150 mm)
MEDIUM
400/800 Amp
A = 3.8" (95 mm)
B = 1.5" (38 mm)
C = 1.3" (32 mm)
D = 1.1" (29 mm)
E = 4.2" (107 mm)
F = 4.8" (121 mm)
SMALL
300 Amp
A = 4.9" (124 mm)
B = 5.5" (140 mm)
C = 2.5" (62 mm)
D = 1.1" (29 mm)
E = 8.1" (207 mm)
F = 5.9" (150 mm)
LARGE
800/1600/2400 Amp
F
E
D
C
B
A
MICRO
100 Amp
A = 1.6” (40 mm)
B = 0.7” (16 mm)
C = 0.7” (16 mm)
D = 1.2” (29 mm)
E = 2.1” (53 mm)
E
A
B
C
D
