INSTALLATION GUIDE
Address Selection
Assign a unique Modbus address to each device. Set the switch block to assign a
unique address before the connecting the device to the Modbus RS-485 line. If
two devices are assigned the same address, then neither device will be able to

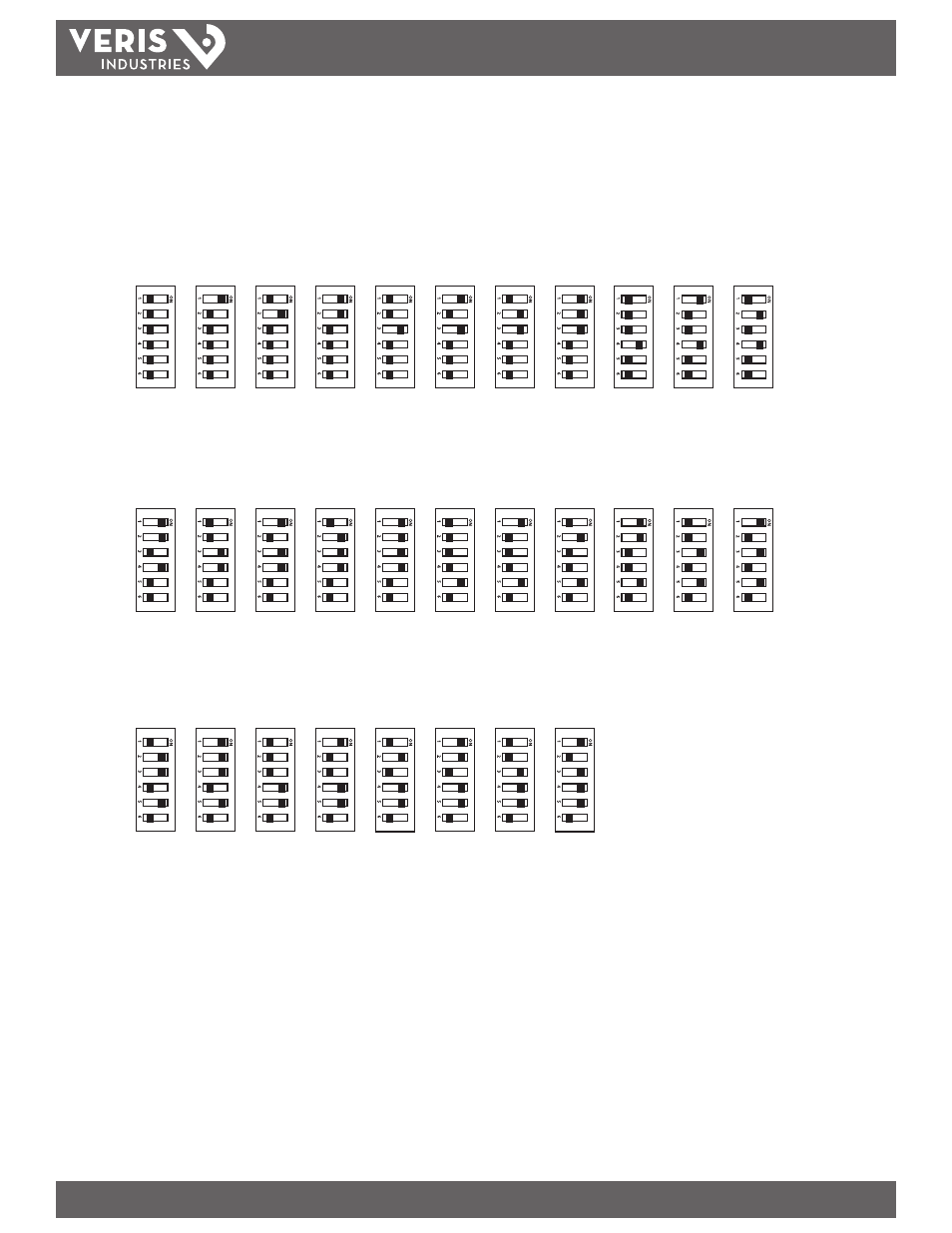

communicate. Below are all possible switch values.
BASE
ADDRESS
BASE
ADDRESS
BASE
ADDRESS
17 9 1 25 33 41 49 57 65 73 81
SWITCH
VALUE
2 1 0 3 4 5 6 7 8 9 10
89 97 105 113 121 129 137 145 153 161 169
SWITCH
VALUE
11 12 13 14 15 16 17 18 19 20 21
177 185 193 201 209 217 225 233
SWITCH
VALUE
22 23 24 25 26 27 28 29
