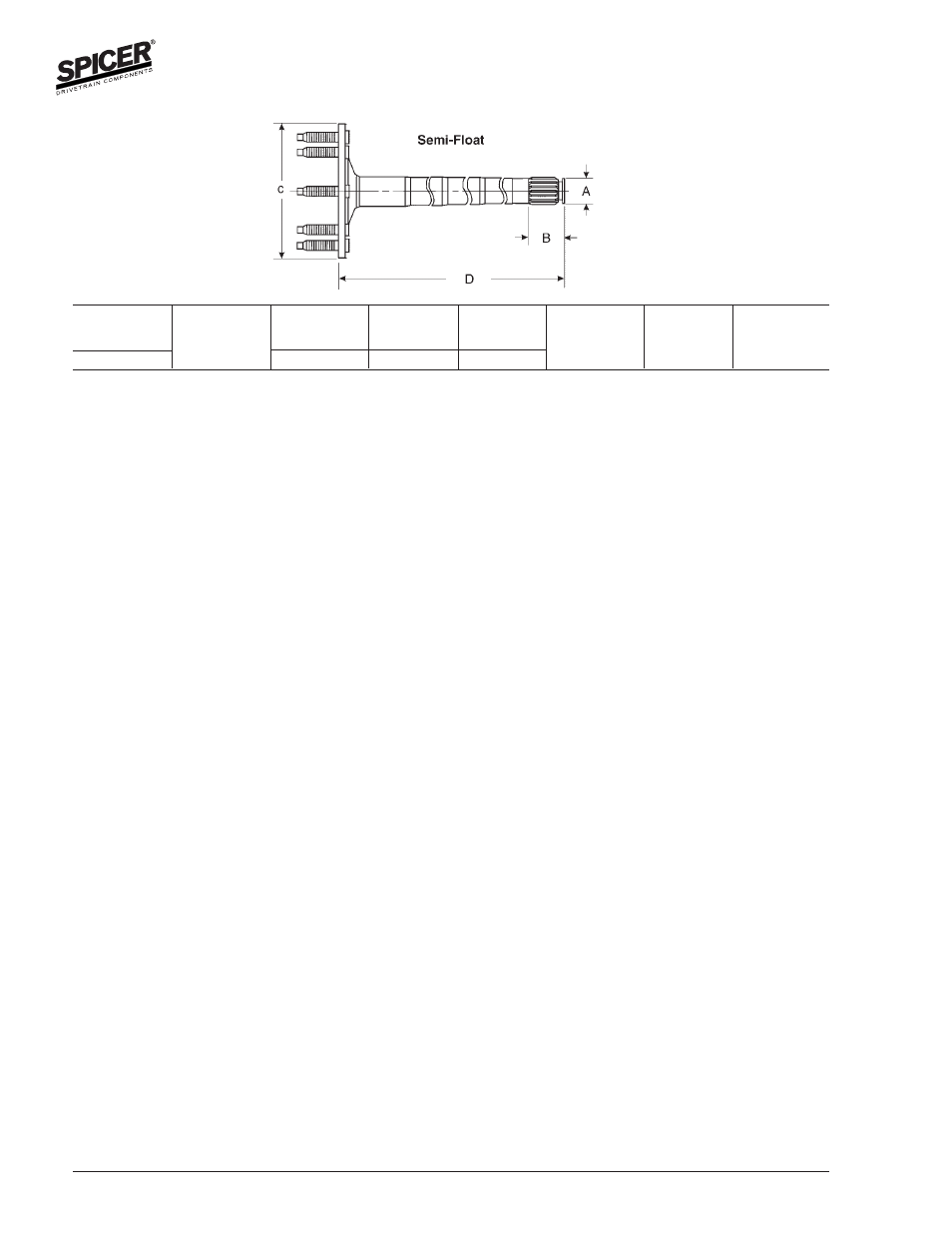

REAR AXLE SHAFTS
Dimensions & Components
XGI
86
Listed By Length
Length of
Flange Face to
End of Shaft
D
Bolt Circle
Number of
Bolts
Float
Complete
Shaft Assy.
Part Number
Spline Dia. &
Number of
Teeth
A
Flange
Diameter
C
Spline
Length
B
31.44
26762-17X
1.31 - 30
1.81
7.06
5.50
5
SEMI
31.44
706028-5X
1.31 - 30
1.81
7.06
5.50
5
SEMI
31.49
70867-13X
1.50 - 35
1.66
8.00
6.50
8
SEMI
31.49
70867-14X
1.50 - 35
1.66
8.00
6.50
8
SEMI
31.67
26762-7X
1.31 - 30
1.81
7.06
5.50
5
SEMI
31.68
28497-2X
1.31 - 30
1.81
7.06
5.50
6
SEMI
31.69
706092-2X
1.31 - 30
1.81
7.06
5.50
6
SEMI
31.74
76467-4X
1.18 - 27
2.56
6.50
5.00
5
SEMI
31.82
35455-4
1.31 - 30
1.81
7.06
5.50
5
SEMI
31.87
26821-4X
1.31 - 30
1.81
7.06
5.50
5
SEMI
31.93
70867-8X
1.50 - 35
1.66
8.00
6.50
8
SEMI
32.04
706162-1X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.33
76454-2X
1.31 - 30
2.76
6.50
5.00
5
SEMI
32.45
28497-12X
1.31 - 30
1.81
7.06
5.50
6
SEMI
32.61
70165-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.61
70386-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.61
70416-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.61
70417-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.61
706587-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.61
706647-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.61
71025-2X
1.31 - 30
1.81
7.06
5.50
5
SEMI
32.76
70867-12X
1.50 - 35
1.66
8.00
6.50
8
SEMI
33.18
706746-2X
1.50 - 35
1.66
8.00
6.50
8
SEMI
33.19
706846-2X
1.50 - 35
1.66
8.00
6.50
8
SEMI
33.19
70867-2X
1.50 - 35
1.66
8.00
6.50
8
SEMI
33.20
706846-6X
1.50 - 35
1.66
8.00
6.50
8
SEMI
33.20
70867-16X
1.50 - 35
1.66
8.00
6.50
8
SEMI
33.20
70867-6X
1.50 - 35
1.66
8.00
6.50
8
SEMI
34.08
76002-2X
1.50 - 35
1.65
7.98
6.50
8
SEMI
34.12
706746-4X
1.50 - 35
1.66
8.00
6.50
8
SEMI
34.12
706846-4X
1.50 - 35
1.66
8.00
6.50
8
SEMI
34.13
75344-2X
1.50 - 35
1.65
8.05
6.50
8
SEMI
34.14
28497-4X
1.31 - 30
1.81
7.06
5.50
6
SEMI
34.14
706092-4X
1.31 - 30
1.81
7.06
5.50
6
SEMI
34.14
70867-18X
1.50 - 35
1.66
8.00
6.50
8
SEMI
34.14
70867-4X
1.50 - 35
1.66
8.00
6.50
8
SEMI
34.47
26762-9X
1.31 - 30
1.81
7.06
5.50
5
SEMI
34.47
706028-11X
1.31 - 30
1.81
7.06
5.50
5
SEMI
34.78
26860-2X
1.50 - 35
1.81
7.06
5.50
5
SEMI
34.78
35508-2
1.50 - 35
1.81
7.06
5.50
5
SEMI
