REAR AXLE SHAFTS

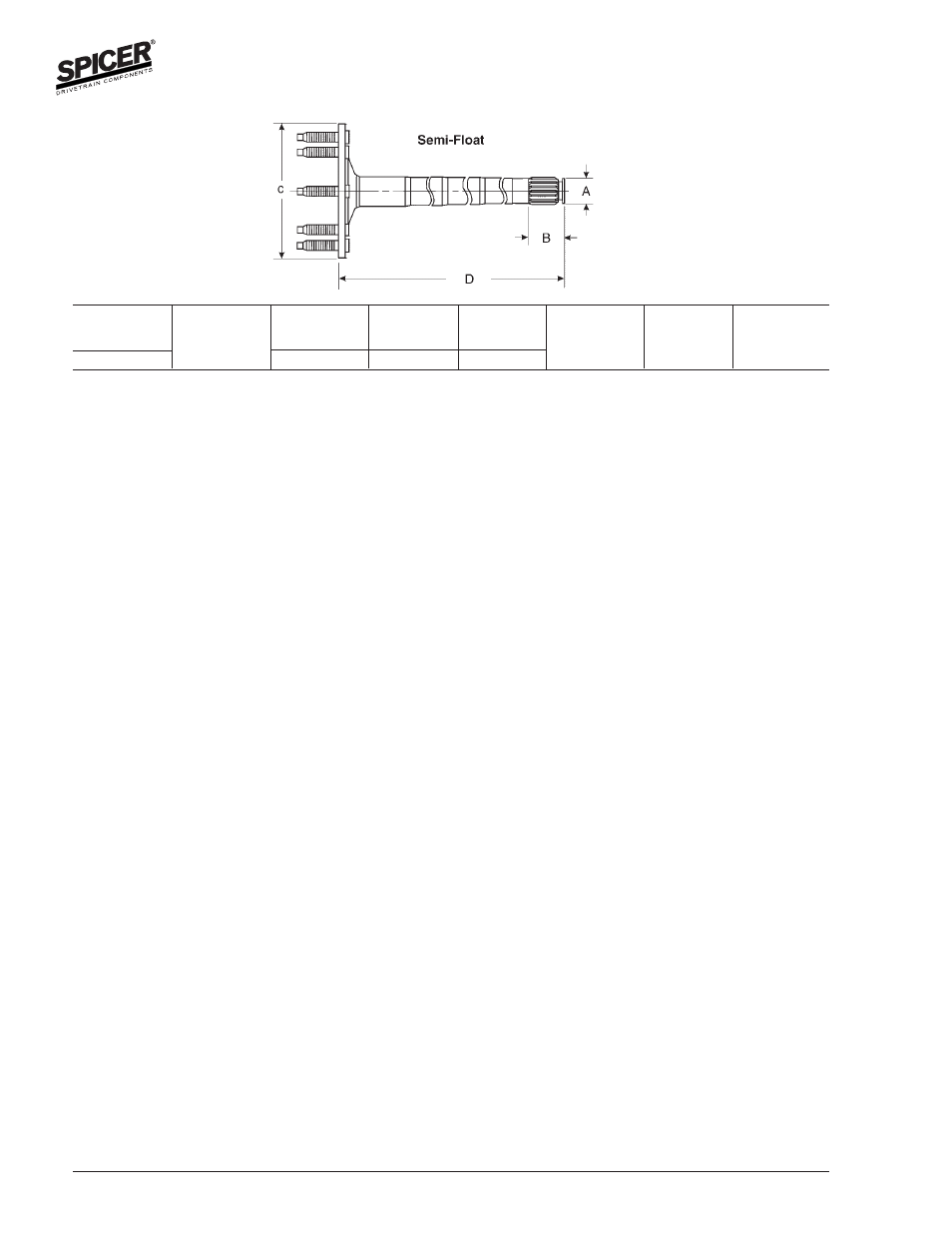

Dimensions & Components
XGI
84
Listed By Length
Length of
Flange Face to
End of Shaft
D
Bolt Circle
Number of
Bolts
Float
Complete
Shaft Assy.
Part Number
Spline Dia. &
Number of
Teeth
A
Flange
Diameter
C
Spline
Length
B
28.85 72900-1X 1.25 - 27 1.50 — 4.50 5 SEMI
28.85 72912-1X 1.18 - 27 1.50 5.94 4.50 5 SEMI
28.85 73107-1X 1.25 - 27 1.50 — 4.50 5 SEMI
28.85 73422-1X 1.18 - 27 1.50 5.94 4.50 5 SEMI
29.04 73624-1X 1.18 - 27 1.38 5.94 4.50 5 SEMI
29.04 73879-1X 1.18 - 27 1.38 5.94 4.50 5 SEMI
29.04 74356-1X 1.18 - 27 1.38 5.94 4.50 5 SEMI
29.04 74789-1X 1.18 - 27 1.38 5.94 4.50 5 SEMI
29.06 26717X 1.50 - 35 1.62 6.00 4.50 5 SEMI
29.06 26748-1X 1.50 - 35 1.62 6.00 4.50 5 SEMI
29.20 75786-2X 1.31 - 30 1.81 5.94 4.50 5 SEMI
29.71 84377-1 1.31 - 30 1.81 5.91 5.00 5 SEMI
29.21 85945-2 1.31 - 30 1.81 5.91 5.00 5 SEMI
29.22 71667-1X 1.50 - 35 1.81 7.06 5.50 6 SEMI
29.24 26762-18X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.25 706028-6X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.25 73499-2X 1.31 - 30 1.81 5.94 4.50 5 SEMI
29.26 74871-1X 1.31 - 30 1.80 5.94 4.50 5 SEMI
29.27 22006X 1.31 - 30 1.81 6.72 5.50 6 SEMI
29.28 76786-1X 1.31 - 30 1.80 5.91 4.50 5 SEMI
29.34 76454-1X 1.31 - 30 2.76 6.50 5.00 5 SEMI
29.44 28497-8X 1.31 - 30 1.81 7.06 5.50 6 SEMI
29.47 26762-8X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.53 24810X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.53 25984-1X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.54 72384-1X 1.31 - 30 1.81 5.85 4.75 5 SEMI
29.56 74555-2X 1.31 - 30 1.81 5.87 4.75 5 SEMI
29.59 23244X 1.31 - 30 1.81 6.72 5.50 6 SEMI
29.63 72499-1X 1.18 - 27 1.50 6.16 4.50 5 SEMI
29.66 25834X 1.50 - 23 1.62 6.00 4.50 5 SEMI
29.66 26749X 1.50 - 35 1.62 6.00 4.50 5 SEMI
29.70 75786-1X 1.31 - 30 1.81 5.94 4.50 5 SEMI
29.71 85945-1 1.31 - 30 1.81 5.91 5.00 5 SEMI
29.71 84377-2 1.31 - 30 1.81 5.91 5.00 5 SEMI
29.74 73499-1X 1.31 - 30 1.81 5.94 4.50 5 SEMI
29.76 24820X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.78 25984-2X 1.31 - 30 1.81 7.06 5.50 5 SEMI
29.81 28497-5X 1.31 - 30 1.81 7.06 5.50 6 SEMI
29.81 706092-5X 1.31 - 30 1.81 7.06 5.50 6 SEMI
30.09 26170X 1.31 - 30 1.81 6.72 5.50 6 SEMI
