Spicer Axle General Information - Manual (Page 74)

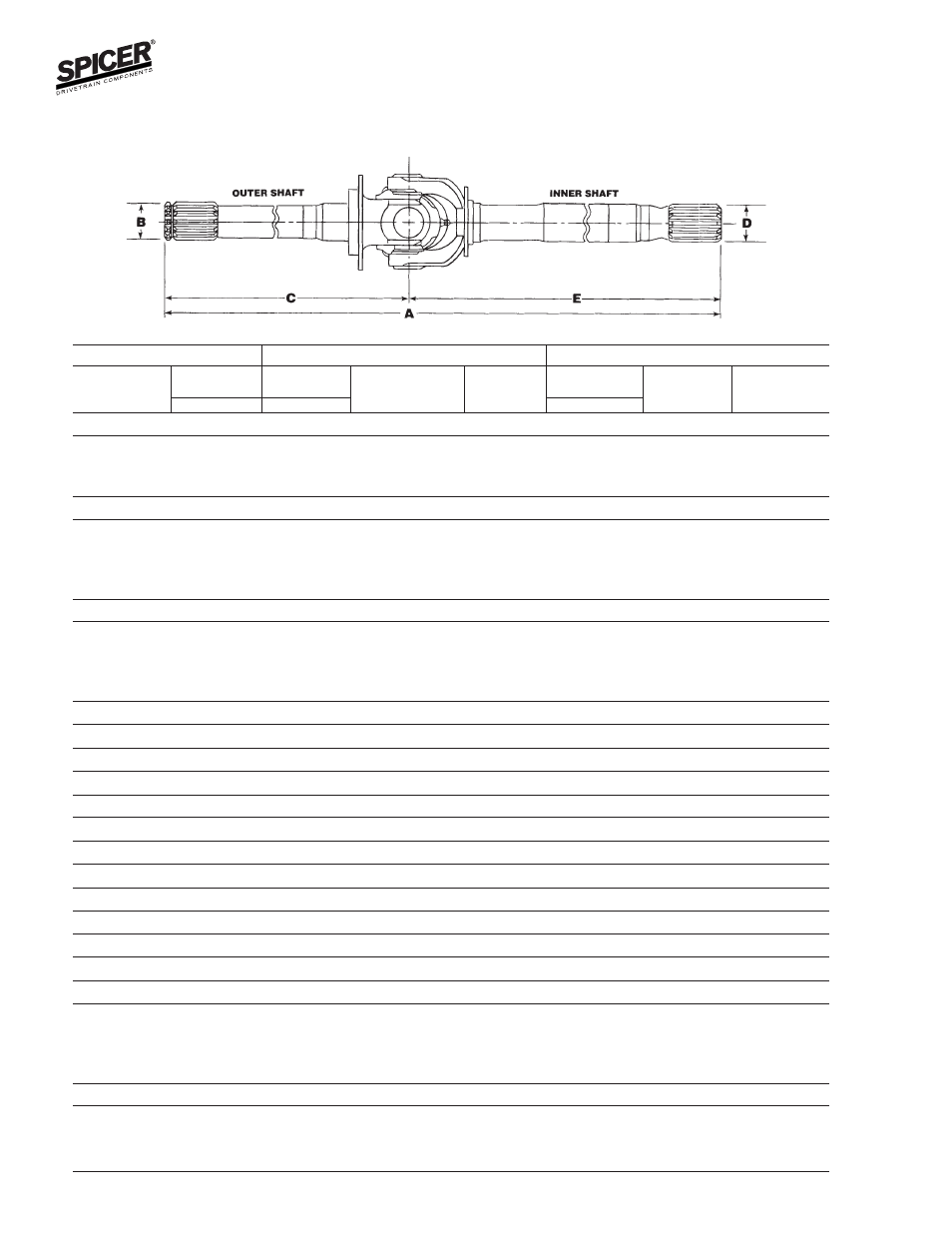

FRONT AXLE SHAFTS
Dimensions & Components
XGI
68
Listed By Complete Assembly Number
Axle Shaft Assy Outer Shaft Spindle End Inner Shaft Side Gear
Complete Overall Yoke Shaft Yoke Shaft
Assembly Length Part Slinger Part Slinger
Number Number Number
Length Length
A C E
660092 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.31 - 30
-8 26.72 9.72 620137 36364 16.62 27902-21X -
-9 44.97 9.72 620137 36364 35.25 27902-22X -
-12 24.53 9.72 620137 36364 14.81 27902-28X -
660106 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.31 - 30
-1 43.62 9.72 620160 36364 33.91 27902-3X -
-2 28.62 9.72 620160 36364 18.91 27902-4X -
-3 44.47 9.72 620160 36364 34.75 27902-35X -
-4 28.34 9.72 620160 36364 18.62 27902-31X -
660124 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.31 - 30
-1 43.62 9.72 620200 36364 33.91 27902-3X -
-2 28.62 9.72 620200 - 18.91 27902-4X 36364
-3 44.47 9.72 620200 36364 34.75 27902-35X -
-4 28.35 9.72 620200 36364 18.63 27902-31X -
660242 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.37 - 31
-1 34.81 9.92 620348 36364 24.77 660265-1 -
660243 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.31 - 30
-3 25.62 9.92 620348 36364 15.72 660266-7 -
660244 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.37 - 31
-1 33.62 9.81 620356 36364 23.63 72112-2X -
660245 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.31 - 30
-1 26.91 9.81 620356 36364 17.09 660266-8 -
660246 USES U-JOINT KIT 5-282X B = 1.31 - 30 D = 1.37 - 31
-1 34.84 10.89 620364 37308 23.94 660268-1 -
660247 USES U-JOINT KIT 5-282X B = 1.31 - 30 D = 1.31 - 30
-1 28.00 10.89 620364 37308 17.09 660269-1 -
660301 USES U-JOINT KIT 5-760X B = 1.25 - 19 D = 1.31 - 30
-1 26.95 9.93 621063 36364 17.02 660266-3 -
-2 47.16 9.93 621063 36364 37.22 660266-4 -
-3 26.04 9.93 621063 36364 16.11 27902-25X -
-4 46.43 9.93 621063 36364 36.50 27902-8X -
660426 USES U-JOINT KIT 5-806X/SPL55-3X B = 1.31 - 30 D = 1.50 - 35
-1 46.86 11.41 620085 - 35.47 620604-1 -
-2 30.11 11.41 620085 - 18.72 660182-11 -
